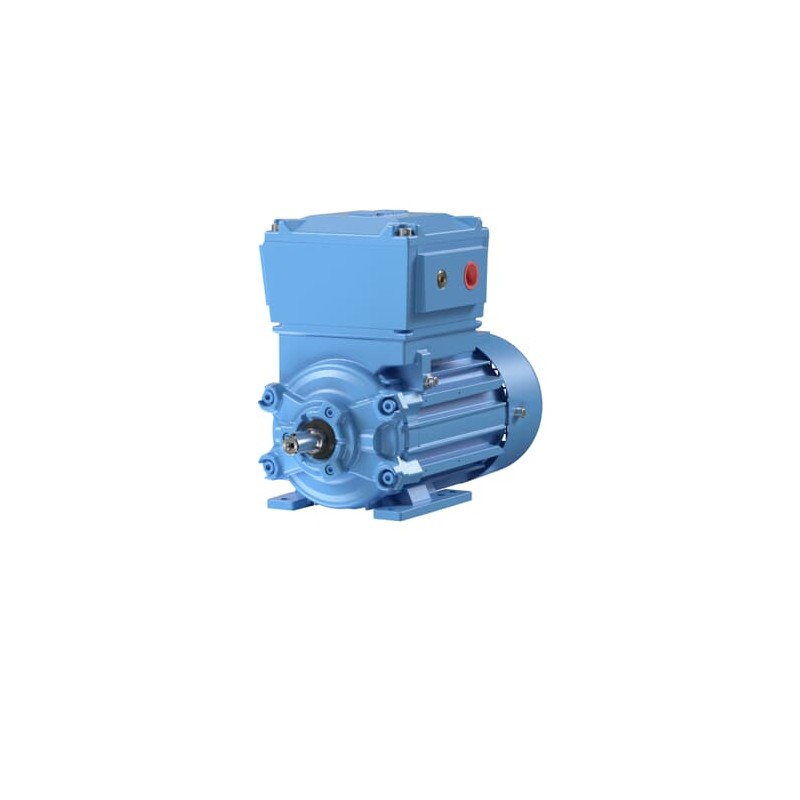

M3JP 80 MLG 3GJP082470-CSK ABB Iron Casting Engine for Process Industry 0.75 kW, 1500 rpm, 230/400 V, B14 mo..

Additional Information

• ABB Type Designation:

  M3JP 80MLG 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6205-2Z/C3


• Bearing NDE:

  6204-2Z/C3


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• EX-Protection:

  Exdb


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	T4	50 Hz	400 V	0.75 kW	1445 r/min	1.62 A	0.790	84.10 %	4.97 N·m	6.90
  D	T4	50 Hz	230 V	0.75 kW	1445 r/min	2.80 A	0.790	84.10 %	4.97 N·m	7.00
  Y	T4	50 Hz	380 V	0.75 kW	1436 r/min	1.68 A	0.810	83.30 %	5.00 N·m	6.40
  D	T4	50 Hz	220 V	0.75 kW	1436 r/min	2.90 A	0.810	83.30 %	5.00 N·m	6.40
  Y	T4	50 Hz	415 V	0.75 kW	1449 r/min	1.62 A	0.760	84.30 %	4.97 N·m	7.30
  Y	T4	60 Hz	460 V	0.75 kW	1752 r/min	1.43 A	0.770	85.40 %	4.10 N·m	8.40

• Frame Material:

  Cast Iron


• Gas Group:

  IIB


• Gross Weight:

  53kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 83.3 %
  Partial Load (75%) 84.8 %
  Partial Load (50%) 84.4 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 85.4 %
  Partial Load (75%) 84.9 %
  Partial Load (50%) 82.1 %


• IM Class:

  IMB14 IM3601


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GJP082470-BSK


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  50kg


• Product Type:

  3JP3__M3JP_IE3_Flameproof_Exd_motor


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GJP082320-CSL


• SCIP:

  297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  T4


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
