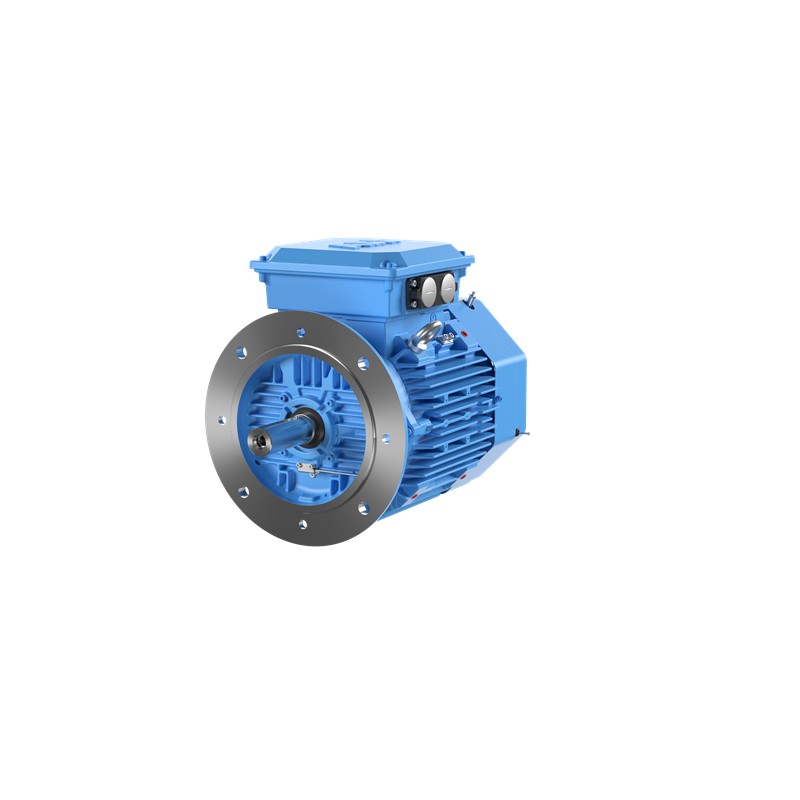

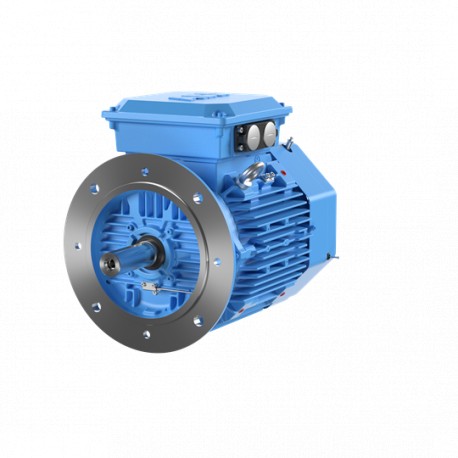

M3GP 160 MLA 3GGP164410-BDK ABB Iron Casting Engine for Process Industry 4 kW, 750 rpm, 400/690 V, B5 assemb..

Additional Information

• ABB Type Designation:

  M3GP 160MLA 8


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6309/C3


• Bearing NDE:

  6209/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	T3	50 Hz	690 V	4.00 kW	734 r/min	5.90 A	0.650	84.80 %	52.00 N·m	4.50
  D	T3	50 Hz	400 V	4.00 kW	734 r/min	10.30 A	0.650	84.80 %	52.00 N·m	4.50
  Y	T3	50 Hz	660 V	4.00 kW	731 r/min	5.90 A	0.690	84.80 %	52.20 N·m	4.20
  D	T3	50 Hz	380 V	4.00 kW	731 r/min	10.30 A	0.690	84.80 %	52.20 N·m	4.20
  D	T3	50 Hz	415 V	4.00 kW	736 r/min	10.30 A	0.630	84.80 %	51.90 N·m	4.70
  D	T3	60 Hz	460 V	4.00 kW	886 r/min	9.19 A	0.630	86.50 %	43.10 N·m	5.00

• EX-Protection:

  Exec


• Frame Material:

  Cast Iron


• Frame Size:

  160


• Frequency (f):

  50 Hz


• Gas Group:

  IIC


• Gross Weight:

  158kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 84.8 %
  Partial Load (75%) 84.7 %
  Partial Load (50%) 82.4 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 86.5 %
  Partial Load (75%) 86.1 %
  Partial Load (50%) 83.5 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  4kW, 8 Poles, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GGP164410-BDK)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  8


• Order Multiple:

  1 piece


• Output Power:

  4 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  681mm


• Product Net Height:

  421mm


• Product Net Weight:

  148kg


• Product Net Width:

  338mm


• Product Type:

  3GP3__M3GP_IE3_CI


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Short Description:

  4kW, 8P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Temperature Class Default:

  T3


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
