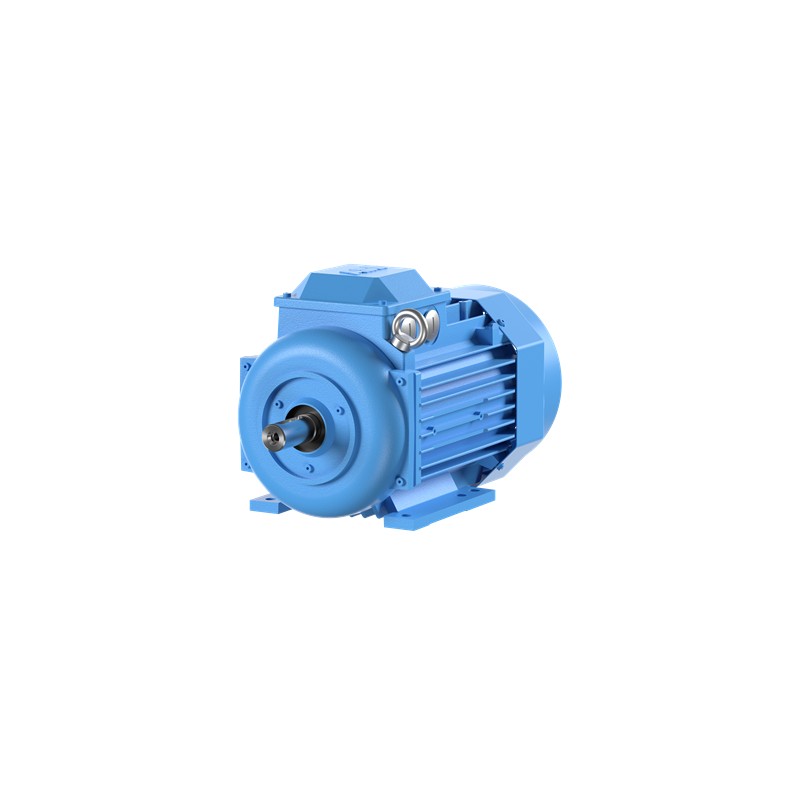

M3BP 90LD 3GBP092540-ASK ABB Cast iron motor for Process Performance 1,5kW 230/400V, IE3, 4P, mounting B3 (f..

Additional Information

• ABB Type Designation:

  M3BP 90LD 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6205-2Z/C3


• Bearing NDE:

  6204-2Z/C3


• Connection Configuration:

  Y


• Country of Origin:

  Finland (FI)
  China (CN)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	1.50 kW	1439 r/min	3.20 A	0.780	85.30 %	9.90 N·m	8.20
  D	--	50 Hz	230 V	1.50 kW	1439 r/min	5.60 A	0.780	85.30 %	9.90 N·m	8.20
  Y	--	50 Hz	380 V	1.50 kW	1432 r/min	3.30 A	0.810	85.30 %	10.00 N·m	7.30
  D	--	50 Hz	220 V	1.50 kW	1432 r/min	5.70 A	0.810	85.30 %	10.00 N·m	7.30
  Y	--	50 Hz	415 V	1.50 kW	1445 r/min	3.20 A	0.750	85.30 %	9.90 N·m	8.50
  Y	--	60 Hz	460 V	1.50 kW	1748 r/min	2.90 A	0.750	86.50 %	8.10 N·m	9.50

• Frame Material:

  Cast Iron


• Frame Size:

  90


• Frequency (f):

  50 Hz


• Gross Weight:

  37kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 85.3 %
  Partial Load (75%) 84.3 %
  Partial Load (50%) 81.8 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 86.5 %
  Partial Load (75%) 85.1 %
  Partial Load (50%) 82.0 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3BP 90LD 4


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  1.5kW, 4 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP092540-ASK)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Output Power:

  1.5 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  390mm


• Product Net Height:

  218mm


• Product Net Weight:

  34kg


• Product Net Width:

  170mm


• Product Type:

  3BP3__M3BP_IE3_CI


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GBP092540-ACK
  3GBP092520-ASL


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  1.5kW, 4P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100
  39120000


• Voltage Code:

  S


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
