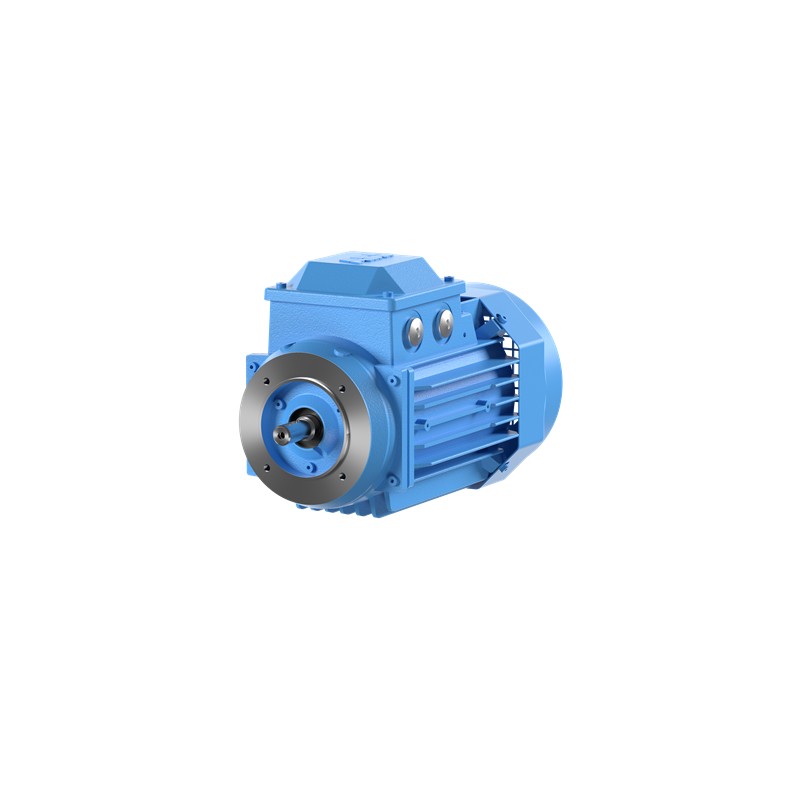

M3BP 80 MLD 3GBP082440-CDK ABB Iron Casting Engine for Process Industry 0.55 kW, 1500 rpm, 400/690 V, B14 mo..

Additional Information

• ABB Type Designation:

  M3BP 80MLD 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	0.55 kW	1439 r/min	0.68 A	0.810	80.80 %	3.60 N·m	6.30
  D	--	50 Hz	400 V	0.55 kW	1439 r/min	1.18 A	0.810	80.80 %	3.60 N·m	6.30
  Y	--	50 Hz	660 V	0.55 kW	1429 r/min	0.72 A	0.820	80.80 %	3.60 N·m	5.70
  D	--	50 Hz	380 V	0.55 kW	1429 r/min	1.24 A	0.820	80.80 %	3.60 N·m	5.70
  D	--	50 Hz	415 V	0.55 kW	1444 r/min	1.16 A	0.790	80.80 %	3.60 N·m	6.60
  D	--	60 Hz	460 V	0.55 kW	1747 r/min	1.03 A	0.790	81.10 %	3.00 N·m	7.60

• Frame Material:

  Cast Iron


• Frame Size:

  80


• Frequency (f):

  50 Hz


• Gross Weight:

  23kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 80.8 %
  Partial Load (75%) 81.7 %
  Partial Load (50%) 80.4 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 81.1 %
  Partial Load (75%) 81.2 %
  Partial Load (50%) 78.9 %


• IM Class:

  IMB14 IM3601


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3BP 80MLD 4


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  0.55kW, 4 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GBP082440-CDK)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Output Power:

  0.55 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  363mm


• Product Net Height:

  194mm


• Product Net Weight:

  20kg


• Product Net Width:

  154mm


• Product Type:

  3BP3__M3BP_IE3_CI


• Quote Only:

  No


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  0.55kW, 4P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB14/IM3601


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
