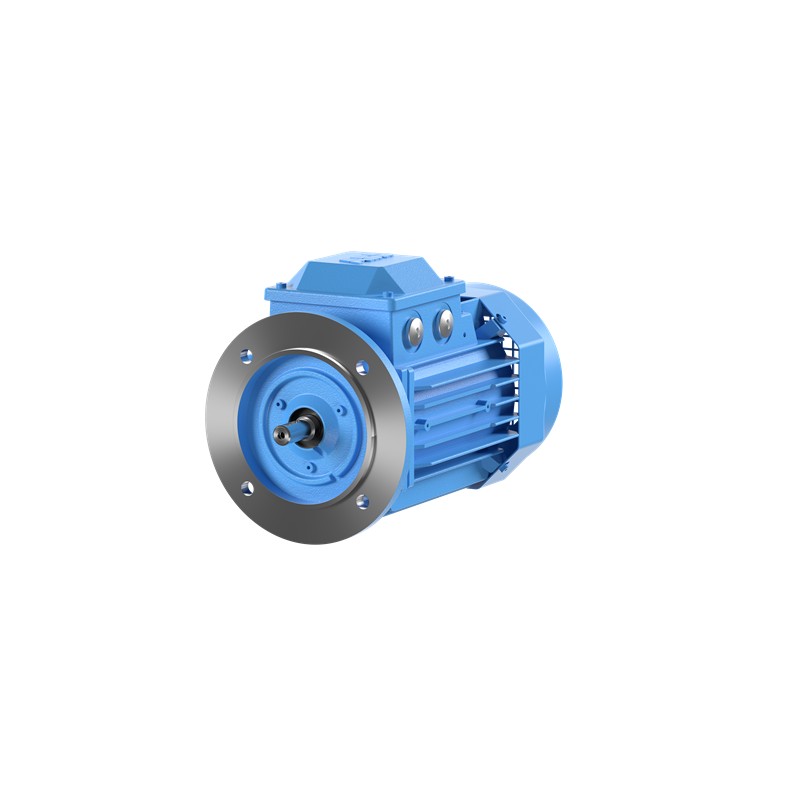

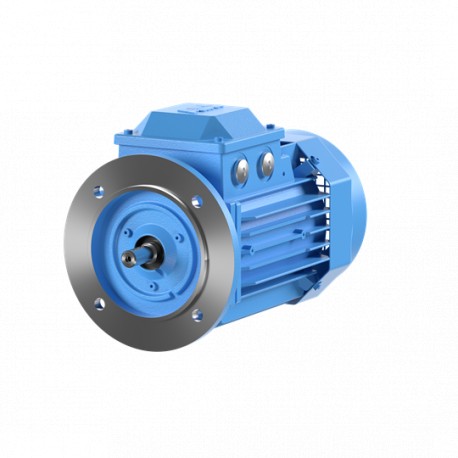

M3BP 80 MA 3GBP084101-BDB ABB Cast iron motor for Process Performance 0,18kW 400/690V, IE2, 8P, mounting B5 ..

Additional Information

• ABB Type Designation:

  M3BP 80MA 8


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  Spain (ES)
  Finland (FI)
  China (CN)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	0.18 kW	680 r/min	0.40 A	0.610	45.90 %	2.52 N·m	3.00
  D	--	50 Hz	400 V	0.18 kW	680 r/min	0.70 A	0.610	45.90 %	2.52 N·m	3.00
  D	--	60 Hz	460 V	0.18 kW	845 r/min	0.65 A	0.540	46.00 %	2.03 N·m	3.40

• Frame Material:

  Cast Iron


• Frame Size:

  80


• Frequency (f):

  50 Hz


• Gross Weight:

  18kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 45.9 %
  Partial Load (75%) 45.4 %
  Partial Load (50%) 38.6 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 46.0 %
  Partial Load (75%) 43.1 %
  Partial Load (50%) 35.1 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3BP 80MA 8


• IP Rating:

  IP55


• Lubrication:

  For life


• Made To Order:

  No


• Medium Description:

  0.18kW, 8 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP084101-BDB)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  8


• Output Power:

  0.18 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  321mm


• Product Net Height:

  195mm


• Product Net Weight:

  15kg


• Product Net Width:

  157mm


• Product Type:

  3BP2__M3BP_IE2_CI


• Quote Only:

  No


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Service Factor:

  1.00


• Short Description:

  0.18kW, 8P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
