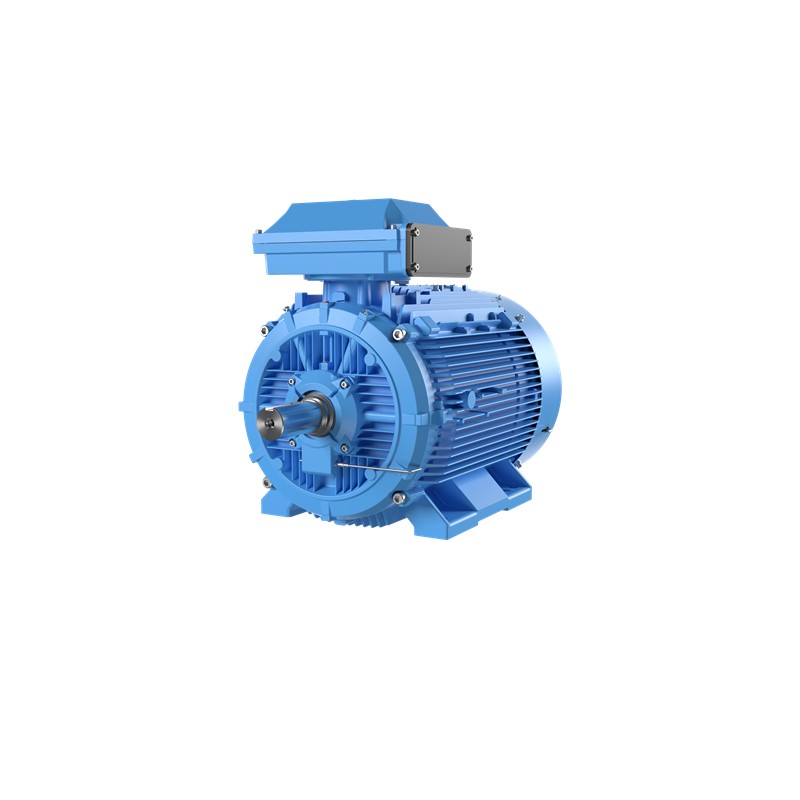

M3BP 280 SMB 3GBP281220-ADL ABB Cast iron motor for Process Performance 75kW 400/690V, IE3, 2P, mounting B3 ..

Additional Information

• ABB Type Designation:

  M3BP 280SMB 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6316/C3


• Bearing NDE:

  6316/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  China (CN)
  India (IN)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	75.00 kW	2978 r/min	76.60 A	0.880	94.70 %	240.00 N·m	7.60
  D	--	50 Hz	400 V	75.00 kW	2977 r/min	131.00 A	0.880	94.70 %	240.00 N·m	7.60
  D	--	50 Hz	415 V	75.00 kW	2980 r/min	128.00 A	0.860	94.70 %	240.00 N·m	8.30

• Frame Material:

  Cast Iron


• Frame Size:

  280


• Frequency (f):

  50 Hz


• Gross Weight:

  685kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 94.7 %
  Partial Load (75%) 94.2 %
  Partial Load (50%) 92.8 %


• IE Class Data (60 Hz):

  IE Class IE1
  Full Load (100%) 93.0 %
  Partial Load (75%) 92.4 %
  Partial Load (50%) 90.5 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3BP 280SMB 2


• IP Rating:

  IP55


• Made To Order:

  No


• Medium Description:

  75kW, 2 Poles, Frame Size 280, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP281220-ADL)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  75 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  1088mm


• Product Net Height:

  762mm


• Product Net Weight:

  665kg


• Product Net Width:

  530mm


• Product Type:

  5BP3 M3BP CI


• Quote Only:

  No


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Service Factor:

  1.00


• Short Description:

  75kW, 2P, Frame Size 280, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany
  Shanghai, China


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
