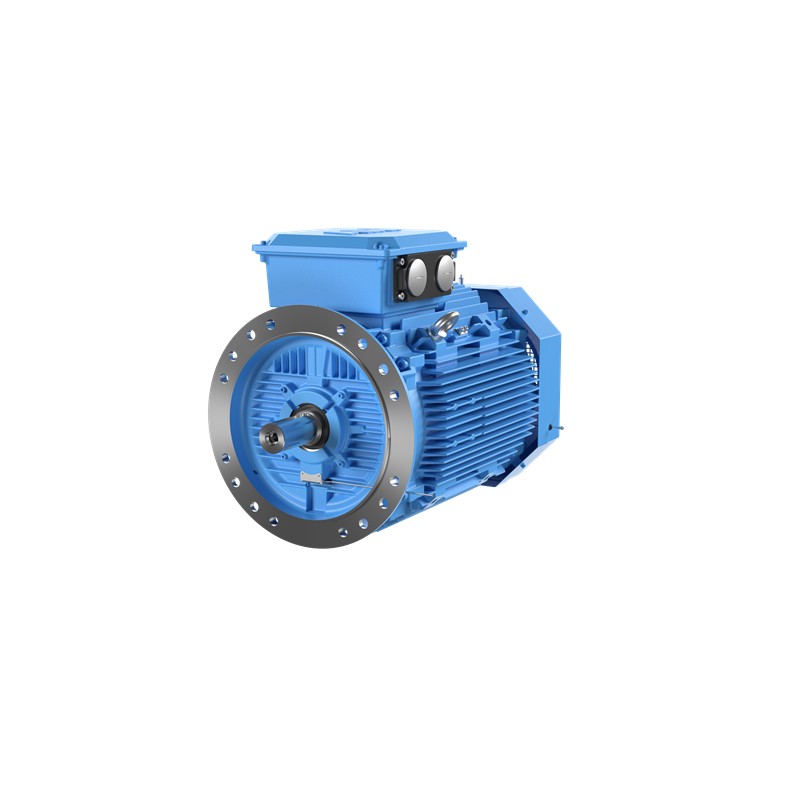

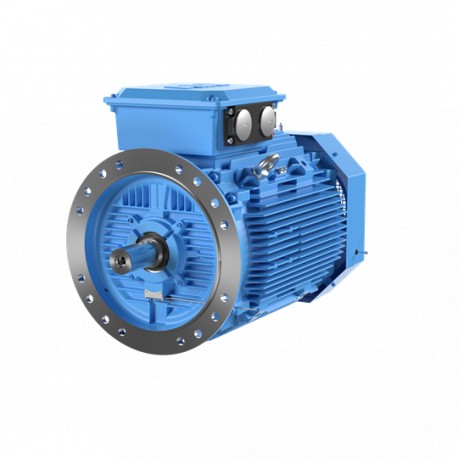

M3BP 200 MLA 2 3GBP201410-BDL ABB Cast iron motor for Process Performance 30kW 400/690V, IE3, 2P, mounting B..

Additional Information

• ABB Type Designation:

  M3BP 200MLA 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6312/C3


• Bearing NDE:

  6210/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015230


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	30.00 kW	2956 r/min	29.90 A	0.900	93.30 %	96.90 N·m	7.70
  D	--	50 Hz	400 V	30.00 kW	2956 r/min	51.60 A	0.900	93.30 %	96.90 N·m	7.70
  D	--	50 Hz	415 V	30.00 kW	2960 r/min	49.70 A	0.900	93.30 %	96.90 N·m	8.30
  D	--	60 Hz	440 V	30.00 kW	3557 r/min	47.00 A	0.900	92.30 %	80.50 N·m	7.90
  D	--	60 Hz	460 V	30.00 kW	3562 r/min	44.90 A	0.900	92.30 %	80.40 N·m	8.70

• Frame Material:

  Cast Iron


• Frame Size:

  200


• Frequency (f):

  50 Hz


• Gross Weight:

  273kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 93.3 %
  Partial Load (75%) 93.6 %
  Partial Load (50%) 92.8 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 92.3 %
  Partial Load (75%) 92.0 %
  Partial Load (50%) 90.4 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3BP 200MLA 2


• IP Rating:

  IP55


• Made To Order:

  No


• Medium Description:

  30kW, 2 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP201410-BDL)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  30 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  821mm


• Product Net Height:

  528mm


• Product Net Weight:

  263kg


• Product Net Width:

  378mm


• Product Type:

  5BP3 M3BP CI


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Short Description:

  30kW, 2P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Standards:

  IEC 60034-1


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100
  39120000


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
