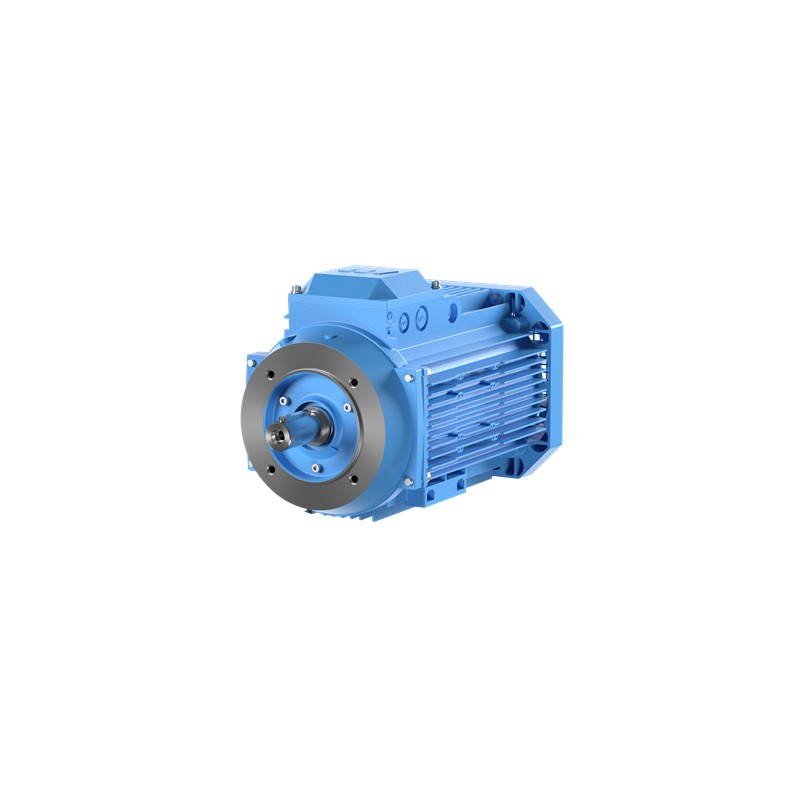

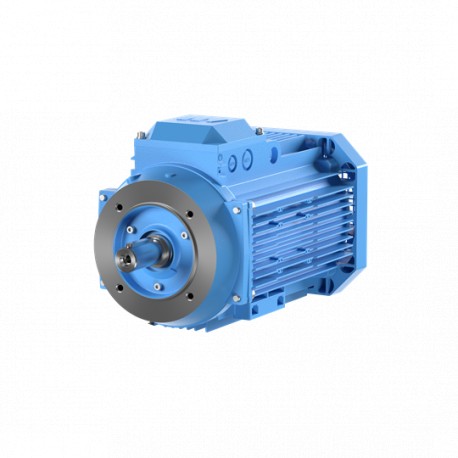

M3AA 90S 3GAA094100-CDE ABB Aluminium motor for Process Performance 0,37kW 400/690V, IE2, 8P, mounting B14 (..

Additional Information

• ABB Type Designation:

  M3AA 90S 8


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6205-2Z/C3


• Bearing NDE:

  6204-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	0.37 kW	695 r/min	0.95 A	0.570	56.10 %	5.08 N·m	2.70
  D	--	50 Hz	400 V	0.37 kW	695 r/min	1.65 A	0.570	56.10 %	5.08 N·m	2.70
  D	--	60 Hz	460 V	0.37 kW	851 r/min	1.56 A	0.500	58.00 %	4.15 N·m	3.00

• Frame Material:

  Aluminum


• Frame Size:

  90


• Frequency (f):

  50 Hz


• Gross Weight:

  16kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 56.1 %
  Partial Load (75%) 55.3 %
  Partial Load (50%) 48.6 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 58.0 %
  Partial Load (75%) 55.6 %
  Partial Load (50%) 47.7 %


• IM Class:

  IMB14 IM3601


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 90S 8


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  0.37kW, 8 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GAA094100-CDE)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  8


• Order Multiple:

  1 piece


• Output Power:

  0.37 kW


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA094100-BDE


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  309.5mm


• Product Net Height:

  217mm


• Product Net Weight:

  13kg


• Product Net Width:

  177mm


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA094061-CDA


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  0.37kW, 8P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB14/IM3601


• Stocked At (Warehouses):

  Menden, Germany
  Shanghai, China


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
