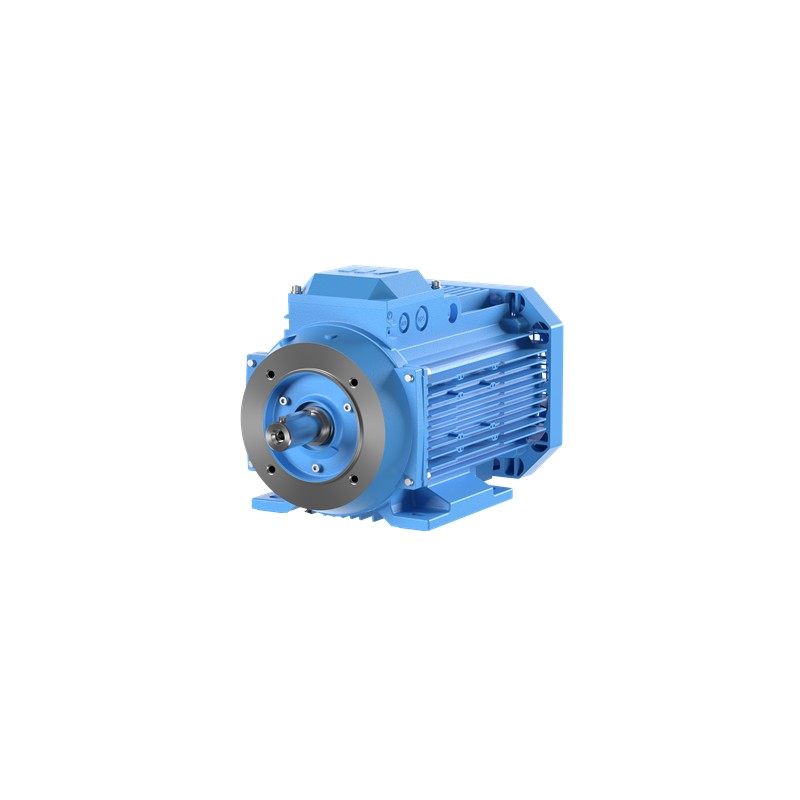

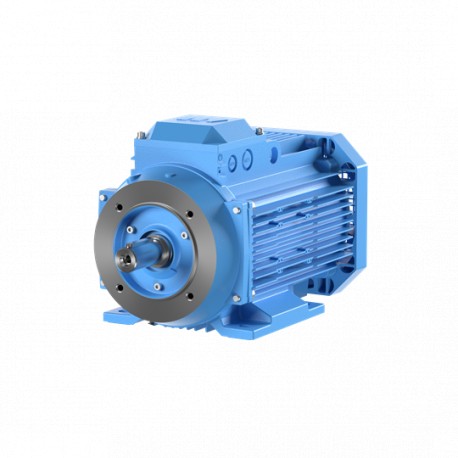

M3AA 80MC 3GAA081330-CSK ABB Aluminium motor for Process Performance 1,1kW 230/400V, IE3, 2P, mounting B14 (..

Additional Information

• ABB Type Designation:

  M3AA 80MC 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Country of Origin:

  Finland (FI)
  Romania (RO)
  Poland (PL)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	1.10 kW	2883 r/min	2.30 A	0.810	83.90 %	3.60 N·m	7.90
  D	--	50 Hz	230 V	1.10 kW	2883 r/min	4.00 A	0.810	83.90 %	3.60 N·m	7.90
  Y	--	50 Hz	380 V	1.10 kW	2868 r/min	2.30 A	0.840	83.70 %	3.60 N·m	7.90
  D	--	50 Hz	220 V	1.10 kW	2868 r/min	4.10 A	0.840	83.70 %	3.60 N·m	7.90
  Y	--	50 Hz	415 V	1.10 kW	2895 r/min	2.30 A	0.780	84.10 %	3.60 N·m	8.20
  Y	--	60 Hz	460 V	1.10 kW	3500 r/min	2.00 A	0.780	84.00 %	3.00 N·m	9.90

• Gross Weight:

  13.5kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 83.7 %
  Partial Load (75%) 83.9 %
  Partial Load (50%) 83.1 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 84.0 %
  Partial Load (75%) 83.0 %
  Partial Load (50%) 80.2 %


• IM Class:

  IMB14 IM3601


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 80MC 2


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA081330-BSK


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  10.5kg


• Product Type:

  3AA3__M3AA_IE3_AA


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Central Stock Europe


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Voltage Code:

  S


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
