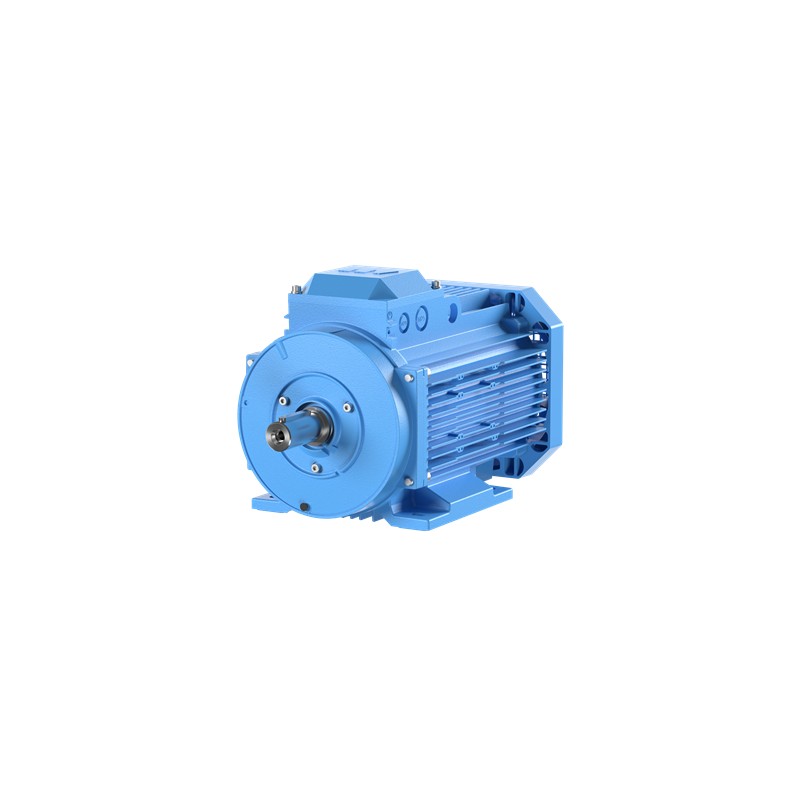

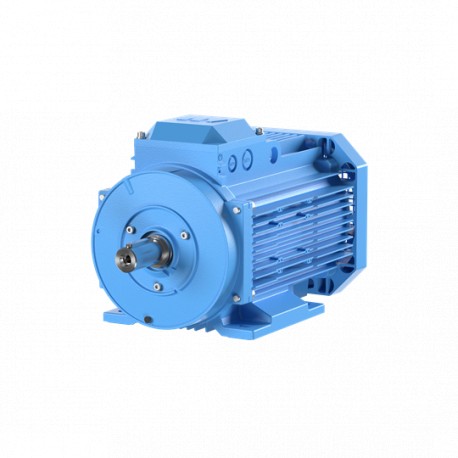

M3AA 80MC 3GAA081330-ASK ABB Aluminium motor for Process Performance 1,1kW 230/400V, IE3, 2P, mounting B3 (f..

Additional Information

• ABB Type Designation:

  M3AA 80MC 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Connection Configuration:

  Y


• Country of Origin:

  China (CN)
  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	1.10 kW	2883 r/min	2.34 A	0.810	82.70 %	3.60 N·m	7.10
  D	--	50 Hz	230 V	1.10 kW	2883 r/min	4.00 A	0.810	82.70 %	3.60 N·m	7.90
  Y	--	50 Hz	380 V	1.10 kW	2868 r/min	2.30 A	0.840	82.70 %	3.60 N·m	7.90
  D	--	50 Hz	220 V	1.10 kW	2868 r/min	4.10 A	0.840	83.70 %	3.60 N·m	7.90
  Y	--	50 Hz	415 V	1.10 kW	2895 r/min	2.30 A	0.780	82.70 %	3.60 N·m	8.20
  Y	--	60 Hz	460 V	1.10 kW	3500 r/min	2.00 A	0.780	84.00 %	3.00 N·m	9.90

• Frame Material:

  Aluminum


• Frame Size:

  80


• Frequency (f):

  50 Hz


• Gross Weight:

  13.5kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 82.7 %
  Partial Load (75%) 81.9 %
  Partial Load (50%) 79.5 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 84.0 %
  Partial Load (75%) 83.0 %
  Partial Load (50%) 80.2 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 80MC 2


• IP Rating:

  IP55


• Made To Order:

  No


• Medium Description:

  1.1kW, 2 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA081330-ASK)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  1.1 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  265.5mm


• Product Net Height:

  193.5mm


• Product Net Weight:

  10.5kg


• Product Net Width:

  154mm


• Product Type:

  3AA3__M3AA_IE3_AA


• Quote Only:

  No


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  1.1kW, 2P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany
  Sant Quirze del Vallés - BCN, Spain
  Vittuone, Italy


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
