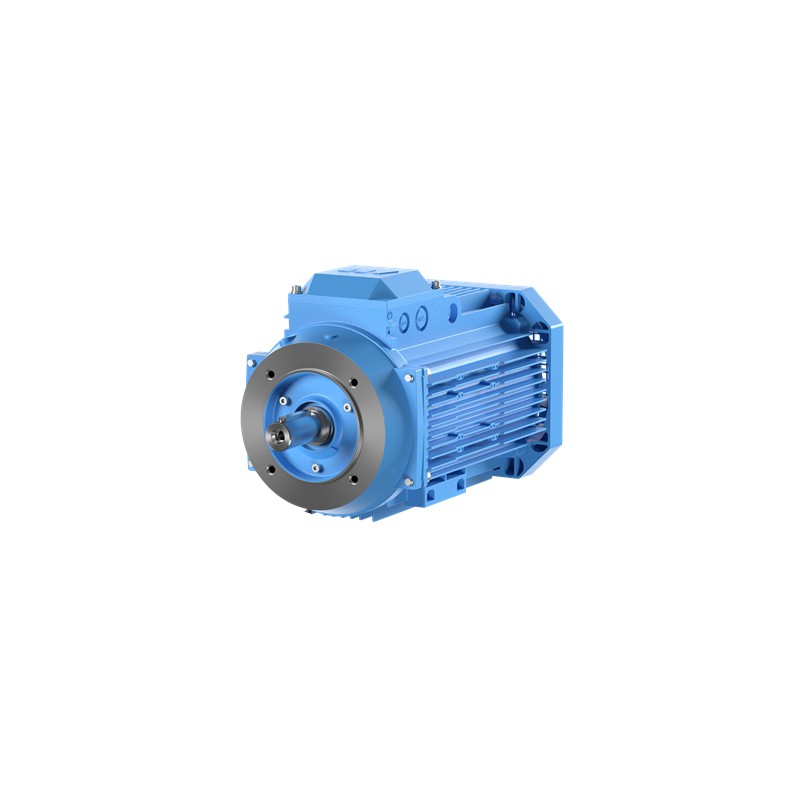

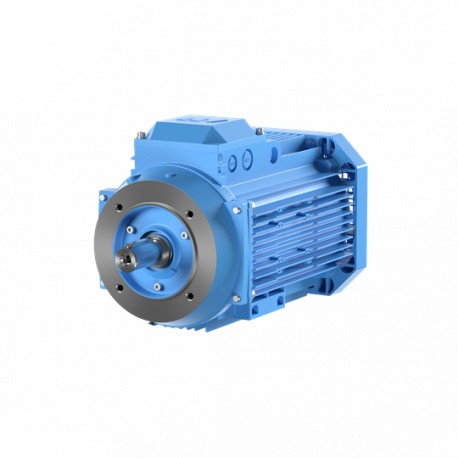

M3AA 80 B 2 3GAA081612-CSJ ABB Aluminium motor for Process Performance 0,75kW 230/400V, IE3, 2P, mounting B1..

Additional Information

• ABB Type Designation:

  M3AA 80B 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Connection Configuration:

  Y


• Country of Origin:

  China (CN)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	0.75 kW	2885 r/min	1.70 A	0.760	80.70 %	2.50 N·m	7.50
  D	--	50 Hz	230 V	0.75 kW	2885 r/min	2.94 A	0.760	80.70 %	2.50 N·m	7.50
  Y	--	50 Hz	415 V	0.75 kW	2894 r/min	1.72 A	0.760	80.70 %	2.49 N·m	7.60

• Frame Material:

  Aluminum


• Frame Size:

  80


• Frequency (f):

  50 Hz


• Gross Weight:

  12.4kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 80.7 %
  Partial Load (75%) 79.5 %
  Partial Load (50%) 74.6 %


• IM Class:

  IMB14 IM3601


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 80B 2


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  0.75kW, 2 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GAA081612-CSJ)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  0.75 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  265.5mm


• Product Net Height:

  193.5mm


• Product Net Weight:

  9.4kg


• Product Net Width:

  154mm


• Product Type:

  3AA0__M3AA_AA


• Quote Only:

  No


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  0.75kW, 2P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB14/IM3601


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Stocked At (Warehouses):

  Menden, Germany
  Vittuone, Italy


• Temperature Class Default:

  --


• Temperature Rise:

  80 K


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
