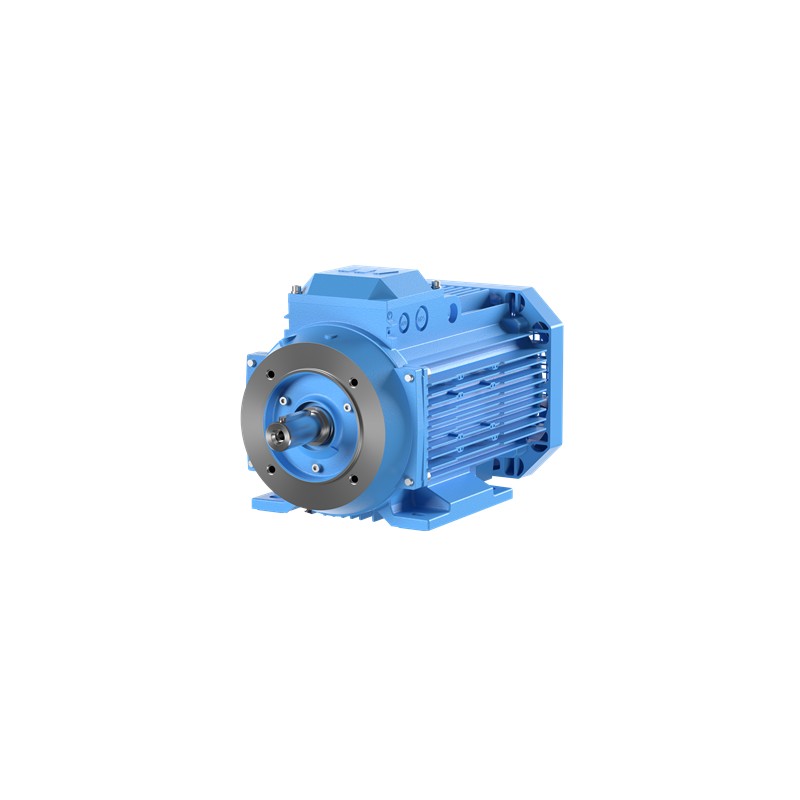

M3AA 80A 3GAA082311-ADE ABB Aluminium motor for Process Performance 0,55kW 400/690V, IE2, 4P, mounting B3 (f..

Additional Information

• ABB Type Designation:

  M3AA 80A 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Country of Origin:

  Italy (IT)
  China (CN)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  D	--	50 Hz	400 V	0.55 kW	1406 r/min	1.29 A	0.780	77.10 %	3.73 N·m	5.40
  D	--	60 Hz	460 V	0.55 kW	1721 r/min	1.15 A	0.740	75.50 %	3.05 N·m	6.50

• Frame Material:

  Aluminum


• Gross Weight:

  12.6kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 77.1 %
  Partial Load (75%) 78.6 %
  Partial Load (50%) 76.8 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 75.5 %
  Partial Load (75%) 75.6 %
  Partial Load (50%) 72.2 %


• IM Class:

  IMB3 IM1001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 80A 4


• Lubrication:

  For life


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Moment of Inertia:

  0.00126 kg/m³


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  1 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  9.6kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Sound dB (A):

  50 dB(A)


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Stocked At (Warehouses):

  Menden, Germany
  Shanghai, China


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
