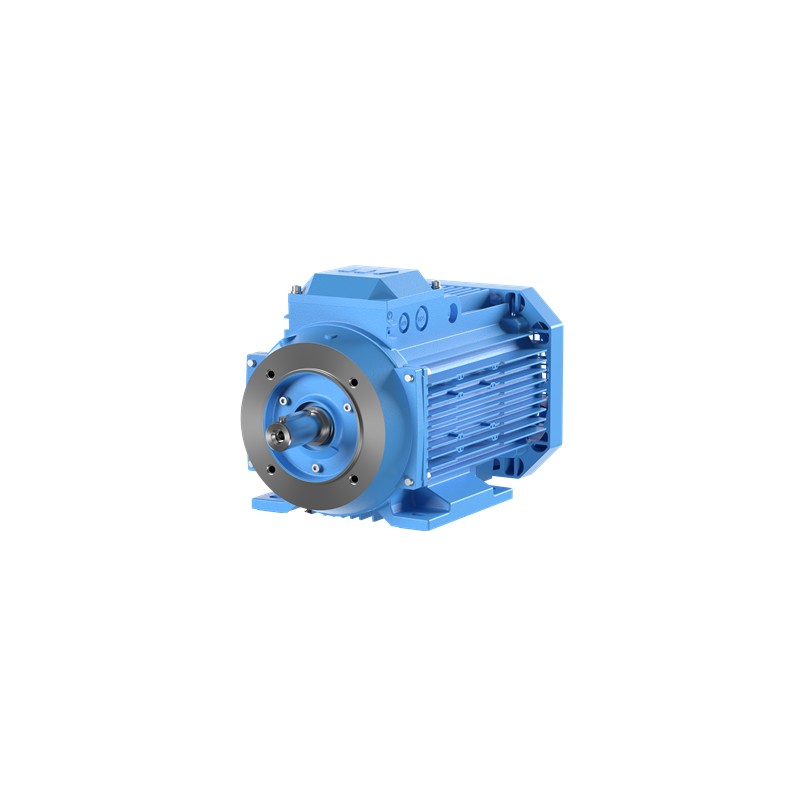

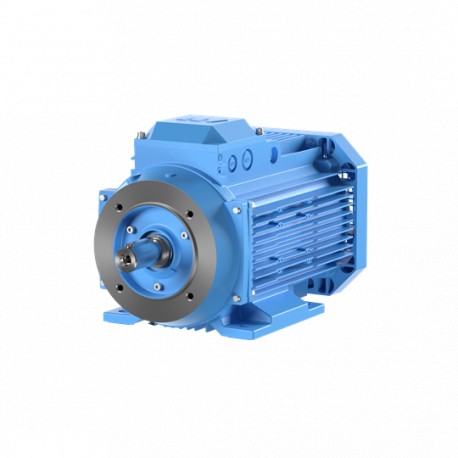

M3AA 71B 3GAA072312-BSE ABB Aluminium motor for Process Performance 0,37kW 230/400V, IE2, 4P, mounting B5 (l..
M3AA 71B 4
3GAA072312-BSE
ABB
Aluminium motor for Process Performance 0,37kW 230/400V, IE2, 4P, mounting B5 (large flange)
Aluminium Motor for Process Industry 0.37 kW, 1500 rpm, 230/400 V, B5 mount, IE2 efficiency
IE2 High Efficiency Aluminum Motors, 0.37 kW, 400 V (3GAA072312-BSE)
Cast iron M2BA and aluminium M3AA motors > M3AA IE2
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Often bought together
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| ABB Type Designation | M3AA 71B 4 |
| Invoice Description | M3AA 71B 4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA2__M3AA_IE2_AA |
| Country or Territory of Origin | China |
| Customs Tariff Number | 85015100 |
| Stocked At (Warehouses) | Menden, Germany |
| Sant Quirze del Vallés - BCN, Spain | |
| Shanghai, China | |
| Vittuone, Italy | |
| Medium Description | 0.37kW, 4 Poles, Frame Size 71, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA072312-BSE) |
| Short Description | 0.37kW, 4P, Frame Size 71, 3PH, 400V, 50Hz, IP55, IMB5/IM3001 |
| Electrical | |
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V |
| Frequency (f) | 50 Hz |
| Output Power | 0.37 kW |
| Altitude | 1000 m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2 |
| Full Load (100%) 72.7 % | |
| Partial Load (75%) 73.3 % | |
| Partial Load (50%) 69.9 % | |
| IE Class Data (60 Hz) | IE Class IE2 |
| Full Load (100%) 72.0 % | |
| Partial Load (75%) 71.2 % | |
| Partial Load (50%) 66.2 % | |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
| Mechanical | |
| Frame Material | Aluminum |
| Frame Size | 71 |
| Bearing | 6203-2Z/C3 |
| Bearing NDE | 6202-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | Top |
| Dimensions | |
| Product Net Depth / Length | 239.5 mm |
| Product Net Height | 180 mm |
| Product Net Width | 136 mm |
| Product Net Weight | 5.9 kg |
| Gross Weight | 8.9 kg |
| Environmental | |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
| External Classifications and Standards | |
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOW VOLTAGE ALUMINUM MOTORS.pdf | 16 Mbytes |
|
| M3AA 71B 4 3GAA072312-BSE EN_3GAA072312-BSE.pdf | 1 Mbytes |
|
