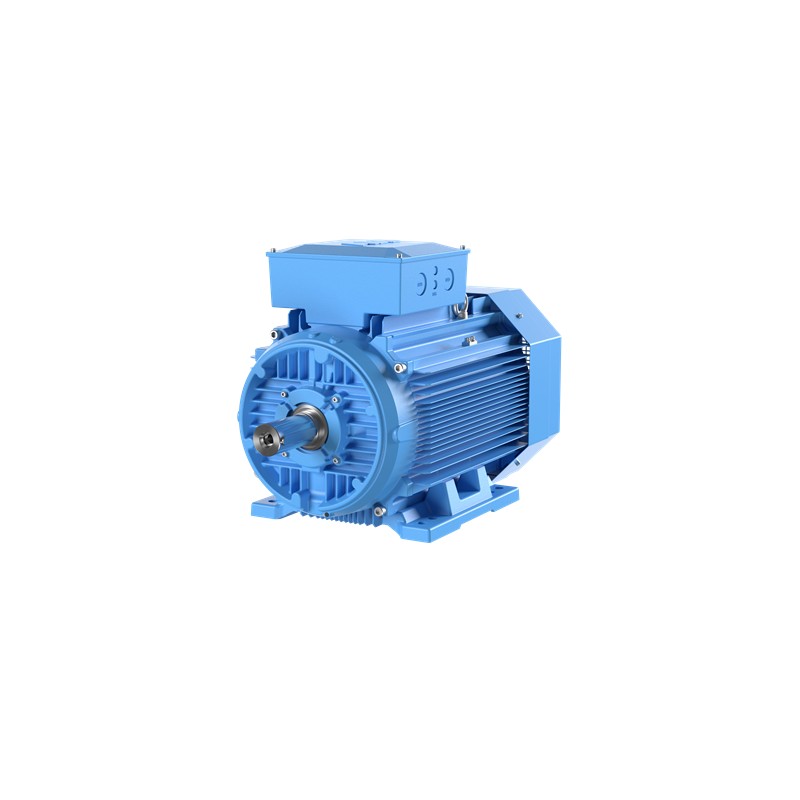

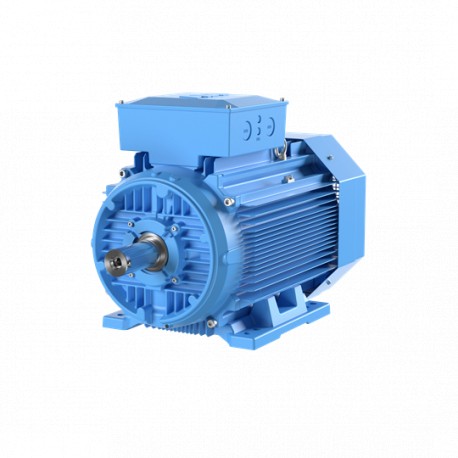

M3AA 280 SMA 4 3GAA282210-ADG ABB Aluminium motor for Process Performance 75kW 400/690V, IE2, 4P, mounting B..

Additional Information

• ABB Type Designation:

  M3AA 280SMA 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6316/C3


• Bearing NDE:

  6213/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	75.00 kW	1478 r/min	78.30 A	0.850	94.30 %	484.00 N·m	7.10
  D	--	50 Hz	400 V	75.00 kW	1478 r/min	135.00 A	0.850	94.30 %	484.00 N·m	7.10
  D	--	50 Hz	415 V	75.00 kW	1480 r/min	133.00 A	0.830	94.40 %	484.00 N·m	7.40
  D	--	60 Hz	440 V	75.00 kW	1779 r/min	120.00 A	0.860	94.50 %	402.00 N·m	7.60
  D	--	60 Hz	460 V	75.00 kW	1782 r/min	116.00 A	0.850	94.70 %	401.00 N·m	8.20
  Y	--	50 Hz	690 V	70.00 kW	1479 r/min	75.10 A	0.840	94.30 %	451.29 N·m	7.50
  Y	--	50 Hz	690 V	70.00 kW	1479 r/min	75.10 A	0.840	94.30 %	451.29 N·m	7.50
  Y	--	50 Hz	690 V	70.00 kW	1479 r/min	75.10 A	0.840	94.30 %	451.29 N·m	7.50
  Y	--	50 Hz	690 V	70.00 kW	1479 r/min	75.10 A	0.840	94.30 %	451.29 N·m	7.50
  Y	--	50 Hz	690 V	70.00 kW	1479 r/min	75.10 A	0.840	94.30 %	451.29 N·m	7.50
  D	--	50 Hz	400 V	70.00 kW	1479 r/min	130.00 A	0.840	94.30 %	451.29 N·m	7.50
  D	--	50 Hz	400 V	70.00 kW	1479 r/min	130.00 A	0.840	94.30 %	451.29 N·m	7.50
  D	--	50 Hz	400 V	70.00 kW	1479 r/min	130.00 A	0.840	94.30 %	451.29 N·m	7.50
  D	--	50 Hz	400 V	70.00 kW	1479 r/min	130.00 A	0.840	94.30 %	451.29 N·m	7.50
  D	--	50 Hz	400 V	70.00 kW	1479 r/min	130.00 A	0.840	94.30 %	451.29 N·m	7.50
  D	--	50 Hz	415 V	70.00 kW	1481 r/min	128.00 A	0.820	94.40 %	450.87 N·m	7.90
  D	--	50 Hz	415 V	70.00 kW	1481 r/min	128.00 A	0.820	94.40 %	450.87 N·m	7.90
  D	--	50 Hz	415 V	70.00 kW	1481 r/min	128.00 A	0.820	94.40 %	450.87 N·m	7.90
  D	--	50 Hz	415 V	70.00 kW	1481 r/min	128.00 A	0.820	94.40 %	450.87 N·m	7.90
  D	--	50 Hz	415 V	70.00 kW	1481 r/min	128.00 A	0.820	94.40 %	450.87 N·m	7.90
  D	--	60 Hz	440 V	70.00 kW	1779 r/min	115.00 A	0.860	94.30 %	375.23 N·m	8.20
  D	--	60 Hz	440 V	70.00 kW	1779 r/min	115.00 A	0.860	94.30 %	375.23 N·m	8.20
  D	--	60 Hz	440 V	70.00 kW	1779 r/min	115.00 A	0.860	94.30 %	375.23 N·m	8.20
  D	--	60 Hz	440 V	70.00 kW	1779 r/min	115.00 A	0.860	94.30 %	375.23 N·m	8.20
  D	--	60 Hz	440 V	70.00 kW	1779 r/min	115.00 A	0.860	94.30 %	375.23 N·m	8.20
  D	--	60 Hz	460 V	70.00 kW	1781 r/min	112.00 A	0.840	94.40 %	374.88 N·m	8.70
  D	--	60 Hz	460 V	70.00 kW	1781 r/min	112.00 A	0.840	94.40 %	374.88 N·m	8.70
  D	--	60 Hz	460 V	70.00 kW	1781 r/min	112.00 A	0.840	94.40 %	374.88 N·m	8.70
  D	--	60 Hz	460 V	70.00 kW	1781 r/min	112.00 A	0.840	94.40 %	374.88 N·m	8.70
  D	--	60 Hz	460 V	70.00 kW	1781 r/min	112.00 A	0.840	94.40 %	374.88 N·m	8.70

• Frame Material:

  Aluminum


• Frame Size:

  280


• Frequency (f):

  50 Hz


• Gross Weight:

  409kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 94.3 %
  Partial Load (75%) 94.4 %
  Partial Load (50%) 93.9 %


• IE Class Data (60 Hz):

  IE Class IE1
  Full Load (100%) 94.3 %
  Partial Load (75%) 94.2 %
  Partial Load (50%) 93.2 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 280SMA 4


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  75kW, 4 Poles, Frame Size 280, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA282210-ADG)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Output Power:

  75 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  884mm


• Product Net Height:

  657mm


• Product Net Weight:

  389kg


• Product Net Width:

  522mm


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA282031-ADG


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  75kW, 4P, Frame Size 280, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
