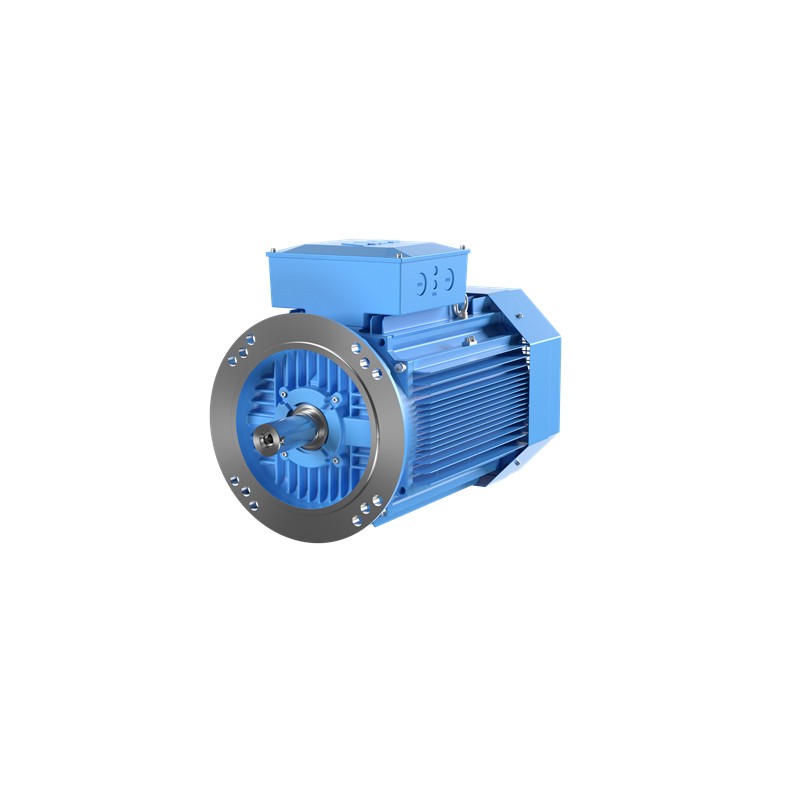

M3AA 250 SMA 3GAA251210-BDK ABB Aluminium motor for Process Performance 55kW 400/690V, IE3, 2P, mounting B5 ..

Additional Information

• ABB Type Designation:

  M3AA 250SMA 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6315-2Z/C3


• Bearing NDE:

  6213-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	55.00 kW	2968 r/min	54.90 A	0.890	94.30 %	177.00 N·m	6.80
  D	--	50 Hz	400 V	55.00 kW	2968 r/min	94.80 A	0.890	94.30 %	177.00 N·m	6.80
  Y	--	50 Hz	660 V	55.00 kW	2960 r/min	54.70 A	0.890	94.30 %	177.00 N·m	6.20
  D	--	50 Hz	380 V	55.00 kW	2960 r/min	99.60 A	0.890	94.30 %	177.00 N·m	6.20
  D	--	50 Hz	415 V	55.00 kW	2970 r/min	92.10 A	0.890	94.30 %	177.00 N·m	7.30
  D	--	60 Hz	460 V	55.00 kW	3569 r/min	82.70 A	0.900	93.60 %	147.00 N·m	7.90

• Frame Material:

  Aluminum


• Frame Size:

  250


• Frequency (f):

  50 Hz


• Gross Weight:

  361kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 94.3 %
  Partial Load (75%) 93.7 %
  Partial Load (50%) 93.6 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 93.6 %
  Partial Load (75%) 93.1 %
  Partial Load (50%) 91.6 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 250SMA 2


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  55kW, 2 Poles, Frame Size 250, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA251210-BDK)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  55 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  884mm


• Product Net Height:

  601mm


• Product Net Weight:

  351kg


• Product Net Width:

  473mm


• Product Type:

  3AA3__M3AA_IE3_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA251051-BDK


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  55kW, 2P, Frame Size 250, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
