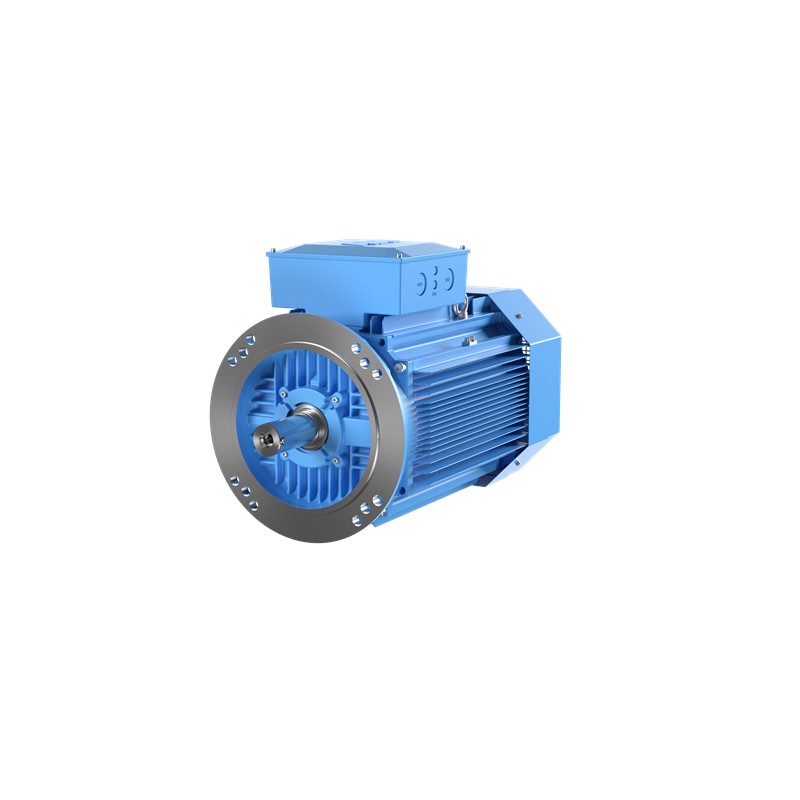

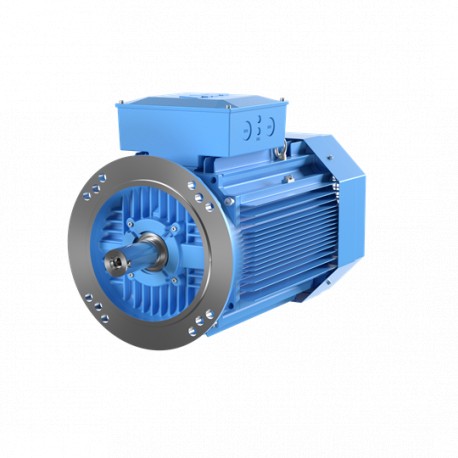

M3AA 225 SMC 2 3GAA221230-BDG ABB Aluminium motor for Process Performance 75kW 400/690V, IE2, 2P, mounting B..

Additional Information

• ABB Type Designation:

  M3AA 225SMC 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6313-2Z/C3


• Bearing NDE:

  6212-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	75.00 kW	2969 r/min	78.80 A	0.840	94.40 %	241.00 N·m	7.40
  D	--	50 Hz	400 V	75.00 kW	2969 r/min	136.00 A	0.840	94.40 %	241.00 N·m	7.40
  D	--	50 Hz	415 V	75.00 kW	2971 r/min	139.00 A	0.790	94.40 %	241.00 N·m	7.60
  D	--	60 Hz	440 V	75.00 kW	3570 r/min	117.00 A	0.890	94.20 %	200.00 N·m	8.20
  D	--	60 Hz	460 V	75.00 kW	3573 r/min	116.00 A	0.860	94.30 %	200.00 N·m	8.70
  Y	--	50 Hz	690 V	67.00 kW	2972 r/min	72.60 A	0.820	94.40 %	215.05 N·m	8.20
  Y	--	50 Hz	690 V	67.00 kW	2972 r/min	72.60 A	0.820	94.40 %	215.05 N·m	8.20
  Y	--	50 Hz	690 V	67.00 kW	2972 r/min	72.60 A	0.820	94.40 %	215.05 N·m	8.20
  Y	--	50 Hz	690 V	67.00 kW	2972 r/min	72.60 A	0.820	94.40 %	215.05 N·m	8.20
  Y	--	50 Hz	690 V	67.00 kW	2972 r/min	72.60 A	0.820	94.40 %	215.05 N·m	8.20
  D	--	50 Hz	400 V	67.00 kW	2972 r/min	127.00 A	0.820	94.40 %	215.05 N·m	8.20
  D	--	50 Hz	400 V	67.00 kW	2972 r/min	127.00 A	0.820	94.40 %	215.05 N·m	8.20
  D	--	50 Hz	400 V	67.00 kW	2972 r/min	127.00 A	0.820	94.40 %	215.05 N·m	8.20
  D	--	50 Hz	400 V	67.00 kW	2972 r/min	127.00 A	0.820	94.40 %	215.05 N·m	8.20
  D	--	50 Hz	400 V	67.00 kW	2972 r/min	127.00 A	0.820	94.40 %	215.05 N·m	8.20
  D	--	50 Hz	415 V	67.00 kW	2974 r/min	129.00 A	0.780	94.40 %	214.91 N·m	8.40
  D	--	50 Hz	415 V	67.00 kW	2974 r/min	129.00 A	0.780	94.40 %	214.91 N·m	8.40
  D	--	50 Hz	415 V	67.00 kW	2974 r/min	129.00 A	0.780	94.40 %	214.91 N·m	8.40
  D	--	50 Hz	415 V	67.00 kW	2974 r/min	129.00 A	0.780	94.40 %	214.91 N·m	8.40
  D	--	50 Hz	415 V	67.00 kW	2974 r/min	129.00 A	0.780	94.40 %	214.91 N·m	8.40
  D	--	60 Hz	440 V	67.00 kW	3573 r/min	109.00 A	0.870	94.00 %	178.92 N·m	9.10
  D	--	60 Hz	440 V	67.00 kW	3573 r/min	109.00 A	0.870	94.00 %	178.92 N·m	9.10
  D	--	60 Hz	440 V	67.00 kW	3573 r/min	109.00 A	0.870	94.00 %	178.92 N·m	9.10
  D	--	60 Hz	440 V	67.00 kW	3573 r/min	109.00 A	0.870	94.00 %	178.92 N·m	9.10
  D	--	60 Hz	440 V	67.00 kW	3573 r/min	109.00 A	0.870	94.00 %	178.92 N·m	9.10
  D	--	60 Hz	460 V	67.00 kW	3575 r/min	109.00 A	0.830	94.00 %	178.81 N·m	9.60
  D	--	60 Hz	460 V	67.00 kW	3575 r/min	109.00 A	0.830	94.00 %	178.81 N·m	9.60
  D	--	60 Hz	460 V	67.00 kW	3575 r/min	109.00 A	0.830	94.00 %	178.81 N·m	9.60
  D	--	60 Hz	460 V	67.00 kW	3575 r/min	109.00 A	0.830	94.00 %	178.81 N·m	9.60
  D	--	60 Hz	460 V	67.00 kW	3575 r/min	109.00 A	0.830	94.00 %	178.81 N·m	9.60

• Frame Material:

  Aluminum


• Frame Size:

  225


• Frequency (f):

  50 Hz


• Gross Weight:

  322kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 94.4 %
  Partial Load (75%) 94.1 %
  Partial Load (50%) 92.7 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 94.0 %
  Partial Load (75%) 93.3 %
  Partial Load (50%) 91.6 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 225SMC 2


• IP Rating:

  IP55


• Made To Order:

  No


• Medium Description:

  75kW, 2 Poles, Frame Size 225, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA221230-BDG)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  75 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  850mm


• Product Net Height:

  547mm


• Product Net Weight:

  312kg


• Product Net Width:

  425mm


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA221033-BDG


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  75kW, 2P, Frame Size 225, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
