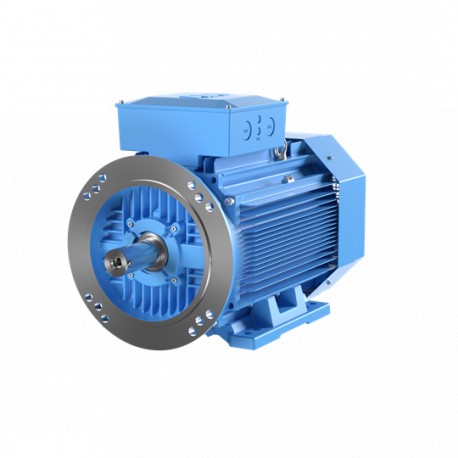

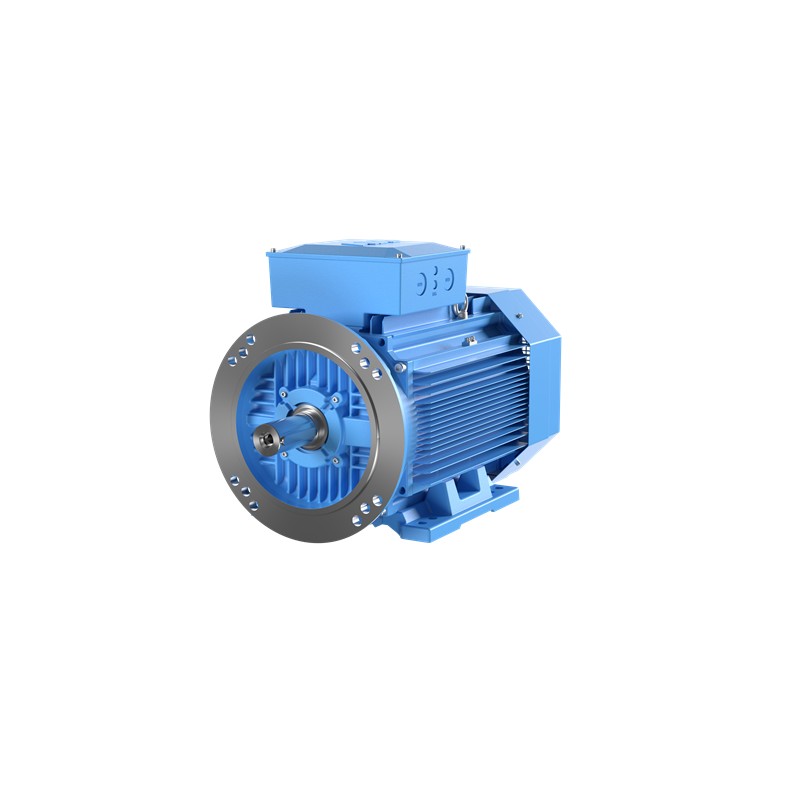

M3AA 200 MLD 2 3GAA201440-BDG ABB Aluminium motor for Process Performance 55kW 400/690V, IE2, 2P, mounting B..

Additional Information

• ABB Type Designation:

  M3AA 200MLD 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6312-2Z/C3


• Bearing NDE:

  6210-2Z/C3


• Country of Origin:

  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	55.00 kW	2953 r/min	55.10 A	0.890	93.80 %	177.00 N·m	7.80
  D	--	50 Hz	400 V	55.00 kW	2953 r/min	95.00 A	0.890	93.80 %	177.00 N·m	7.80
  D	--	50 Hz	415 V	55.00 kW	2957 r/min	92.50 A	0.880	94.00 %	177.00 N·m	8.40
  D	--	60 Hz	440 V	55.00 kW	3555 r/min	85.30 A	0.900	94.00 %	147.00 N·m	8.20
  D	--	60 Hz	460 V	55.00 kW	3560 r/min	82.20 A	0.890	94.30 %	147.00 N·m	9.00
  Y	--	50 Hz	690 V	50.00 kW	2957 r/min	51.30 A	0.880	93.90 %	160.67 N·m	8.50
  Y	--	50 Hz	690 V	50.00 kW	2957 r/min	51.30 A	0.880	93.90 %	160.67 N·m	8.50
  Y	--	50 Hz	690 V	50.00 kW	2957 r/min	51.30 A	0.880	93.90 %	160.67 N·m	8.50
  Y	--	50 Hz	690 V	50.00 kW	2957 r/min	51.30 A	0.880	93.90 %	160.67 N·m	8.50
  Y	--	50 Hz	690 V	50.00 kW	2957 r/min	51.30 A	0.880	93.90 %	160.67 N·m	8.50
  D	--	50 Hz	400 V	50.00 kW	2953 r/min	88.60 A	0.880	93.90 %	160.67 N·m	8.50
  D	--	50 Hz	400 V	50.00 kW	2953 r/min	88.60 A	0.880	93.90 %	160.67 N·m	8.50
  D	--	50 Hz	400 V	50.00 kW	2953 r/min	88.60 A	0.880	93.90 %	160.67 N·m	8.50
  D	--	50 Hz	400 V	50.00 kW	2953 r/min	88.60 A	0.880	93.90 %	160.67 N·m	8.50
  D	--	50 Hz	400 V	50.00 kW	2953 r/min	88.60 A	0.880	93.90 %	160.67 N·m	8.50
  D	--	50 Hz	415 V	50.00 kW	2960 r/min	87.40 A	0.860	93.90 %	160.51 N·m	8.90
  D	--	50 Hz	415 V	50.00 kW	2960 r/min	87.40 A	0.860	93.90 %	160.51 N·m	8.90
  D	--	50 Hz	415 V	50.00 kW	2960 r/min	87.40 A	0.860	93.90 %	160.51 N·m	8.90
  D	--	50 Hz	415 V	50.00 kW	2960 r/min	87.40 A	0.860	93.90 %	160.51 N·m	8.90
  D	--	50 Hz	415 V	50.00 kW	2960 r/min	87.40 A	0.860	93.90 %	160.51 N·m	8.90
  D	--	60 Hz	440 V	50.00 kW	3557 r/min	78.80 A	0.900	93.80 %	133.00 N·m	9.20
  D	--	60 Hz	440 V	50.00 kW	3557 r/min	78.80 A	0.900	93.80 %	133.00 N·m	9.20
  D	--	60 Hz	440 V	50.00 kW	3557 r/min	78.80 A	0.900	93.80 %	133.00 N·m	9.20
  D	--	60 Hz	440 V	50.00 kW	3557 r/min	78.80 A	0.900	93.80 %	133.00 N·m	9.20
  D	--	60 Hz	440 V	50.00 kW	3557 r/min	78.80 A	0.900	93.80 %	133.00 N·m	9.20
  D	--	60 Hz	460 V	50.00 kW	3561 r/min	76.20 A	0.890	93.80 %	133.43 N·m	9.90
  D	--	60 Hz	460 V	50.00 kW	3561 r/min	76.20 A	0.890	93.80 %	133.43 N·m	9.90
  D	--	60 Hz	460 V	50.00 kW	3561 r/min	76.20 A	0.890	93.80 %	133.43 N·m	9.90
  D	--	60 Hz	460 V	50.00 kW	3561 r/min	76.20 A	0.890	93.80 %	133.43 N·m	9.90
  D	--	60 Hz	460 V	50.00 kW	3561 r/min	76.20 A	0.890	93.80 %	133.43 N·m	9.90

• Frame Material:

  Aluminum


• Gross Weight:

  251kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 93.8 %
  Partial Load (75%) 94.5 %
  Partial Load (50%) 94.3 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 93.8 %
  Partial Load (75%) 93.5 %
  Partial Load (50%) 92.2 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 200MLD 2


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  241kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA201034-BDG


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
