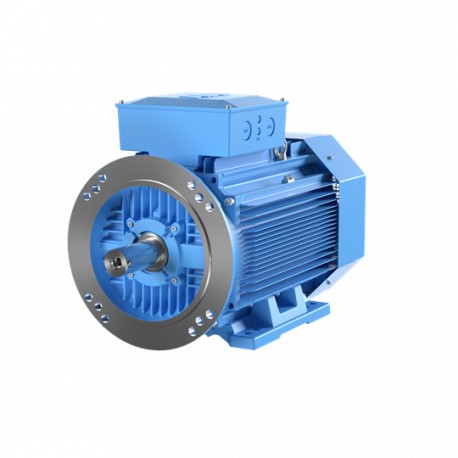

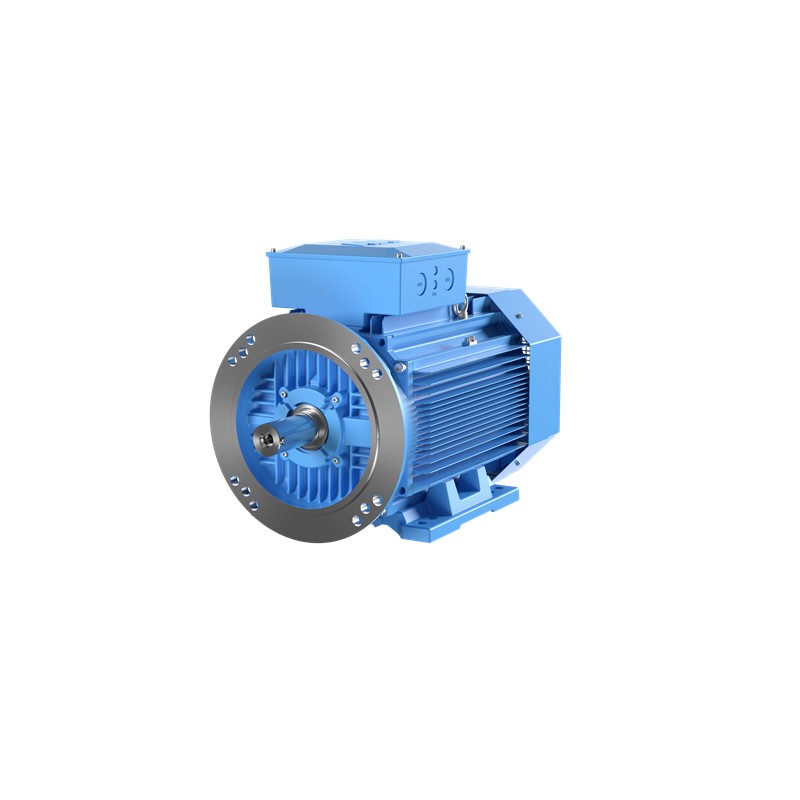

M3AA 200MLC 3GAA201430-ADK ABB Aluminium motor for Process Performance 45kW 400/690V, IE3, 2P, mounting B3 (..
M3AA 200 MLC
3GAA201430-ADK
ABB
Aluminium motor for Process Performance 45kW 400/690V, IE3, 2P, mounting B3 (feet)
Aluminum Engine for Process Industry 45 kW, 3000 rpm, 400/690 V, B3 mounting, IE3 efficiency
M3AA 200MLC 2
Cast iron M2BA and aluminium M3AA motors > M3AA IE3
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Product ID:
- 3GAA201430-ADK
- ABB Type Designation:
- M3AA 200MLC 2
- Catalog Description:
- M3AA 200MLC 2
Additional Information
- ABB Type Designation:
- M3AA 200MLC 2
- Altitude:
- 1000 m
- Ambient Temperature:
- 40 °C
- Bearing:
- 6312-2Z/C3
- Bearing NDE:
- 6210-2Z/C3
- Country of Origin:
- Finland (FI)
Poland (PL)
- Customs Tariff Number:
- 85015290
- Direction of Rotation:
- Both sides
- Electrical Data:
Conn Temp Class Freq Voltage Power Speed Current Power Factor Efficiency Torque IS/IN Y -- 50 Hz 690 V 45.00 kW 2955 r/min 45.00 A 0.890 94.00 % 145.42 N·m 8.00 D -- 50 Hz 400 V 45.00 kW 2955 r/min 77.60 A 0.890 94.00 % 145.42 N·m 8.00 D -- 50 Hz 415 V 45.00 kW 2959 r/min 75.60 A 0.880 94.00 % 145.22 N·m 8.50
- Gross Weight:
- 260kg
- IC Class:
- IC411
- IE Class Data (50 Hz):
- IE Class IE3
Full Load (100%) 94.0 %
Partial Load (75%) 94.5 %
Partial Load (50%) 94.4 %
- IM Class:
- IMB3 IM1001
- IP Class:
- IP55
- Insulation Class:
- ICLF
- Invoice Description:
- M3AA 200MLC 2
- Made To Order:
- No
- Minimum Order Quantity:
- 1 piece
- Number of Poles (High):
- 2
- Order Multiple:
- 1 piece
- Package Level 1 Units:
- 0 pallet (lift)
- Product Name:
- 3-Phase squirrel cage motor
- Product Net Weight:
- 250kg
- Product Type:
- 3AA3__M3AA_IE3_AA
- Quote Only:
- No
- Replaced Product ID (OLD):
- 3GAA201053-ADK
- Selling Unit of Measure:
- piece
- Stocked At (Warehouses):
- Central Stock Europe
- Temperature Class Default:
- --
- Terminator Box Location:
- D-End top
- Two Speed Motor:
- No
- Voltage Code:
- D
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOW VOLTAGE ALUMINUM MOTORS.pdf | 16 Mbytes |
|
| M3AA 200 MLC 3GAA201430-ADK EN_3GAA201430-ADK.pdf | 1 Mbytes |
|
