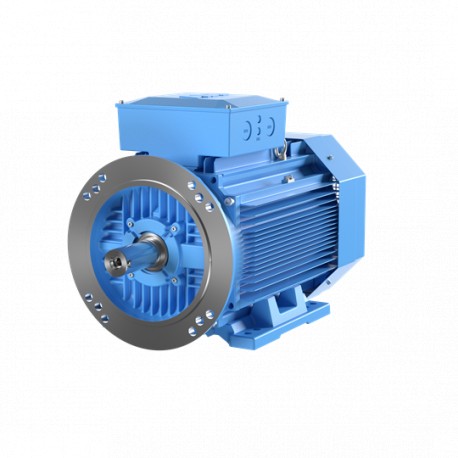

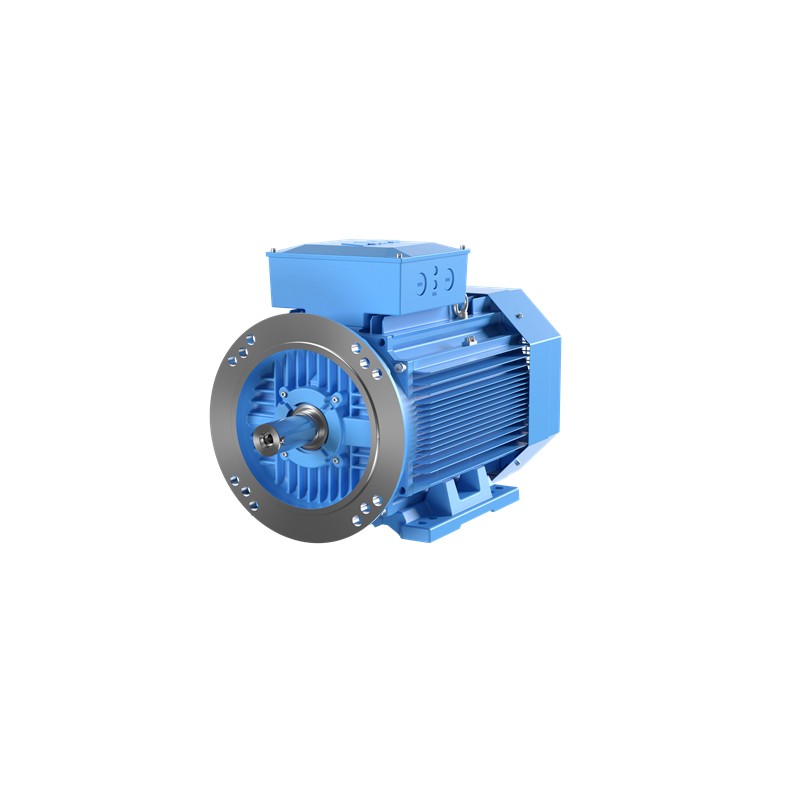

M3AA 200 MLA 2 3GAA201410-BDK ABB Aluminium motor for Process Performance 30kW 400/690V, IE3, 2P, mounting B..

Additional Information

• ABB Type Designation:

  M3AA 200MLA 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6312-2Z/C3


• Bearing NDE:

  6210-2Z/C3


• Country of Origin:

  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015230


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	30.00 kW	2958 r/min	30.30 A	0.890	93.30 %	96.80 N·m	7.70
  D	--	50 Hz	400 V	30.00 kW	2958 r/min	52.00 A	0.890	93.30 %	96.80 N·m	7.70
  Y	--	50 Hz	660 V	30.00 kW	2951 r/min	31.60 A	0.890	93.30 %	97.00 N·m	7.00
  D	--	50 Hz	380 V	30.00 kW	2951 r/min	54.90 A	0.890	93.30 %	97.00 N·m	7.00
  D	--	50 Hz	415 V	30.00 kW	2962 r/min	50.20 A	0.890	93.30 %	96.70 N·m	8.30
  D	--	60 Hz	460 V	30.00 kW	3562 r/min	45.80 A	0.890	92.40 %	80.40 N·m	8.70

• Gross Weight:

  235kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 93.3 %
  Partial Load (75%) 93.6 %
  Partial Load (50%) 93.2 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 92.4 %
  Partial Load (75%) 92.1 %
  Partial Load (50%) 90.5 %


• IM Class:

  IMB5 IM3001


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 200MLA 2


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  225kg


• Product Type:

  3AA3__M3AA_IE3_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA201051-BDK


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Central Stock Europe


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
