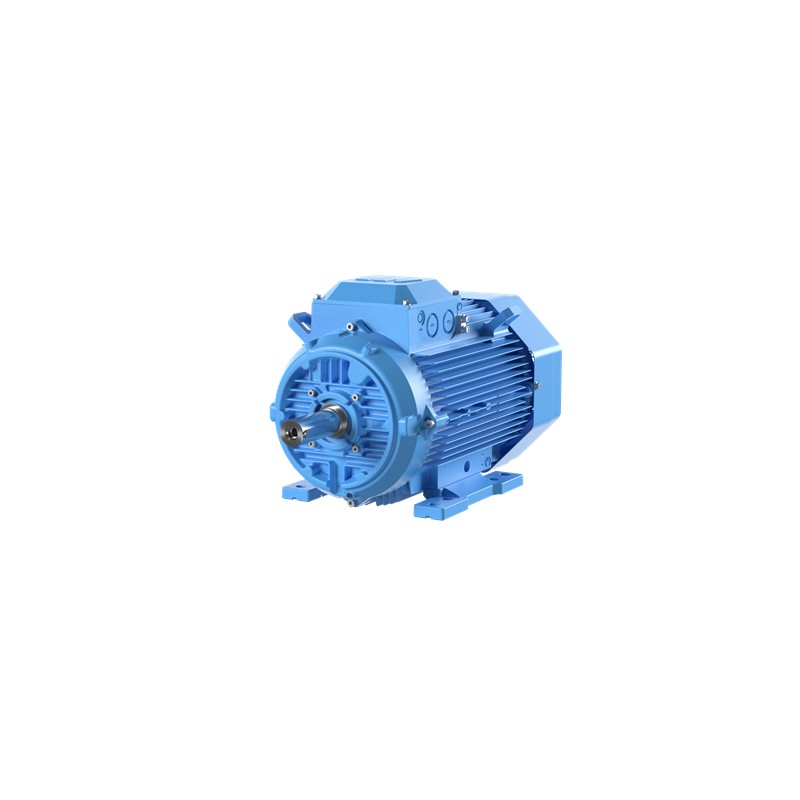

M3AA 180 MLC 3GAA182430-ADK ABB Aluminium motor for Process Performance 28kW 400/690V, IE3, 4P, mounting B3 ..
M3AA 180 MLC
3GAA182430-ADK
ABB
Aluminium motor for Process Performance 28kW 400/690V, IE3, 4P, mounting B3 (feet)
Aluminum Engine for Process Industry 28 kW, 1500 rpm, 400/690 V, B3 mounting, IE3 efficiency
IE3 Premium Efficiency Aluminum Motors, 28 kW, 400 V (3GAA182430-ADK)
Cast iron M2BA and aluminium M3AA motors
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Product ID:
- 3GAA182430-ADK
- ABB Type Designation:
- M3AA 180MLC 4
- Catalog Description:
- IE3 Premium Efficiency Aluminum Motors, 28 kW, 400 V (3GAA182430-ADK)
Ordering
- ABB Type Designation:
- M3AA 180MLC 4
- Invoice Description:
- M3AA 180MLC 4
- Product Name:
- 3-Phase squirrel cage motor
- Product Type:
- 3AA3__M3AA_IE3_AA
- Made To Order:
- No
- Minimum Order Quantity:
- 1 piece
- Order Multiple:
- 1 piece
- Selling Unit of Measure:
- piece
- Country of Origin:
- Finland (FI)
China (CN)
Poland (PL)
- Customs Tariff Number:
- 85015230
- Stocked At (Warehouses):
- Menden, Germany
- Medium Description:
- 28kW, 4 Poles, Frame Size 180, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA182430-ADK)
- Short Description:
- 28kW, 4P, Frame Size 180, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical
- Electrical Data:
Conn Temp Class Freq Voltage Power Speed Current Power Factor Efficiency Torque IS/IN Y -- 50 Hz 690 V 28.00 kW 1482 r/min 32.50 A 0.770 93.40 % 180.37 N·m 8.20 D -- 50 Hz 400 V 28.00 kW 1482 r/min 56.50 A 0.770 93.40 % 180.36 N·m 8.20 Y -- 50 Hz 660 V 28.00 kW 1481 r/min 32.00 A 0.820 93.40 % 180.60 N·m 7.90 D -- 50 Hz 380 V 28.00 kW 1480 r/min 55.40 A 0.820 93.40 % 180.62 N·m 7.90 D -- 50 Hz 415 V 28.00 kW 1484 r/min 58.80 A 0.710 93.40 % 180.22 N·m 8.20 D -- 60 Hz 460 V 28.00 kW 1786 r/min 48.30 A 0.770 94.10 % 149.75 N·m 9.60
- Connection Configuration:
- D
- Temperature Class Default:
- --
- Input Voltage (Uin):
- 400 V
- Frequency (f):
- 50 Hz
- Output Power:
- 28 kW
- Altitude:
- 1000 m
- Ambient Temperature:
- 40 °C
- IC Class:
- IC411
- IE Class Data (50 Hz):
- IE Class IE3
Full Load (100%) 93.4 %
Partial Load (75%) 93.0 %
Partial Load (50%) 91.7 %
- IE Class Data (60 Hz):
- IE Class IE3
Full Load (100%) 94.1 %
Partial Load (75%) 93.7 %
Partial Load (50%) 92.4 %
- IP Class:
- IP55
- Insulation Class:
- ICLF
- Direction of Rotation:
- Both sides
- Number of Poles (High):
- 4
- Two Speed Motor:
- No
- Type of Duty:
- S1
- Voltage Code:
- D
Mechanical
- Frame Material:
- Aluminum
- Frame Size:
- 180
- Bearing:
- 6310-2Z/C3
- Bearing NDE:
- 6209-2Z/C3
- IM Class:
- IMB3 IM1001
- Terminator Box Location:
- D-End top
Dimensions
- Package Level 1 Units:
- 0 pallet (lift)
- Product Net Depth / Length:
- 726mm
- Product Net Height:
- 405mm
- Product Net Width:
- 341mm
- Product Net Weight:
- 176kg
- Gross Weight:
- 186kg
Environmental
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
- SCIP:
- 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)
Classifications
- UNSPSC:
- 26101100
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOW VOLTAGE ABB EN.pdf | 8 Mbytes |
|
| M3AA 180 MLC 3GAA182430-ADK EN_3GAA182430-ADK.pdf | 373 Kbytes |
|
