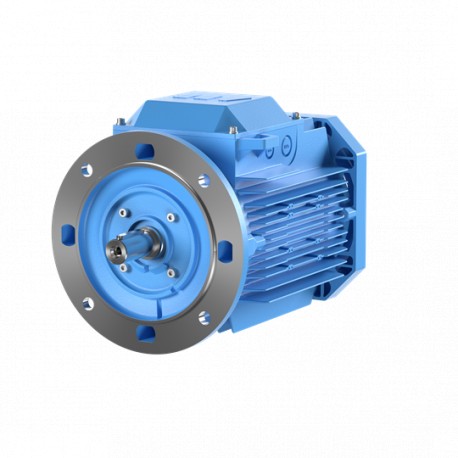

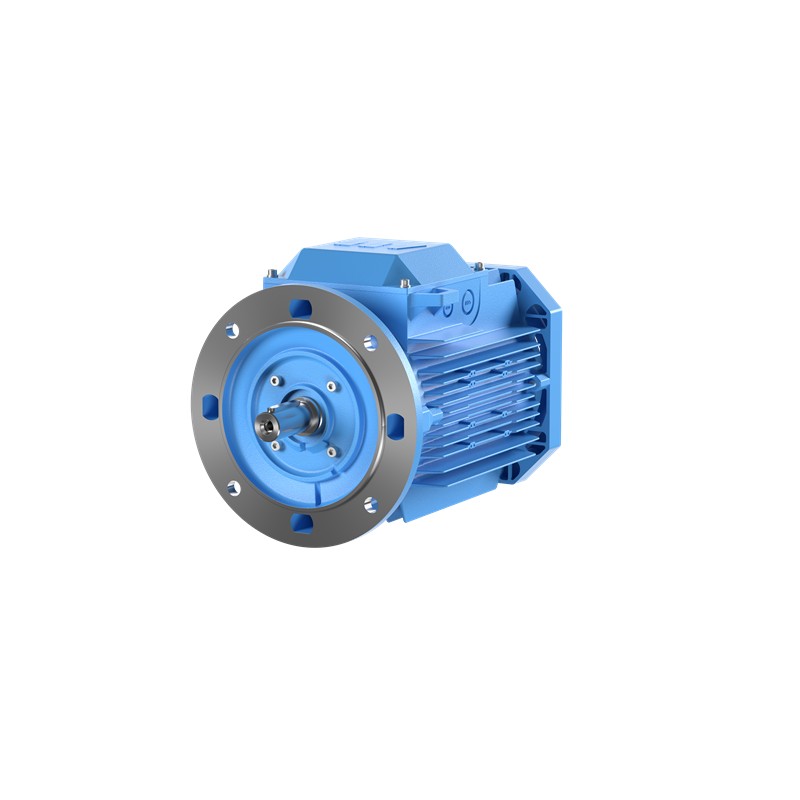

M3AA 132 SC 2 3GAA131130-BDE ABB Aluminium motor for Process Performance 7,5kW 400/690V, IE2, 2P, mounting B..

Additional Information

• ABB Type Designation:

  M3AA 132SC 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6208-2Z/C3


• Bearing NDE:

  6206-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  China (CN)
  Finland (FI)
  Poland (PL)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	7.50 kW	2915 r/min	7.92 A	0.880	88.50 %	24.50 N·m	7.60
  D	--	50 Hz	400 V	7.50 kW	2915 r/min	13.60 A	0.880	88.50 %	24.50 N·m	7.60
  D	--	60 Hz	460 V	7.50 kW	3525 r/min	12.00 A	0.890	89.50 %	20.30 N·m	8.70

• Frame Material:

  Aluminum


• Frame Size:

  132


• Frequency (f):

  50 Hz


• Gross Weight:

  57kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 88.5 %
  Partial Load (75%) 89.2 %
  Partial Load (50%) 88.6 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 89.5 %
  Partial Load (75%) 89.2 %
  Partial Load (50%) 87.6 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 132SC 2


• IP Rating:

  IP55


• Made To Order:

  No


• Medium Description:

  7.5kW, 2 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA131130-BDE)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  7.5 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  487mm


• Product Net Height:

  296mm


• Product Net Weight:

  52kg


• Product Net Width:

  262mm


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA131313-BDE
  3GAA131443-BDE


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  7.5kW, 2P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Stocked At (Warehouses):

  Menden, Germany
  Shanghai, China
  Vittuone, Italy


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
