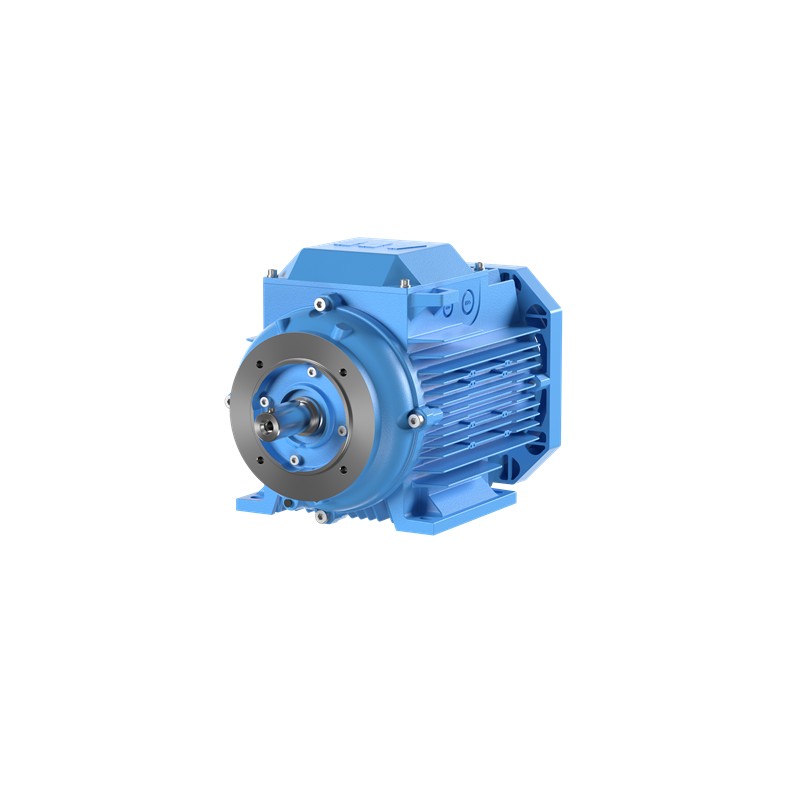

M3AA 132SB 3GAA131120-BDK ABB Aluminium motor for Process Performance 5,5kW 400/690V, IE3, 2P, mounting B5 (.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

M3AA 132SB 3GAA131120-BDK ABB Aluminium motor for Process Performance 5,5kW 400/690V, IE3, 2P, mounting B5 (..

M3AA 132 SB

3GAA131120-BDK

ABB

Aluminium motor for Process Performance 5,5kW 400/690V, IE3, 2P, mounting B5 (large flange)

Aluminum Engine for Process Industry 5.5 kW, 3000 rpm, 400/690 V, B5 mounting, IE3 efficiency

M3AA 132SB 2

More details


Cast iron M2BA and aluminium M3AA motors > M3AA IE3

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $987.41
Unit price: $987.41
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

\n

General Information

\n
\n
\n\nProduct ID:\n\n\n\n
3GAA131120-BDK
\n\n
\n
\n\nABB Type Designation:\n\n\n\n
M3AA 132SB 2
\n\n
\n
\n\nCatalog Description:\n\n\n\n
M3AA 132SB 2
\n\n
\n
\n\n
\n \n
\n
\n\n

Supplier Information - NOATDRLC

\n\n
\n
\n\nConfiguration Only:\n\n\n\n
No
\n\n
\n
\n\nCountry of Origin:\n\n\n\n
Poland (PL)
\n\n
\n
\n\nLead Time:\n\n\n\n
0 day
\n\n
\n
\n\nMade To Order:\n\n\n\n
No
\n\n
\n
\n\nProduct Sales Status:\n\n\n\n
Active
\n\n
\n
\n\nQuote Only:\n\n\n\n
No
\n\n
\n
\n\nStocked At Warehouses:\n\n\n\n
NOATDRLCEXPU
\n\n
\n
\n\nWarranty Return:\n\n\n\n
Product under warranty must be returned
\n\n
\n
\n\n\n
\n
\n\n

Additional Information

\n\n
\n
\n\nABB Type Designation:\n\n\n\n
M3AA 132SB 2
\n\n
\n
\n\nAltitude:\n\n\n\n
1000 m
\n\n
\n
\n\nAmbient Temperature:\n\n\n\n
40 °C
\n\n
\n
\n\nBearing:\n\n\n\n
6208-2Z/C3
\n\n
\n
\n\nBearing NDE:\n\n\n\n
6206-2Z/C3
\n\n
\n
\n\nCountry of Origin:\n\n\n\n
China (CN)
\n
\n
Finland (FI)
\n
\n
Poland (PL)
\n\n
\n
\n\nCustoms Tariff Number:\n\n\n\n
85015220
\n\n
\n
\n\nDirection of Rotation:\n\n\n\n
Both sides
\n\n
\n
\n
\n \n
Electrical Data:
ConnTemp ClassFreqVoltagePowerSpeedCurrentPower FactorEfficiencyTorqueIS/IN
Y--50 Hz690 V5.50 kW2901 r/min5.60 A0.91089.20 %18.10 N·m7.90
D--50 Hz400 V5.50 kW2901 r/min9.70 A0.91089.20 %18.10 N·m7.90
Y--50 Hz660 V5.50 kW2886 r/min5.90 A0.92089.20 %18.10 N·m7.10
D--50 Hz380 V5.50 kW2886 r/min10.30 A0.92089.20 %18.10 N·m7.10
D--50 Hz415 V5.50 kW2911 r/min9.40 A0.91089.20 %18.00 N·m8.50
D--60 Hz460 V5.50 kW3519 r/min8.40 A0.90089.50 %14.90 N·m9.10
\n\n
\n
\n
\n\nGross Weight:\n\n\n\n
63 kg
\n\n
\n
\n\nIC Class:\n\n\n\n
IC411
\n\n
\n
\n\nIE Class Data (50 Hz):\n\n\n\n
IE Class IE3
\n
\n
Full Load (100%) 89.2 %
\n
\n
Partial Load (75%) 89.7 %
\n
\n
Partial Load (50%) 89.8 %
\n\n
\n
\n\nIE Class Data (60 Hz):\n\n\n\n
IE Class IE3
\n
\n
Full Load (100%) 89.5 %
\n
\n
Partial Load (75%) 89.4 %
\n
\n
Partial Load (50%) 88.7 %
\n\n
\n
\n\nIM Class:\n\n\n\n
IMB5 IM3001
\n\n
\n
\n\nIP Class:\n\n\n\n
IP55
\n\n
\n
\n\nInsulation Class:\n\n\n\n
ICLF
\n\n
\n
\n\nInvoice Description:\n\n\n\n
M3AA 132SB 2
\n\n
\n
\n\nMade To Order:\n\n\n\n
No
\n\n
\n
\n\nMinimum Order Quantity:\n\n\n\n
1 piece
\n\n
\n
\n\nNumber of Poles (High):\n\n\n\n
2
\n\n
\n
\n\nOrder Multiple:\n\n\n\n
1 piece
\n\n
\n
\n\nPackage Level 1 Units:\n\n\n\n
0 carton
\n\n
\n
\n\nProduct Name:\n\n\n\n
3-Phase squirrel cage motor
\n\n
\n
\n\nProduct Net Weight:\n\n\n\n
58 kg
\n\n
\n
\n\nProduct Type:\n\n\n\n
3AA3__M3AA_IE3_AA
\n\n
\n
\n\nQuote Only:\n\n\n\n
No
\n\n
\n
\n\nSCIP:\n\n\n\n
27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)
\n\n
\n
\n\nSelling Unit of Measure:\n\n\n\n
piece
\n\n
\n
\n\nStocked At (Warehouses):\n\n\n\n
Menden, Germany
\n
\n
Sant Quirze del Vallés - BCN, Spain
\n
\n
Vittuone, Italy
\n\n
\n
\n\nTemperature Class Default:\n\n\n\n
--
\n\n
\n
\n\nTerminator Box Location:\n\n\n\n
D-End top
\n\n
\n
\n\nTwo Speed Motor:\n\n\n\n
No
\n\n
\n
\n\nType of Duty:\n\n\n\n
S1
\n\n
\n
\n\nUNSPSC:\n\n\n\n
26101100
\n\n
\n
\n\nVoltage Code:\n\n\n\n
D
\n\n
\n
\n\nWEEE Category:\n\n\n\n
5. Small Equipment (No External Dimension More Than 50 cm)
\n\n
\n
\n\n\n
\n\n \n \n \n
\n \n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LOW VOLTAGE ALUMINUM MOTORS.pdf 16 Mbytes
M3AA 132 SB 3GAA131120-BDK EN_3GAA131120-BDK.pdf 1 Mbytes M3AA 132 SB 3GAA131120-BDK EN_3GAA131120-BDK.pdf
