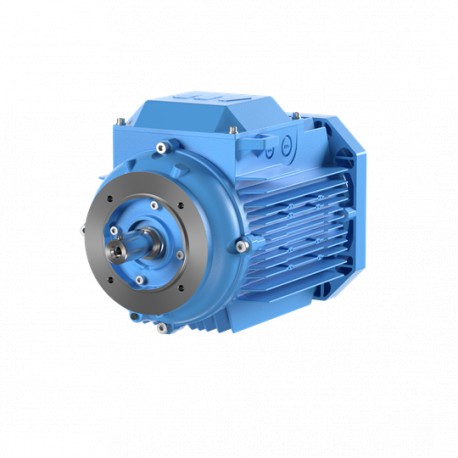

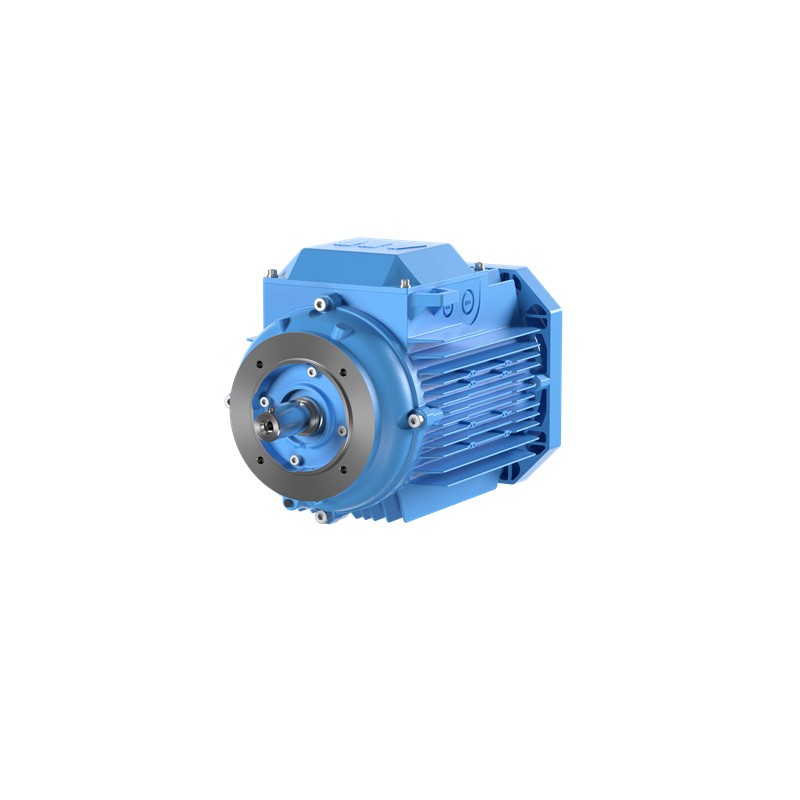

M3AA 132 M 4 3GAA132300-CDE ABB Aluminium motor for Process Performance 5,5kW 400/690V, IE2, 4P, mounting B1..

Additional Information

• ABB Type Designation:

  M3AA 132M 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6208-2Z/C3


• Bearing NDE:

  6206-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	5.50 kW	1465 r/min	6.30 A	0.790	89.00 %	36.00 N·m	6.20
  D	--	50 Hz	400 V	5.50 kW	1465 r/min	10.90 A	0.790	89.00 %	36.00 N·m	6.30
  D	--	60 Hz	460 V	5.50 kW	1769 r/min	9.50 A	0.790	89.70 %	29.80 N·m	7.30

• Frame Material:

  Aluminum


• Frame Size:

  132


• Frequency (f):

  50 Hz


• Gross Weight:

  53kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 89.0 %
  Partial Load (75%) 89.5 %
  Partial Load (50%) 88.6 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 89.7 %
  Partial Load (75%) 89.5 %
  Partial Load (50%) 87.8 %


• IM Class:

  IMB14 IM3601


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 132M 4


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  5.5kW, 4 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GAA132300-CDE)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Output Power:

  5.5 kW


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA132300-BDE


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  447mm


• Product Net Height:

  296mm


• Product Net Weight:

  48kg


• Product Net Width:

  262mm


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA132312-CDE


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  5.5kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB14/IM3601


• Stocked At (Warehouses):

  Menden, Germany
  Shanghai, China


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
