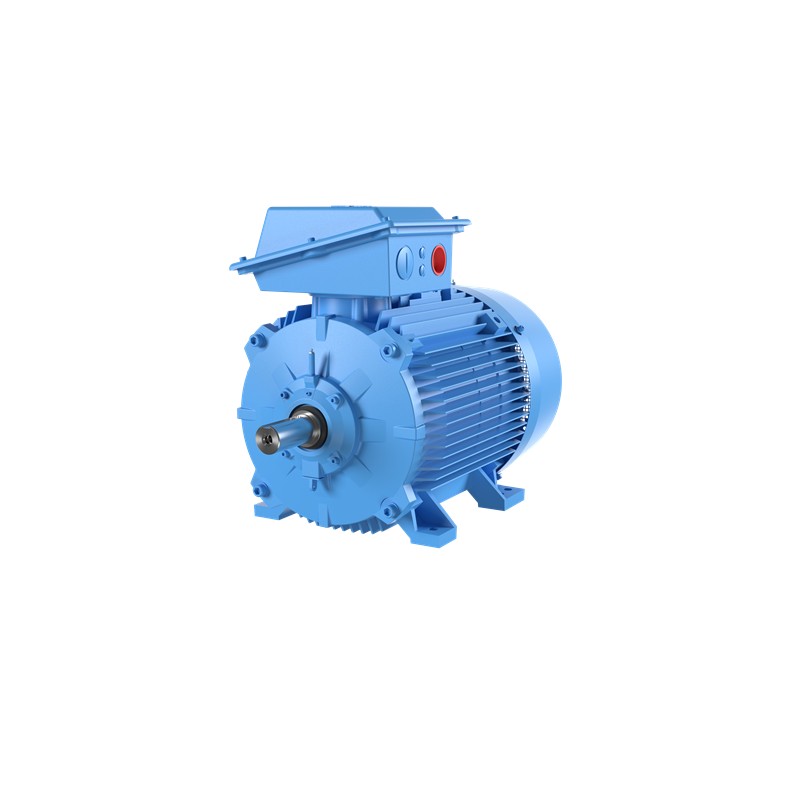

M2BAX 280SMF 3GBA282260-ADF ABB Iron Casting Engine for General Application 75 kW, 1500 rpm, 400/690 V, B3 m..

Additional Information

• ABB Type Designation:

  M2BAX 280SMF 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6316/C3


• Bearing NDE:

  6316/C3


• Connection Configuration:

  D


• Country of Origin:

  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	75.00 kW	1481 r/min	79.60 A	0.830	95.00 %	483.60 N·m	7.90
  D	--	50 Hz	400 V	75.00 kW	1481 r/min	137.00 A	0.830	95.00 %	483.60 N·m	7.90
  Y	--	50 Hz	660 V	75.00 kW	1479 r/min	80.30 A	0.860	95.00 %	484.32 N·m	7.30
  D	--	50 Hz	380 V	75.00 kW	1479 r/min	139.00 A	0.860	95.00 %	484.32 N·m	7.30

• Frame Material:

  Cast Iron


• Frame Size:

  280


• Frequency (f):

  50 Hz


• Gross Weight:

  550kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 95.0 %
  Partial Load (75%) 95.2 %
  Partial Load (50%) 95.1 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 95.4 %
  Partial Load (75%) 95.3 %
  Partial Load (50%) 94.9 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M2BAX 280SMF 4


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  75kW, 4 Poles, Frame Size 280, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA282260-ADF)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Output Power:

  75 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  1012mm


• Product Net Height:

  775mm


• Product Net Weight:

  530kg


• Product Net Width:

  530mm


• Product Type:

  EBA3__M2BAX_CI


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GBA282220-ADM
  3GBA282220-ADM188


• SCIP:

  d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  75kW, 4P, Frame Size 280, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
