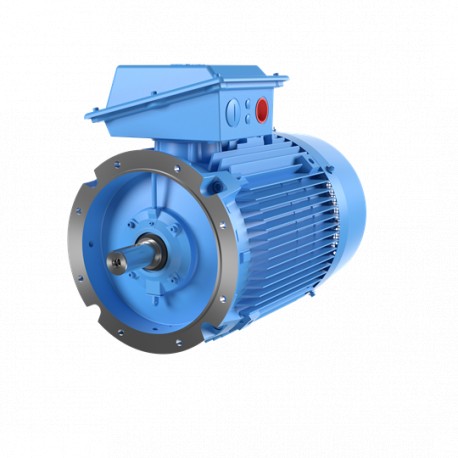

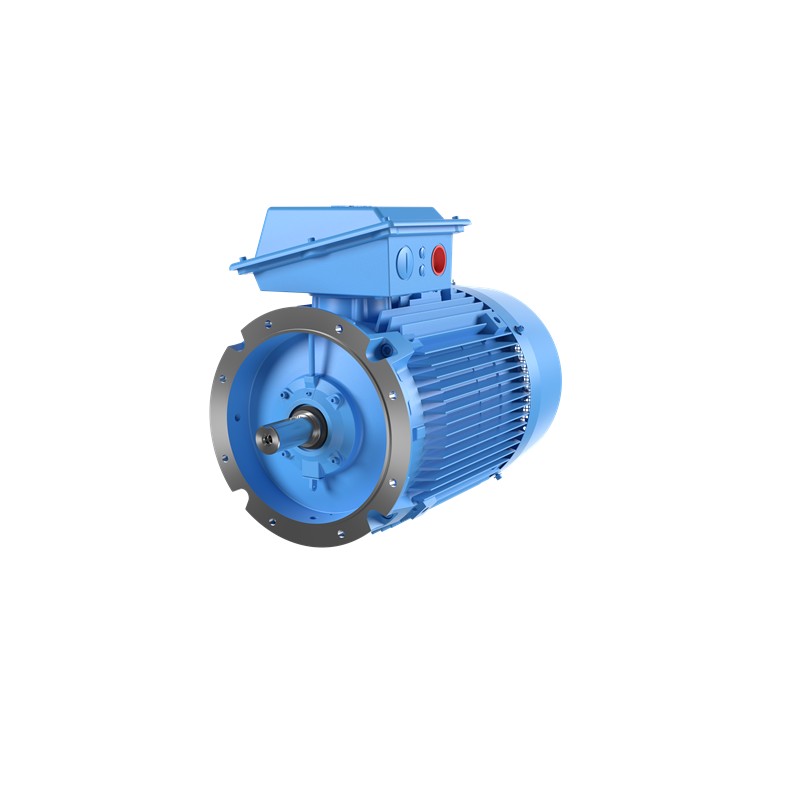

M2BAX 280SMF 3GBA281260-BDF ABB Iron Casting Engine for General Application 75 kW, 3000 rpm, 400/690 V, B5 m..

Additional Information

• ABB Type Designation:

  M2BAX 280SMF 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6316/C3


• Bearing NDE:

  6316/C3


• Connection Configuration:

  D


• Country of Origin:

  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015290


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	75.00 kW	2971 r/min	75.20 A	0.890	94.70 %	241.00 N·m	7.70
  D	--	50 Hz	400 V	75.00 kW	2971 r/min	129.00 A	0.890	94.70 %	241.00 N·m	7.70
  Y	--	50 Hz	660 V	75.00 kW	2966 r/min	77.80 A	0.900	94.70 %	241.00 N·m	7.10
  D	--	50 Hz	380 V	75.00 kW	2966 r/min	135.00 A	0.900	94.70 %	241.00 N·m	7.10

• Frame Material:

  Cast Iron


• Frame Size:

  280


• Frequency (f):

  50 Hz


• Gross Weight:

  547kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 94.7 %
  Partial Load (75%) 94.4 %
  Partial Load (50%) 94.2 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 94.1 %
  Partial Load (75%) 93.7 %
  Partial Load (50%) 92.3 %


• IM Class:

  IMB5 IM3001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M2BAX 280SMF 2


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  75kW, 2 Poles, Frame Size 280, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA281260-BDF)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  75 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  1012mm


• Product Net Height:

  775mm


• Product Net Weight:

  527kg


• Product Net Width:

  530mm


• Product Type:

  EBA3__M2BAX_CI


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GBA281220-BDM188
  3GBA281220-BDM


• SCIP:

  d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  75kW, 2P, Frame Size 280, 3PH, 400V, 50Hz, IP55, IMB5/IM3001


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
