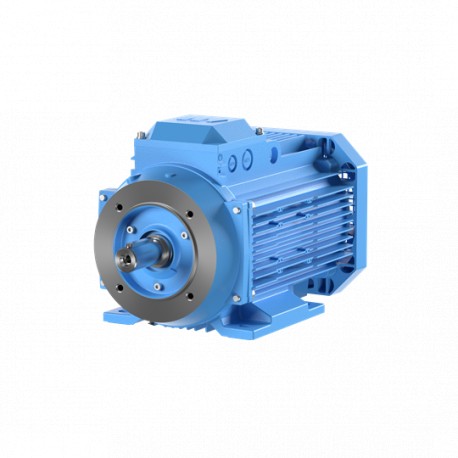

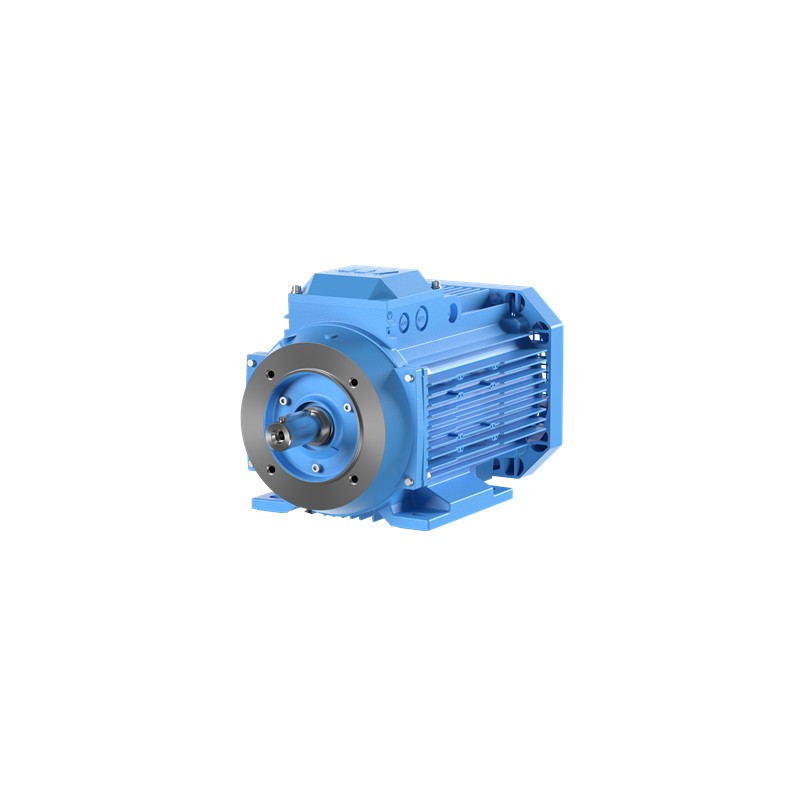

M2AA 71 A 4 3GAA072001-BDE ABB Aluminium motor for General Performance 0,25kW 400/690V, IE2, 4P, mounting B5..

Additional Information

• ABB Type Designation:

  M2AA 71A 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6203-2Z/C3


• Bearing NDE:

  6202-2Z/C3


• Country of Origin:

  Italy (IT)
  Romania (RO)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  D	--	50 Hz	400 V	0.25 kW	1365 r/min	0.72 A	0.760	65.10 %	1.74 N·m	4.00
  D	--	60 Hz	460 V	0.25 kW	1685 r/min	0.66 A	0.680	69.30 %	1.41 N·m	4.80

• Frame Material:

  Aluminum


• Frame Size:

  71


• Gross Weight:

  8.2kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE1
  Full Load (100%) 65.1 %
  Partial Load (75%) 66.0 %
  Partial Load (50%) 62.7 %


• IE Class Data (60 Hz):

  IE Class IE1
  Full Load (100%) 69.3 %
  Partial Load (75%) 68.7 %
  Partial Load (50%) 64.0 %


• IM Class:

  IMB5 IM3001


• Insulation Class:

  ICLF


• Invoice Description:

  M2AA 71A 4


• IP Rating:

  IP55


• Lubrication:

  For life


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Moment of Inertia:

  0.00066 kg/m³


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  5.2kg


• Product Type:

  2AA2__M2AA__IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA072061-BDA
  3GVA072001-BDB


• Selling Unit of Measure:

  piece


• Sound dB (A):

  58 dB(A)


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
