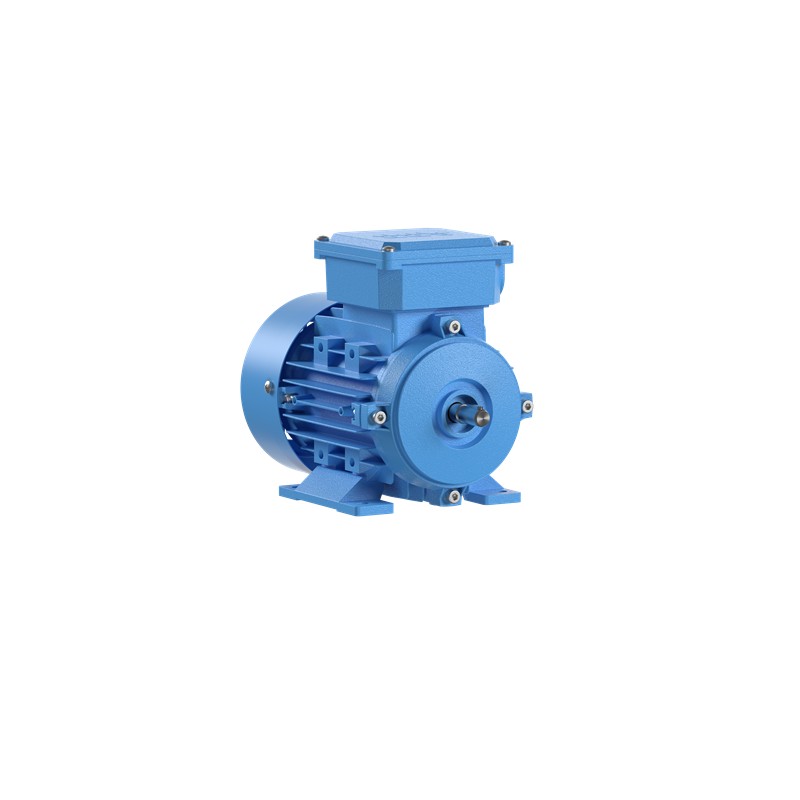

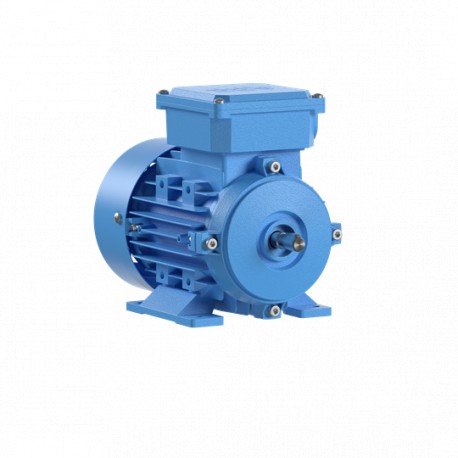

3GAA062002-CDE ABB Aluminium motor for General Performance 0,18kW 400/690V, IE2, 4P, mounting B14 (small fla..

Additional Information

• ABB Type Designation:

  M2AA 63 B 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6201-2Z/C3


• Bearing NDE:

  6201-2Z/C3


• Country of Origin:

  China (CN)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	0.18 kW	1370 r/min	0.38 A	0.610	63.50 %	1.25 N·m	3.70
  D	--	50 Hz	400 V	0.18 kW	1370 r/min	0.67 A	0.610	63.50 %	1.25 N·m	3.70
  D	--	60 Hz	460 V	0.18 kW	1700 r/min	0.61 A	0.550	66.60 %	1.00 N·m	4.00

• Frame Material:

  Aluminum


• Frame Size:

  63


• Gross Weight:

  5.2kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE1
  Full Load (100%) 63.5 %
  Partial Load (75%) 61.0 %
  Partial Load (50%) 54.3 %


• IE Class Data (60 Hz):

  IE Class IE1
  Full Load (100%) 66.6 %
  Partial Load (75%) 63.3 %
  Partial Load (50%) 55.8 %


• IM Class:

  IMB14 IM3601


• Insulation Class:

  ICLF


• Invoice Description:

  M2AA 63 B 4


• IP Rating:

  IP55


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA062002-BDE


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  4.2kg


• Product Type:

  2AA2__M2AA__IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA062062-CDA


• Replacement Product ID (NEW):

  3GAA062312-CDF


• Selling Unit of Measure:

  piece


• Service Factor:

  1.00


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
