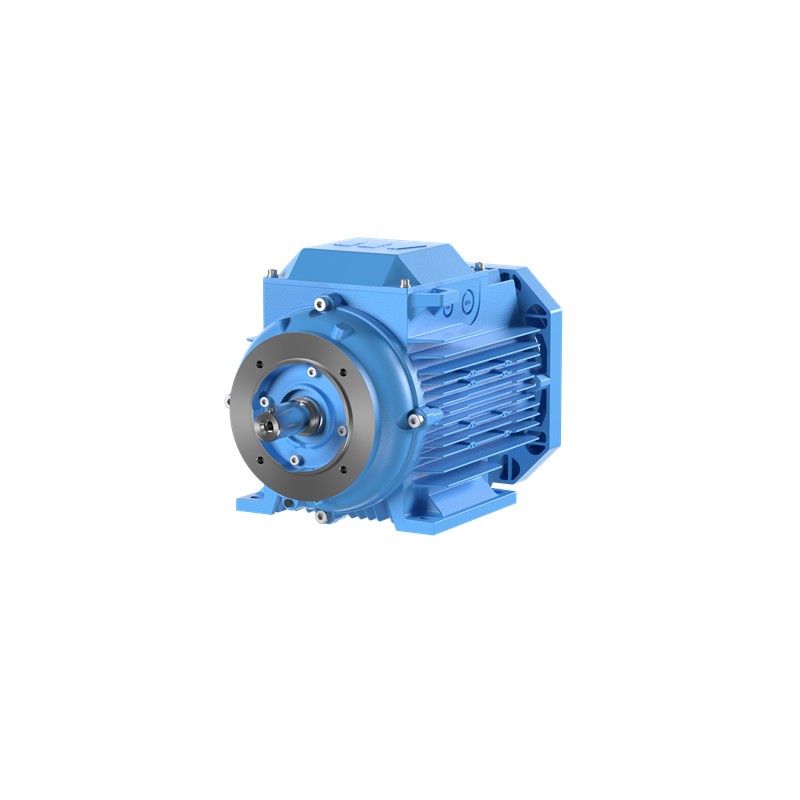

3GAA133214-BDE ABB Aluminium motor for General Performance 5,5kW 400/690V, IE2, 6P, mounting B5 (large flang..

Additional Information

• ABB Type Designation:

  M2AA 132MC 6


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6208-2Z/C3


• Bearing NDE:

  6206-2Z/C3


• Country of Origin:

  Poland (PL)
  Sweden (SE)
  China (CN)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency
  D	--	50 Hz	400 V	5.50 kW	965 r/min	13.70 A	0.670	86.10 %
  Y	--	50 Hz	690 V	5.50 kW	965 r/min	7.90 A	0.670	86.10 %
  D	--	60 Hz	460 V	5.50 kW	1170 r/min	11.50 A	0.680	87.60 %

• Frame Size:

  132


• Gross Weight:

  59kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 86.1 %
  Partial Load (75%) 86.1 %
  Partial Load (50%) 84.3 %


• IE Class Data (60 Hz):

  IE Class IE1
  Full Load (100%) 87.6 %
  Partial Load (75%) 87.3 %
  Partial Load (50%) 85.2 %


• IM Class:

  IMB5 IM3001


• Insulation Class:

  ICLF


• Invoice Description:

  M2AA 132MC 6


• IP Rating:

  IP55


• Lubrication:

  For life


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Moment of Inertia:

  0.04900 kg/m³


• Number of Poles (High):

  6


• Package Level 1 Units:

  1 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  59kg


• Product Type:

  2AA2__M2AA__IE2_AA


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Stocked At (Warehouses):

  Sant Quirze del Vallés - BCN, Spain


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
