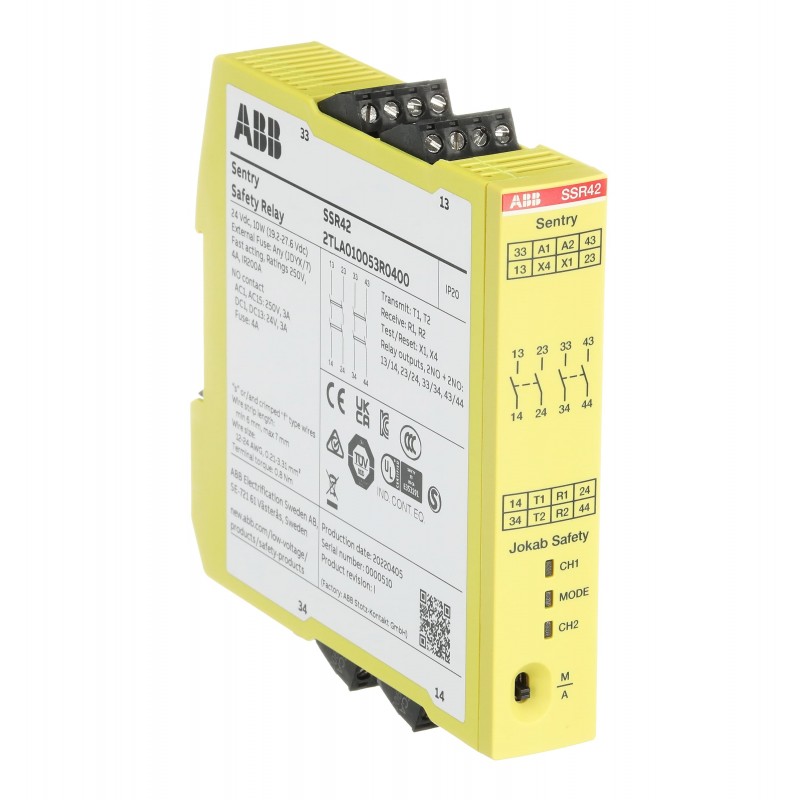

2TLA010053R0400 ABB Safety relay Sentry SSR42 24VDC 2 NO + 2 NO (delayed) OFF-Delay 1.5 seconds
2TLA010053R0400
ABB
Safety relay Sentry SSR42 24VDC - 2 NO + 2 NO (delayed) - OFF-Delay - 1.5 seconds
Sentry SSR42 24VDC
Sentry SSR42 Safety relay
Relays > Device for monitoring of safety-related circuits
Safety Relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 7350024483338 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010068M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010018T0001 |
| EPLAN Data | 9AAC188686_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.207 kg |
| Technical | |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, Manual/Auto reset selectable by switch |
| Timer Relay Type | OFF-Delay |
| Time Range | 1.5 seconds |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 3 A |
| Rated Operational Current DC-13 (Ie) | 3 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...3.3 mm² |
| Crimped Pin 2x0.2...1.5 mm² | |
| Flexible with Ferrule 1x0.2...3.3 mm² | |
| Flexible with Ferrule 2x0.2...1.5 mm² | |
| Solid 1x0.2...3.3 mm² | |
| Solid 2x0.2...1.5 mm² | |
| Tightening Torque | 0.7 N·m |
| Wire Stripping Length | 6.5 mm |
| Recommended Screw Driver | M3.5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-12 AWG |
| Crimped Pin 2x 24-16 AWG | |
| Flexible with Ferrule 1x 24-12 AWG | |
| Flexible with Ferrule 2x 24-16 AWG | |
| Solid 1x 24-12 AWG | |
| Solid 2x 24-16 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 85ea1cc5-4800-4e77-8e8d-4d387c9886c3 Germany |
| Simplified SCIP | 0d7303d0-b29f-4d02-a87a-162ad15bef16 Czech Republic |
| 20d40039-0468-4c79-9f2f-9897e3369168 Germany | |
| 21552f3d-14b8-41ef-8824-289ad940b4c6 Germany | |
| 2abbf80d-42e6-401c-b89f-ae0576d92ac3 Sweden | |
| 5976767f-398f-4d0d-9745-dec44f504cdc Italy | |
| 60160f3c-c2b2-46fa-8993-d4a953a1f93d Poland | |
| 6551a15d-6f4a-43a6-86df-bee04321b6a0 Netherlands | |
| 6ae34f6b-3996-416f-84d0-07c23b0f709d Denmark | |
| 74b2433c-a11f-476d-98bb-2b775e9f16b5 Portugal | |
| 75b77573-f6bb-470d-abf4-bed58c6282a0 Hungary | |
| 7d60119f-38c2-47f1-b345-d3bb1be344c8 Germany | |
| 81d0096d-c3de-4372-b36e-da2b27bc7103 Germany | |
| 87ae3333-b9ad-4a66-8267-03bb6d3a2917 Bulgaria | |
| 89005b9c-b365-4483-90f4-fb6000da1e72 Finland | |
| 8bf7cfe3-f4ee-4be9-b401-87b2edd2e18b Belgium | |
| 8d02673a-9b14-476f-abdd-0edcede8afad Spain | |
| 93bec601-64ff-446e-b607-c8f64a1e972e France | |
| 9ea9600e-5642-4b1e-80b8-572c028a4616 Croatia | |
| a891f37f-fbc1-4c4a-96ad-a3fd6090602f France | |
| af8f0d6a-dd22-4255-99ab-1ce58b901658 Poland | |
| c51da0ba-f2e5-4b53-be7b-aeda4b4094fe Estonia | |
| d4e6db24-35ec-4cb8-b50c-974c9b1ad1cf Greece | |
| e49c4979-5d35-4e11-b954-11fe88974130 Belgium | |
| e5a314d2-6600-4591-8f74-8553f1486613 Poland | |
| ef9fc32b-d80e-48b4-9f4d-973e8ab4e967 Norway | |
| f0aceadb-5a4a-43f2-99e5-737fe8fd5dc7 Sweden | |
| ff791e40-f27c-4ed6-83fa-086b91ee4476 Hungary | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| cULus Certificate | 2TLC010007D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| KC Certificate | 2TLC010048D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.268 kg |
| Package Level 1 EAN | 7350024483338 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 9.9 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712527 |
| E-Number (Sweden) | 3860824 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF ABB SAFETY PRODUCTS CATALOGUE EN.pdf | 42 Mbytes |
|
