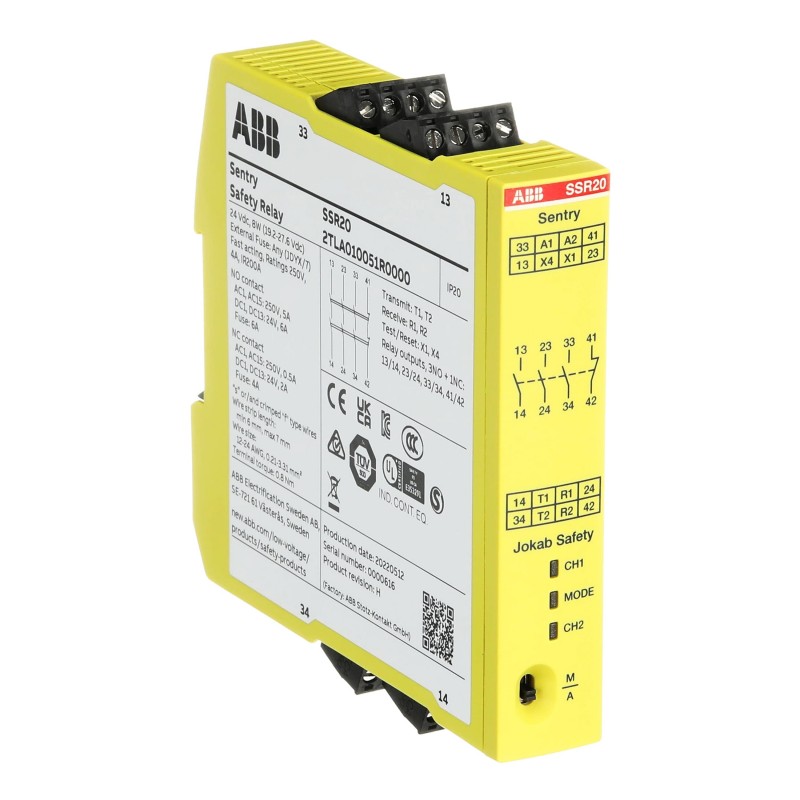

2TLA010051R0000 ABB Safety relay Sentry SSR20 24VDC 3 NO + 1 NC No Time Delay
2TLA010051R0000
ABB
Safety relay Sentry SSR20 24VDC - 3 NO + 1 NC - No Time Delay
Sentry SSR20 24VDC
Sentry SSR20 Safety relay
Relays > Two-hand control relay
Safety Relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 7350024483307 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010065M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010009T0001 |
| EPLAN Data | 9AAC188686_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.207 kg |
| Technical | |
| Function | Safety relay for monitoring of two-hand devices |
| Sub-Function | Start/test input, Manual/Auto reset selectable by switch |
| Timer Relay Type | No Time Delay |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 5 A |
| Rated Operational Current DC-13 (Ie) | 6 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...3.3 mm² |
| Crimped Pin 2x0.2...1.5 mm² | |
| Flexible with Ferrule 1x0.2...3.3 mm² | |
| Flexible with Ferrule 2x0.2...1.5 mm² | |
| Solid 1x0.2...3.3 mm² | |
| Solid 2x0.2...1.5 mm² | |
| Tightening Torque | 0.7 N·m |
| Wire Stripping Length | 6.5 mm |
| Recommended Screw Driver | M3.5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-12 AWG |
| Crimped Pin 2x 24-16 AWG | |
| Flexible with Ferrule 1x 24-12 AWG | |
| Flexible with Ferrule 2x 24-16 AWG | |
| Solid 1x 24-12 AWG | |
| Solid 2x 24-16 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 8b69a476-0bc0-4780-94de-108d30a6e9f7 Germany |
| Simplified SCIP | 032b46da-a0a5-4578-8c61-c66ac977a5b3 Sweden |
| 0c2162c6-c83b-4bdf-bdfb-be38a374e867 Germany | |
| 19fe2671-4d18-42a8-a6c5-210061335871 Spain | |
| 2625e279-a87d-4157-88a3-3bd830ad08c8 Poland | |
| 2c148ff6-6547-4d0f-98b0-d5535bdcf60a Bulgaria | |
| 3a7d138c-852e-47eb-a9ca-8cd2f4409f8f Finland | |
| 4bc60dae-44a7-4cb8-a868-972b2a1d3246 Hungary | |
| 53e831e9-a73a-44f1-b49e-3997705961b4 Estonia | |
| 5da564d2-095e-45ae-b1f5-db58ebc2ac57 France | |
| 604645a9-da16-4996-a0ac-7f98f8edf093 Sweden | |
| 645ffa52-6619-4bd0-af48-e789af40eca4 Poland | |
| 6fdd9e63-7a99-4c17-b015-8f9323cd719b Italy | |
| 710c934d-a50c-438b-b808-9977266541e8 Poland | |
| 7168d5fa-4bfb-4815-9f92-601f011e1ca0 France | |
| 79a09391-7604-4597-823a-04e91b236d11 Belgium | |
| 7c16d804-73ed-4d76-8f1b-e9e7be49b6d9 Croatia | |
| 7e1e7d28-5a0c-409b-ba1c-617c18906e08 Belgium | |
| 7eedd9ad-2352-4616-bae2-1ba619474fd5 Germany | |
| 81d9930a-a388-4fef-8298-ced7a34c8e62 Germany | |
| 871f688d-19eb-427e-8be8-507fb47921e3 Hungary | |
| 9a0f92e4-4e73-45d5-aea3-188408e8705c Denmark | |
| bafde2a2-9d65-4012-bd1d-5957a76ca04c Netherlands | |
| c4bdf558-af6f-4218-bf48-ceec086af026 Greece | |
| ca2cbc40-a3b9-42b9-a2c2-963eaedab097 Norway | |
| ebef45fb-ddff-4063-bce1-ff63b719be8e Germany | |
| ed734152-1470-4846-b74e-88ad789a9d16 Czech Republic | |
| fa57c2ff-dbc6-46f8-b71e-046927025d23 Portugal | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| cULus Certificate | 2TLC010007D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| KC Certificate | 2TLC010048D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.268 kg |
| Package Level 1 EAN | 7350024483307 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 9.9 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001452 - Two-hand control relay |
| ETIM 8 | EC001452 - Two-hand control relay |
| ETIM 9 | EC001452 - Two-hand control relay |
| eClass | V11.0 : 27371821 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712524 |
| E-Number (Sweden) | 3860821 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| With detachable clamps (EF003340) | Yes |
| Type of switch function of the inputs (EF006969) | Normally closed contact and normally open contact |
| With feedback circuit (EF003343) | Yes |
| With start input (EF003342) | Yes |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 3 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Suitable for safety functions (EF001597) | Yes |
| Type class for safety demands according to EN 574 (EF003435) | Type III C |
| SIL according to IEC 61508 (EF009889) | 3 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | Yes |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 120 mm |
| Depth (EF000049) | 120 mm |
