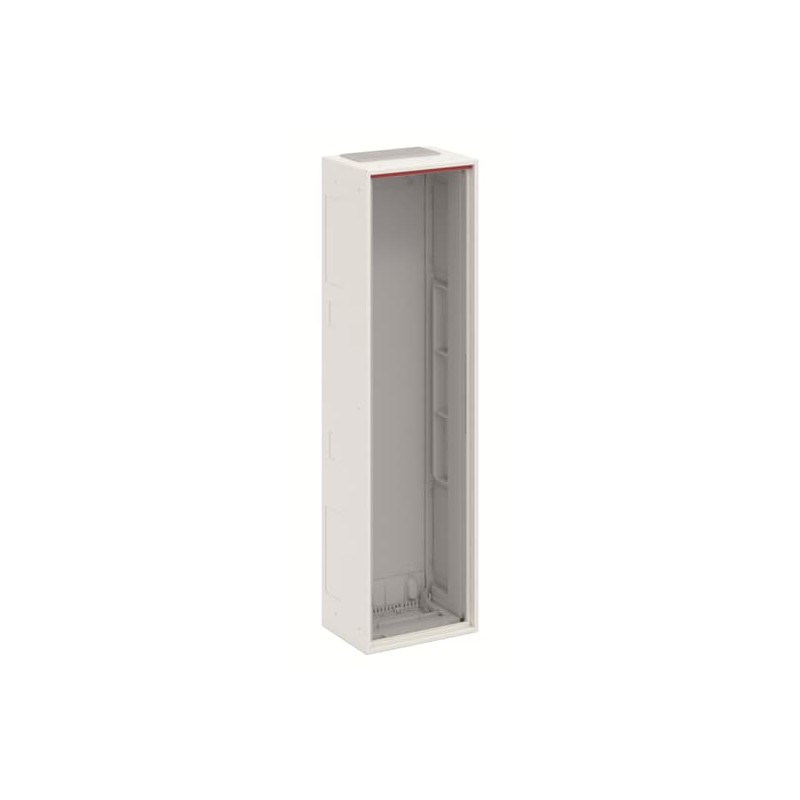

2CPX052083R9999 ABB A17 Arm.IP44,1100x300x215(7RU),without pta. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX052083R9999 ABB A17 Arm.IP44,1100x300x215(7RU),without pta.

2CPX052083R9999

ABB

A17 Arm.IP44,1100x300x215(7RU),without pta.

Wall-mounting cabinet, empty cabinet, for the internal use, without door, class of protection II (double insulated), rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, without door, door out of sheet steel, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 300 x 215, Grid unit 7 GU, panel width 1, Space units 84, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame

More details


Distribution boards > Empty cabinet

Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $215.11
Unit price: $215.11
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
A17B
Product ID:
2CPX052083R9999
EAN:
4011617520832
Catalog Description:
A17B       Wall Cab.1PW7R basic w/o door
Long Description:
Wall-mounting cabinet, empty cabinet, for the internal use, without door, class of protection II (double insulated), rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, without door, door out of sheet steel, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 300 x 215, Grid unit 7 GU, panel width 1, Space units 84, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
\n

Ordering

EAN:
4011617520832
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85381000

Dimensions

Product Net Width:
300 mm
Product Net Height:
1100 mm
Product Net Depth / Length:
215 mm
Product Net Weight:
9.698 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
350.000 mm
Package Level 1 Height:
1160.000 mm
Package Level 1 Depth / Length:
233.000 mm
Package Level 1 Gross Weight:
10.086 kg
Package Level 1 EAN:
4011617520832
Package Level 2 Units:
pallet (lift) 15 piece
Package Level 2 Width:
800.000 mm
Package Level 2 Height:
1600.000 mm
Package Level 2 Depth / Length:
1200.000 mm
Package Level 2 Gross Weight:
165.47 kg

Additional Information

Color:
White
Degree of Protection:
IP00
DIN Place Units:
84
Enclosure Type:
Wall-mounting cabinet
Field Width:
1
Housing Material:
Steel plate/plastic
Interior Depth:
207 mm
Number of Rows:
7
Power Loss:
Δt = 20K 54.2 W

Δt = 25K 71.6 W

Δt = 30K 89.8 W
Product Main Type:
ComfortLine A
Product Name:
A17B       Wall Cab.1PW7R basic w/o door
Protection Class:
Isolated
Surface Finishing:
powder-coated

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK107680A4773
Instructions and Manuals:\n2CPC133150M5601

Classifications

ETIM 6:
EC000058 - Empty cabinet
ETIM 7:
EC000058 - Empty cabinet
Object Classification Code:
U
WEEE Category:
Product Not in WEEE Scope
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf 14 Mbytes
2CPX052083R9999 2CPX052083R9999 EN_2CPX052083R9999.pdf 104 Kbytes 2CPX052083R9999 2CPX052083R9999 EN_2CPX052083R9999.pdf
