> ABB>Boxes and cabinets>2CPX052034R9999 ABB Meter board, empty cabinet, for the internal use, with Door, class of protection II (dou..
Previous Product Next Product

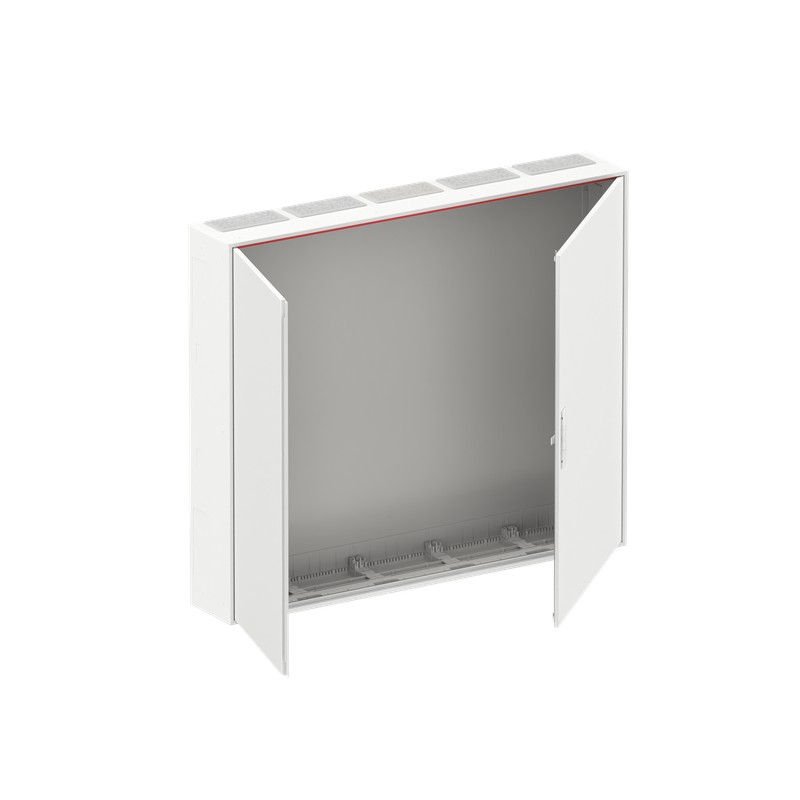

2CPX052034R9999 ABB Meter board, empty cabinet, for the internal use, with Door, class of protection II (dou.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX052034R9999 ABB Meter board, empty cabinet, for the internal use, with Door, class of protection II (dou..

2CPX052034R9999

ABB

Meter board, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP44, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, door opening angle 120 degree, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 1300 x 215, Grid unit 7 GU, panel width 5, Space units 420, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame

More details


Boxes and cabinets

* Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total price: $399.00
Unit price: $399.00

Quantity Price
1+$399.00
2+$399.00
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
A57
Product ID:
2CPX052034R9999
EAN:
4011617520344
Catalog Description:
A57        Wall Cabinet 5PW7R PC2 IP44
Long Description:
Meter board, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP44, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, door opening angle 120 degree, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 1300 x 215, Grid unit 7 GU, panel width 5, Space units 420, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
\n

Ordering

EAN:
4011617520344
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85381000

Dimensions

Product Net Width:
1300 mm
Product Net Height:
1100 mm
Product Net Depth / Length:
215 mm
Product Net Weight:
34.85 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
1350.000 mm
Package Level 1 Height:
1160.000 mm
Package Level 1 Depth / Length:
233.000 mm
Package Level 1 Gross Weight:
36.244 kg
Package Level 1 EAN:
4011617520344
Package Level 2 Units:
pallet (lift) 7 piece
Package Level 2 Width:
1360.000 mm
Package Level 2 Height:
1820.000 mm
Package Level 2 Depth / Length:
1200.000 mm
Package Level 2 Gross Weight:
263.95 kg

Additional Information

Color:
White
Cover Plate Type:
Door
Degree of Protection:
IP44
DIN Place Units:
420
Field Width:
5
Housing Material:
Steel plate/plastic
Interior Depth:
207 mm
Number of Rows:
7
Power Loss:
Δt = 20K 170.3 W

Δt = 25K 224.7 W

Δt = 30K 265.3 W
Product Main Type:
ComfortLine A
Product Name:
A57        Wall Cabinet 5PW7R PC2 IP44
Protection Class:
Isolated
Surface Finishing:
powder-coated

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK107680A4773
Instructions and Manuals:\n2CPC133150M5601

Classifications

ETIM 6:
EC000248 - Unequipped meter cabinet
ETIM 7:
EC000248 - Unequipped meter cabinet
Object Classification Code:
U
WEEE Category:
Product Not in WEEE Scope
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf 59 Mbytes
2CPX052034R9999 2CPX052034R9999 EN_2CPX052034R9999.pdf 287 Kbytes 2CPX052034R9999 2CPX052034R9999 EN_2CPX052034R9999.pdf
