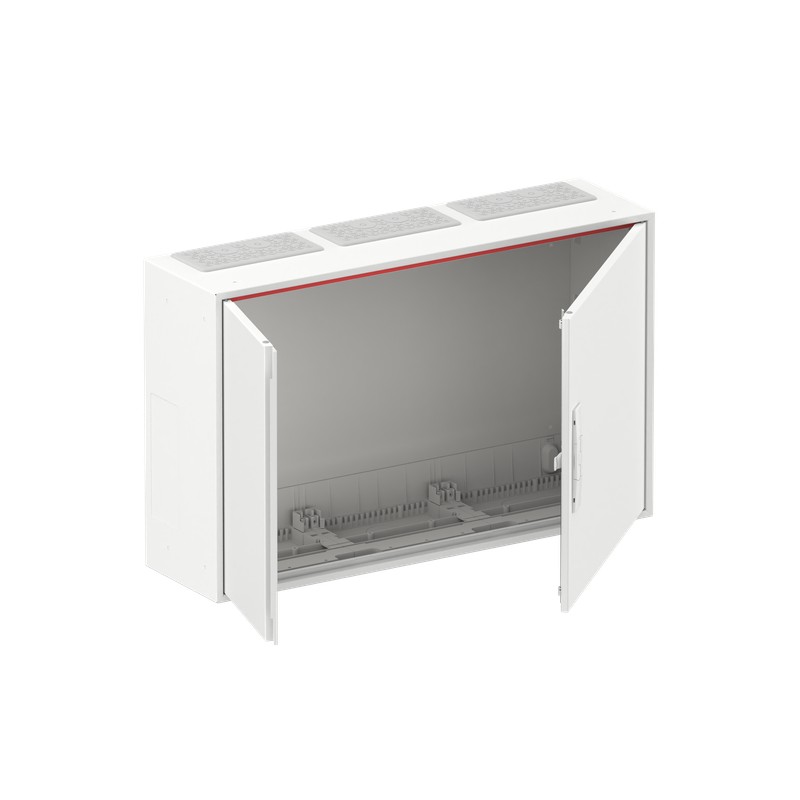

2CPX052012R9999 ABB A33 Arm.IP44,500x800x215(3RU),pta.met.
2CPX052012R9999
ABB
A33 Arm.IP44,500x800x215(3RU),pta.met.
ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 500 mm x 800 mm x 215 mm
Distribution boards > Empty cabinet
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A5802 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 94.87 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 0 % |
| Recycled Cardboard - 42,83 % | |
| Mechanically Recycled Polymer - 0 % | |
| Mechanically Recycled Polymer - 0 % | |
| Recycled Paper - 0 % | |
| Recycled Cardboard - 27,97 % | |
| Extended Product Lifetime | Product Durability |
| Product Modularity | |
| End Of Life Disassembling Instructions | 2CPC200001E0201 |
| Environmental Product Declaration - EPD | 2CPC000001E0201 |
| Technical | |
| Number of Flange Openings | 3 |
| Number of Conduit Inlets | 153 |
| Number of Rows | 3 |
| Configuration Type | pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame |
| Cover Plate Type | Door |
| Enclosure Type | Wall-mounting cabinet |
| Meter Type | " |
| Door Type | Double |
| Accessories Available | Yes |
| DIN Place Units | 108 |
| Impact Resistance Rating | IK07 |
| Electrical | |
| Rated Current (In) | 250 A |
| Power Loss | Δt = 20K - Enclosures 66.8 W |
| Δt = 25K - Enclosures 88.2 W | |
| Δt = 30K - Enclosures 110.7 W | |
| Total 66.8 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel plate/plastic |
| Material | sheet steel |
| Door Material | Steel Sheet |
| Cover Style | with Notch |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 108 |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20251118 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP44 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 36 |
| Product Net Width | 800 mm |
| Product Net Height | 500 mm |
| Product Net Depth / Length | 215 mm |
| Product Net Weight | 13.284 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 190 mm |
| Thickness | Cabinet Plate 0.9 mm |
| Door Plate 0.9 mm | |
| Dimension Diagram | 2CPC000014D0201 |
| 2CPC000015D0201 | |
| Engineering | |
| EPLAN Data | 9AAF603720_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 13.815 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133150M5601 |
| Mounting Type | Surface mounted/recessed mounted/partially recessed mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | With notch |
| Type of door (EF004464) | Double |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | Yes |
| Nominal current (In) (EF008873) | 250 A |
| Height (EF000040) | 500 mm |
| Width (EF000008) | 800 mm |
| Depth (EF000049) | 215 mm |
| Built-in depth (EF000218) | 190 mm |
| Inner depth (EF001131) | 207 mm |
| Material plate thickness cabinet (EF009170) | 0.9 mm |
| Material plate thickness door/cover (EF009171) | 0.9 mm |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Number of modules (EF004427) | 108 |
| Number of rows (EF000266) | 3 |
| Width in number of modular spacings (EF002950) | 36 |
| Number of openings for flange plates (EF009554) | 3 |
| Extension possible (EF001088) | Yes |
| Number of conduit inlets (EF000437) | 153 |
| Housing material (EF001596) | EV002755 |
| Surface protection (EF000139) | Powder coated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | No |
| Suitable for lightning protection (EF007800) | Yes |
| Degree of protection (IP) (EF005474) | IP44 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | IK07 |
| Circuit integrity (EF001613) | None |
| Cover with overpressure release (EF015940) | No |
