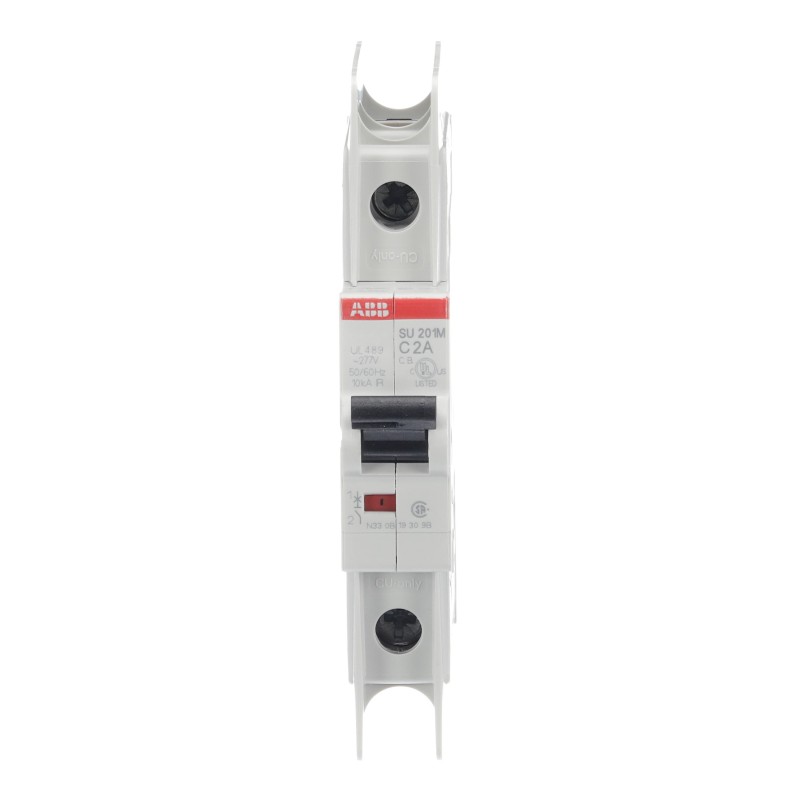

2CDS271337R0024 ABB Miniature Circuit Breaker SU200M 1P C 2 ampere
2CDS271337R0024
ABB
Miniature Circuit Breaker - SU200M - 1P - C - 2 ampere
SU201M-C2 Miniature Circuit Breaker C-Char., 10kA, 2A, 1P UL489
Industrial > S200M
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
More info
▲b'
General Information
Extended Product Type:
SU201M-C2
Product ID:
2CDS271337R0024
EAN:
4016779930772
Catalog Description:
Miniature Circuit Breaker - SU200M - 1P - C - 2 ampere
Long Description:
SU201M-C2 Miniature Circuit Breaker C-Char., 10kA, 2A, 1P UL489
Technical
Standards:
CSA 22.2 No. 5
IEC/EN 60947-2
UL 489
Number of Poles:
1
Number of Protected Poles:
1
Tripping Characteristic:
C
Rated Current (In):
2 A
Rated Operational Voltage:
acc. to IEC 60947-2 230 V AC
Power Loss:
1.8 W
at Rated Operating Conditions per Pole 1.8 W
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Frequency (f):
DC
50 Hz
60 Hz
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V AC) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 11.2 kA
Overvoltage Category:
III
Pollution Degree:
3
Rated Impulse Withstand Voltage (Uimp):
(5.0 kV @ 2000 m)
(6.2 kV @ sea level)
4 kV
Housing Material:
Insulation Group I, RAL 7035
Actuator Material:
Insulation Group II, Black, Sealable
Actuator Marking:
I / O
Contact Position Indication:
Red ON / Green OFF
Degree of Protection:
IP20
Remarks:
IP40 in enclosure with cover
Mechanical Endurance (Nendu):
20000 cycle
Terminal Type:
Double Clamp
Screw Terminal Type:
Failsafe Bi-directional Cylinder-lift Terminal
Connecting Capacity:
Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
Tightening Torque:
2.8 N·m
Recommended Screw Driver:
Pozidriv 2
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Any
Built-In Depth (t2):
69 mm
Installation Size:
acc. to DIN 43880 3
Power Supply Connection:
Arbitrary
Environmental
Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Shock acc. to IEC 60068-2-27:
25g / 2 shocks / 13 ms
Resistance to Vibrations acc. to IEC 60068-2-6:
5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
277 V AC
48 V DC
Connecting Capacity UL/CSA:
Busbar 18-8 AWG
Conductor 18-4 AWG
Interrupting Rating acc. to UL489:
(240 V AC) 10 kA
(277 V AC) 10 kA
(48 V DC) 10 kA
Dimensions
Product Net Width:
17.5 mm
Product Net Depth / Length:
69 mm
Product Net Height:
111 mm
Product Net Weight:
0.125 kg
Container Information
Package Level 1 Units:
carton 1 piece
Package Level 1 Width:
25 mm
Package Level 1 Depth / Length:
116 mm
Package Level 1 Height:
79 mm
Package Level 1 Gross Weight:
0.135 kg
Package Level 1 EAN:
4016779930772
Package Level 2 Units:
72 piece
Package Level 2 Width:
35 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
16 kg
Package Level 2 EAN:
4016779937597
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362010
E-Number (Finland):
3211243
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:\n2CDK400595D2705
Environmental Information:\n9AKK107680A9140
Instructions and Manuals:\n2CDC002177D0202
RoHS Information:\n2CDK400595D2705
Popular Downloads
Data Sheet, Technical Information:\n2CDC002177D0202
Instructions and Manuals:\n2CDC002177D0202
Classifications
ETIM 6:
EC000042 - Miniature circuit breaker (MCB)
ETIM 7:
EC000042 - Miniature circuit breaker (MCB)
ETIM 8:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V7.0 : 27141901
UNSPSC:
39121614
Datasheet - PDF
