2CDS200970R0042 ABB With auxiliary S2C-H10 1NA (15 pcs)
2CDS200970R0042
ABB
With auxiliary S2C-H10 1NA (15 pcs)

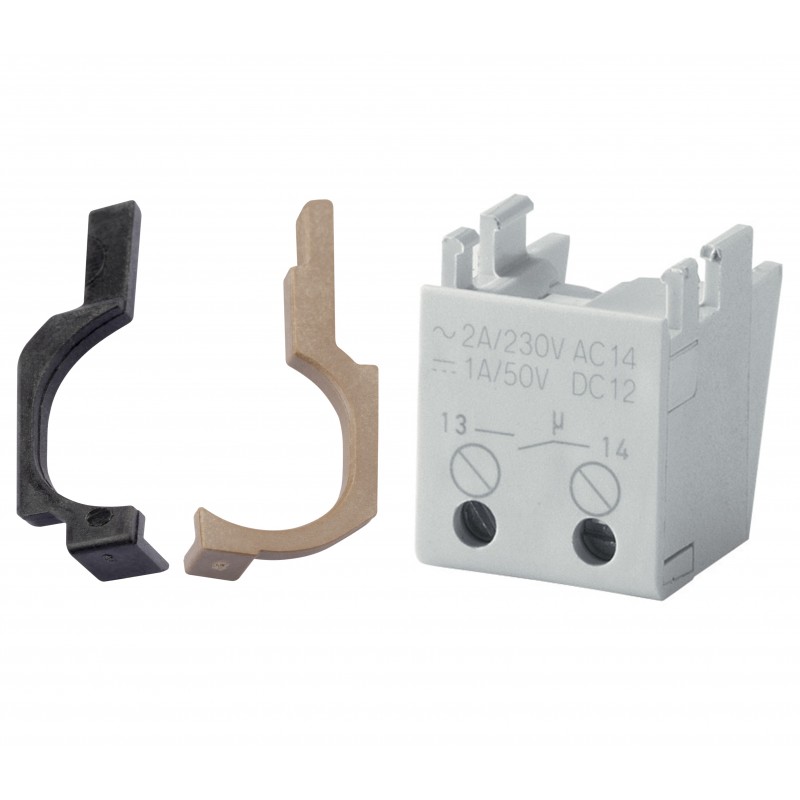

S2C-H10 15X Bottom-fitting auxiliary contact 1NO
Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A9282 |
| Technical | |
| Function | Auxiliary Contact |
| Suitable For | S200 |
| S200M | |
| S200P | |
| S200S | |
| S200 MT | |
| S200 MTR | |
| S200 MUC | |
| S300P | |
| DS-ARC1 | |
| SD200 | |
| DS201(2019) | |
| Suitable for Product Class | Miniature Circuit Breaker |
| Residual Current Device | |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Accessory Type | Auxiliary Contact |
| Electrical | |
| Power Loss | 0.5 W |
| Maximum 0.5 W | |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A4564 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230731 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 2CDK400571D0201 |
| Dimensions | |
| Product Net Width | 17.4 mm |
| Product Net Height | 21.2 mm |
| Product Net Depth / Length | 23.1 mm |
| Product Net Weight | 0.01 kg |
| Ordering | |
| Package Level 1 Units | carton 15 piece |
| Package Level 1 Gross Weight | 0.18 kg |
| E-Number (Finland) | 3210855 |
| E-Number (Norway) | 1628618 |
| E-Number (Sweden) | 2100170 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A4564 |
| Installation | |
| Instructions and Manuals | GHS2007026P0006 |
| Mounting Position | bottom |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| UNSPSC | 39121522 |
| eClass | V11.0 : 27143502 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Standards | CSA 22.2 No. 235 |
| GB/T 14048.5 | |
| UL 1077 | |
| Feature Name | Feature Value |
|---|---|
| Device fitting (EF007826) | Miniature circuit breaker (MCB) |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| With auto test for earth leakage function (EF008727) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
