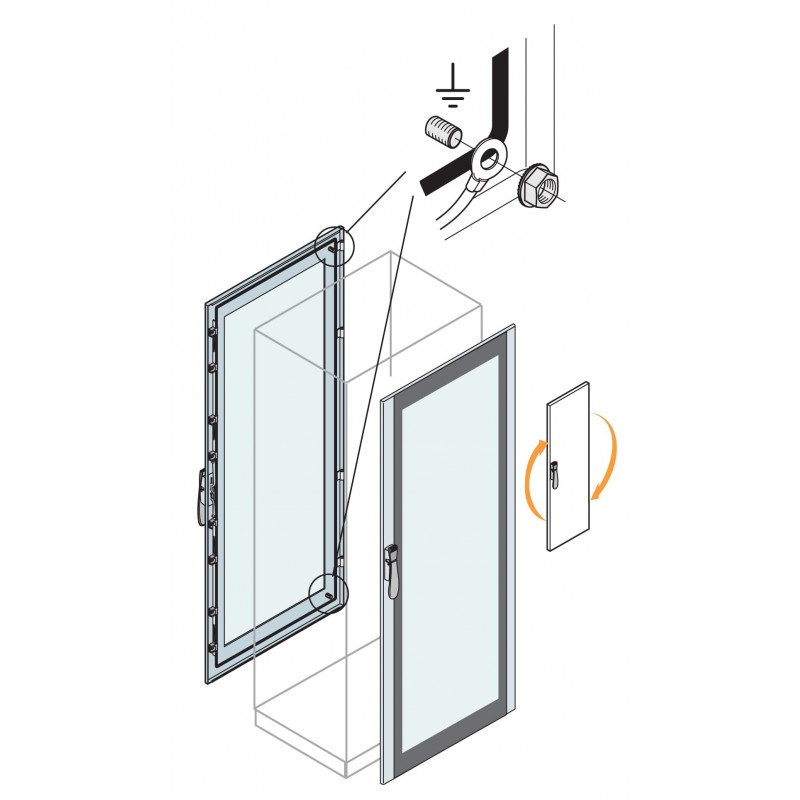

1STQ005330B0000 ABB IS2 Transparent door. IP55 1600x600.RAL7035
1STQ005330B0000
ABB
IS2 Transparent door. IP55 1600x600.RAL7035
Control and Automation Board W 600 mm H 1600 mm D 300 mm
Automation and Control enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 3. Door |
| Enclosure Type | Kit - glazed front door |
| Product Type | 5B5B20B240 |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Glass |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| SCIP | 4527f90d-8cd4-421c-9b80-a97ed1e07c22 Italy |
| Simplified SCIP | 240f4052-9f1c-437c-acfa-481a29413336 Sweden |
| 93297d34-72b5-401f-affa-c383d735a86d Poland | |
| 2226585c-5a36-40d5-8815-9bc000e5be8d Poland | |
| e39e1711-c6fb-46a6-9019-abc97dc1cca2 Norway | |
| 9aa960b6-5187-4bd4-a794-39392eac0de8 Finland | |
| d7657c53-00ed-47ef-a874-616d1fbf2cd8 Bulgaria | |
| 9e47410b-ce83-4246-bc6e-87ea731937bf Hungary | |
| b48ec2bb-217d-446c-a9a6-5673a73724b1 Portugal | |
| 27b27b00-0af2-4533-9bb2-49e24b0d5340 Belgium | |
| c5633e18-1d60-4177-b82c-9fe4bf482d26 Germany | |
| a9d2c7d0-7e56-4efd-8d7d-20b25358c539 Spain | |
| a5789aa5-2e2a-4504-848a-8a0fc9e4f06d France | |
| 9aa9f774-afaa-4adc-8902-5af5edd8bab7 Sweden | |
| 544d784b-8f2d-4ce9-b4a4-a978ec72288c Germany | |
| 9eafc6f0-da29-4f01-9586-bcfbe8c94b60 France | |
| e9c8ac98-1aae-471d-b15c-add2f7f42fa9 Germany | |
| 5979c404-00ea-4eab-9ecc-ca8d255827d2 Greece | |
| 33a65b03-8277-4045-9c1a-b5e85e881b82 Netherlands | |
| c23cff3d-5dcb-4a64-9565-57996b8ad808 Estonia | |
| 7aef855a-976e-482f-8a78-7689ea3ae459 Hungary | |
| e24dea7a-b573-43ee-978e-2da22141b0b0 Germany | |
| 465704c7-9173-40bd-a333-8b4a30a18e07 Denmark | |
| 4a05f0ad-21e9-4e87-868d-5e68eec80681 Croatia | |
| 0c0a67f5-c247-4e73-984d-d254189d16c5 Germany | |
| 6cc96d9a-25ea-4afb-bb99-8333805c0303 Poland | |
| 87e0828a-65e1-4a46-a334-a74f026b2af6 Czech Republic | |
| 7f22a9e1-772f-4a27-9e09-11f0128e56be Belgium | |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 594 mm |
| Product Net Height | 1605 mm |
| Product Net Depth / Length | 46 mm |
| Product Net Weight | 14.246 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1600 mm |
| Reference Width | 600 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 14.246 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Kit |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.1 : 27182204 |
| Object Classification Code | U |
| Standards | NEMA 1, 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN.pdf | 138 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN.pdf | 45 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES EN.pdf | 32 Mbytes |
|
| 1STQ005330B0000 1STQ005330B0000 EN_1STQ005330B0000.pdf | 84 Kbytes |
|
