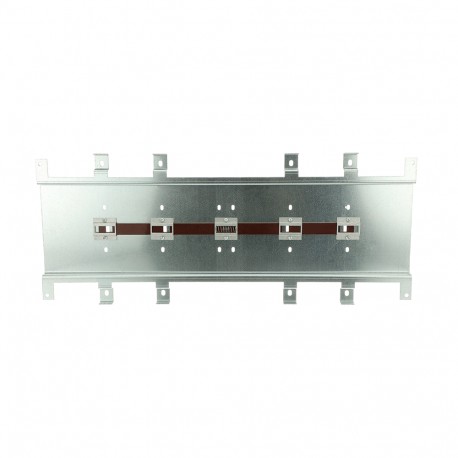

1SFN036503R1001 ABB VM1650H Horizontal mechanical interlocking
1SFN036503R1001
ABB
VM1650H Horizontal mechanical interlocking
VM1650H Mechanical Interlock
Low-voltage industrial components > Mechanic interlock for switch
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC101012M5501 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 870 mm |
| Product Net Depth / Length | 155 mm |
| Product Net Height | 334 mm |
| Product Net Weight | 6 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF1350 |
| AF1650 | |
| AF2050 | |
| AF2650 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Mechanical Interlock Unit |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cUL Certificate | UL_20130930-E73397 |
| Declaration of Conformity - CE | 2CMT005309 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 870 mm |
| Package Level 1 Depth / Length | 334 mm |
| Package Level 1 Height | 155 mm |
| Package Level 1 Gross Weight | 6.1 kg |
| Package Level 1 EAN | 7320500495056 |
| External Classifications and Standards | |
| Object Classification Code | R |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Feature Name | Feature Value |
|---|---|
| Auxiliary contacts, extendable (EF001450) | No |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MOTOR PROTECTION EN.pdf | 240 Mbytes |
|
| 1SFN036503R1001 1SFN036503R1001 EN_1SFN036503R1001.pdf | 202 Kbytes |
|
