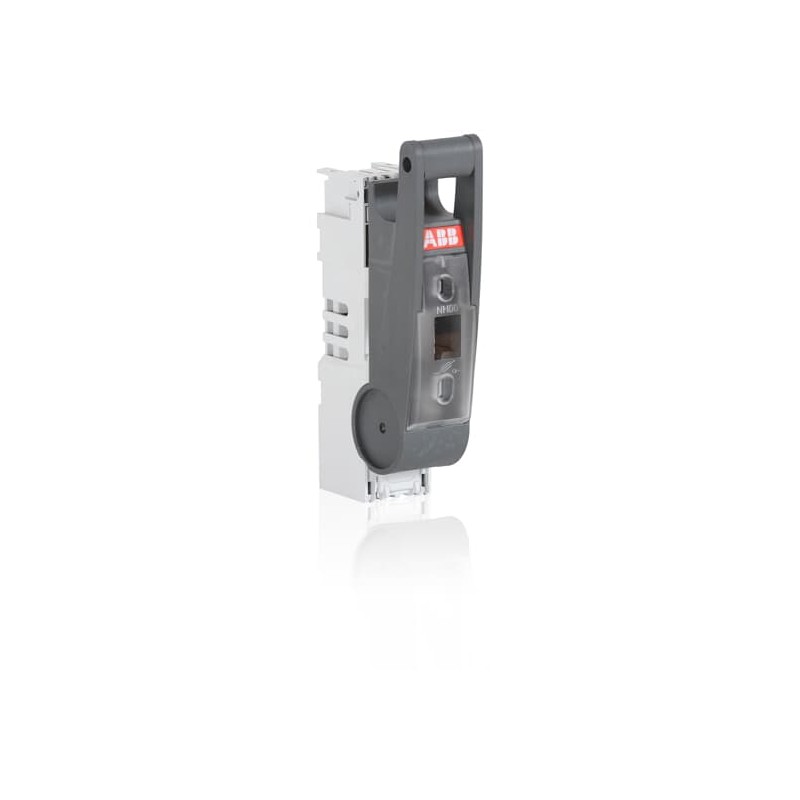

1SEP600113R0003 ABB XLP00 160A 1P fuse disconnector
1SEP600113R0003
ABB
XLP00 160A 1P fuse disconnector
XLP00-1P-2M8 Fuse Switch Disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312012D0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Environmental | |
| Degree of Protection | IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | China |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 185 mm |
| Product Net Weight | 0.26 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 40 mm |
| Package Level 1 Depth / Length | 185 mm |
| Package Level 1 Height | 88 mm |
| Package Level 1 Gross Weight | 0.26 kg |
| Package Level 1 EAN | 7025840086505 |
| Package Level 2 EAN | 7025840086505 |
| Technical | |
| Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH00 |
| NH000 | |
| Fuse System | DIN |
| Handle Type | Front cover 1P |
| Mounting Type | Baseplate |
| Number of Poles | 1P |
| Power Loss | at Rated Load 3.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 125 A |
| Rated Operational Current AC-22B (Ie) | (500 V) 160 A |
| Rated Operational Current DC-22B | (220 V) 160 A |
| Rated Operational Voltage | 220 V DC |
| 500 V AC | |
| 690 V AC | |
| Rated Voltage (Ur) | 220 V DC |
| 500 V AC | |
| 690 V AC | |
| Special Functions | Not Included |
| Standards | IEC60947-3 |
| GB/T14048.3 | |
| Terminal Type | Bolt |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500050P0001 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171960 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
