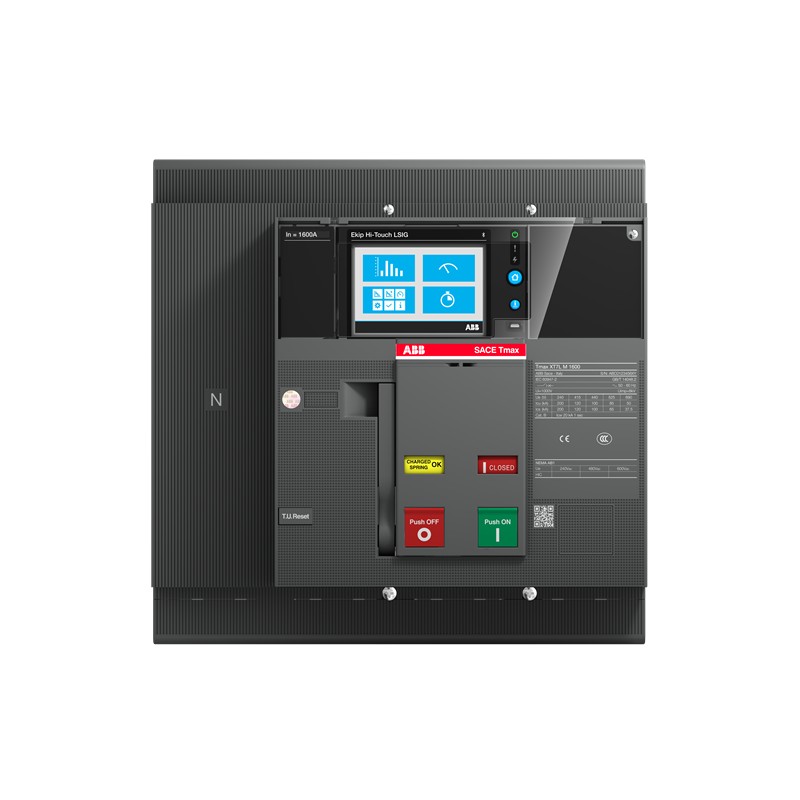

1SDA101778R1 ABB XT7L M 800 Ekip Touch LSI In 800A 4p F F
1SDA101778R1
ABB
XT7L M 800 Ekip Touch LSI In=800A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4b88c780-ddd8-491d-9a7a-d2f9f7e2824f Italy |
| Simplified SCIP | 91edb4e5-2655-4a5b-904e-33c99e29b7a7 Denmark |
| a7431bda-d1f1-4200-85f7-b443754d52bf Bulgaria | |
| 266e4f3f-6159-4817-981f-920844b0c1e7 Belgium | |
| ae8dd7f6-97a9-4852-86f9-0e2dd411814f Norway | |
| 569e3d31-953d-49cc-8c95-ba0096828c4e Germany | |
| 4d4b1695-27b3-4ee4-8067-63567d023004 Belgium | |
| 569e3d31-953d-49cc-8c95-ba0096828c4e Germany | |
| 266e4f3f-6159-4817-981f-920844b0c1e7 Belgium | |
| 0a75fdba-8d4f-4e95-9f2d-e34836aa15f3 Germany | |
| 7429e3bc-4466-4442-bcaf-42900a793a0a Finland | |
| 8ddfb29f-9147-424c-a941-0d48b1995b48 Czech Republic | |
| 492c4bfe-2221-4491-8bd8-57c6fbc5a5c8 Germany | |
| 33a9ddce-a375-4074-9ade-beb539f44fdf Sweden | |
| 234b2040-b22e-4dc1-8c1d-552f929a51d1 Poland | |
| 6bd0184f-431b-4108-af79-ea35122e1aa1 Greece | |
| 98131d5c-4a90-4291-a3e2-96c6383d0f90 Portugal | |
| e0ca380e-4625-4ff0-865b-c610b6c3b1a3 Poland | |
| 158a3a9f-41fb-4361-b347-540989d5ad88 Spain | |
| 234b2040-b22e-4dc1-8c1d-552f929a51d1 Poland | |
| 7429e3bc-4466-4442-bcaf-42900a793a0a Finland | |
| 492c4bfe-2221-4491-8bd8-57c6fbc5a5c8 Germany | |
| 3e5053c5-614d-415d-ae81-86a7f0c78442 Germany | |
| 7a2da792-9f87-4a7b-aada-1e9b03327b7a Croatia | |
| 98131d5c-4a90-4291-a3e2-96c6383d0f90 Portugal | |
| 02e85659-3f34-4519-9679-7730d9bba0bf Germany | |
| 8ddfb29f-9147-424c-a941-0d48b1995b48 Czech Republic | |
| a7431bda-d1f1-4200-85f7-b443754d52bf Bulgaria | |
| b2b183ea-f777-4d6d-b5e2-fdbb021bc033 Netherlands | |
| 728b0f14-1ee3-4114-bd38-c84cc5dd6df2 France | |
| 7a2da792-9f87-4a7b-aada-1e9b03327b7a Croatia | |
| ae8dd7f6-97a9-4852-86f9-0e2dd411814f Norway | |
| 6bd0184f-431b-4108-af79-ea35122e1aa1 Greece | |
| 91edb4e5-2655-4a5b-904e-33c99e29b7a7 Denmark | |
| 2cf1a308-6ba2-4a33-a0aa-48bec236be86 Poland | |
| d860d97d-1a68-4182-a8d6-bd393b505443 Sweden | |
| b2b183ea-f777-4d6d-b5e2-fdbb021bc033 Netherlands | |
| 0a75fdba-8d4f-4e95-9f2d-e34836aa15f3 Germany | |
| 69b9f63f-d203-4cd5-a985-903287760b57 France | |
| f817f6c5-71f1-414c-9fc8-fbf557d01447 Hungary | |
| 158a3a9f-41fb-4361-b347-540989d5ad88 Spain | |
| 767381af-f3d6-4e85-8075-6a966883f13f Hungary | |
| f2794eb1-2d59-4e5f-bc56-68e60d63159a Estonia | |
| e0ca380e-4625-4ff0-865b-c610b6c3b1a3 Poland | |
| f817f6c5-71f1-414c-9fc8-fbf557d01447 Hungary | |
| f2794eb1-2d59-4e5f-bc56-68e60d63159a Estonia | |
| 69b9f63f-d203-4cd5-a985-903287760b57 France | |
| 767381af-f3d6-4e85-8075-6a966883f13f Hungary | |
| 4d4b1695-27b3-4ee4-8067-63567d023004 Belgium | |
| 728b0f14-1ee3-4114-bd38-c84cc5dd6df2 France | |
| 33a9ddce-a375-4074-9ade-beb539f44fdf Sweden | |
| 2cf1a308-6ba2-4a33-a0aa-48bec236be86 Poland | |
| d860d97d-1a68-4182-a8d6-bd393b505443 Sweden | |
| 3e5053c5-614d-415d-ae81-86a7f0c78442 Germany | |
| 02e85659-3f34-4519-9679-7730d9bba0bf Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XLEDEFAZZAAAA00000 |
| E-Number (Norway) | 4380945 |
| EAN | 8056221018227 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221018227 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
