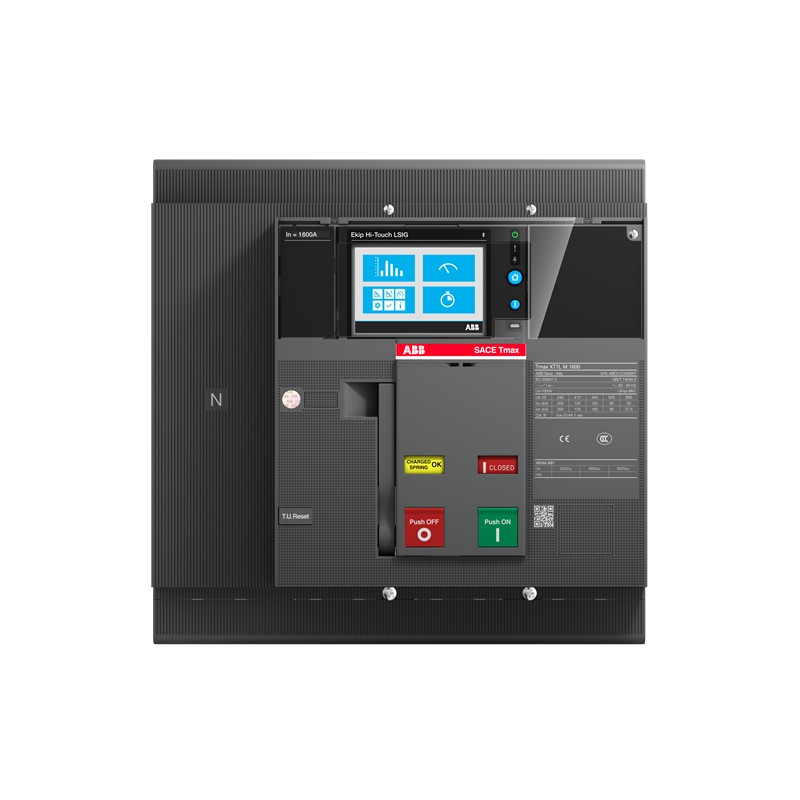

1SDA101730R1 ABB XT7H M 800 Ekip Touch Meas.LSI 800 4p FF
1SDA101730R1
ABB
XT7H M 800 Ekip Touch Meas.LSI 800 4p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b221dc6c-c874-4e65-9ace-d0bdd54fc8ef Italy |
| Simplified SCIP | bfa3845e-24bc-4d74-8109-2b1f0a12e2f6 Germany |
| 96345678-2e60-471f-84d3-b63dfc38d2ff France | |
| f8811b1b-886d-460e-aa19-411a1d13fc06 France | |
| 909cf725-ab4e-4453-a18d-e04a135360c5 Croatia | |
| 7cbb4279-1d88-4ff6-842f-47b29b999a20 Sweden | |
| c2f3b778-5309-4368-b8e1-540453d28656 Belgium | |
| 6ee8d818-83b3-4a9c-ac31-1baf65c32b3f Bulgaria | |
| 06d380b0-54e5-4efe-b6e7-75b168e1a77f Sweden | |
| 500d4b79-9438-4177-be5c-9f939a899d1e Denmark | |
| d8ddf0ca-97cc-4c57-a49b-25ce57738316 Germany | |
| b4ecf354-759c-4ed3-9514-9a0f37bce9ba Greece | |
| 1ac44ff7-2c15-4cab-9e03-addc10c05ffa Estonia | |
| 106d38fb-2038-41e7-b6dd-8096e811c65f Hungary | |
| 5925bbf4-685f-404e-a8ad-4e224b11cb5e Portugal | |
| a746c7bd-3a82-4908-b430-8be047291e9d Germany | |
| 57f51eac-ba28-40de-8ad8-c97f6e0e8ac1 Belgium | |
| f9fe5150-f7e9-40e9-848e-6751263dfc10 Poland | |
| a3f8e354-b429-4c18-9bce-4c1e0d3b7c67 Poland | |
| bf1fcebd-6798-495f-9895-2b4e0fb80555 Norway | |
| 3937305c-8cce-4bb0-a453-1b10c48bc801 Finland | |
| 48043add-6955-4b1c-8c73-3afb559062d0 Germany | |
| 439f122e-a779-4452-9260-4df8e3240e7c Germany | |
| 2c9e08be-0a0d-4105-bc1f-2e040255863c Poland | |
| 41fcb3bc-2ea6-4cc7-856f-1e42ad3bec60 Czech Republic | |
| 3549a3ca-b4fb-4c36-b60f-af919b8136e7 Netherlands | |
| ca2cbdec-8935-416d-9731-e6f040ec1a73 Spain | |
| 8f0e8291-9753-4cb0-b0b6-16b3a5980a42 Hungary | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XHEDGFAZZAAAA00000 |
| E-Number (Norway) | 4380925 |
| EAN | 8056221017749 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017749 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101730R1 1SDA101730R1 EN_1SDA101730R1.pdf | 605 Kbytes |
|
