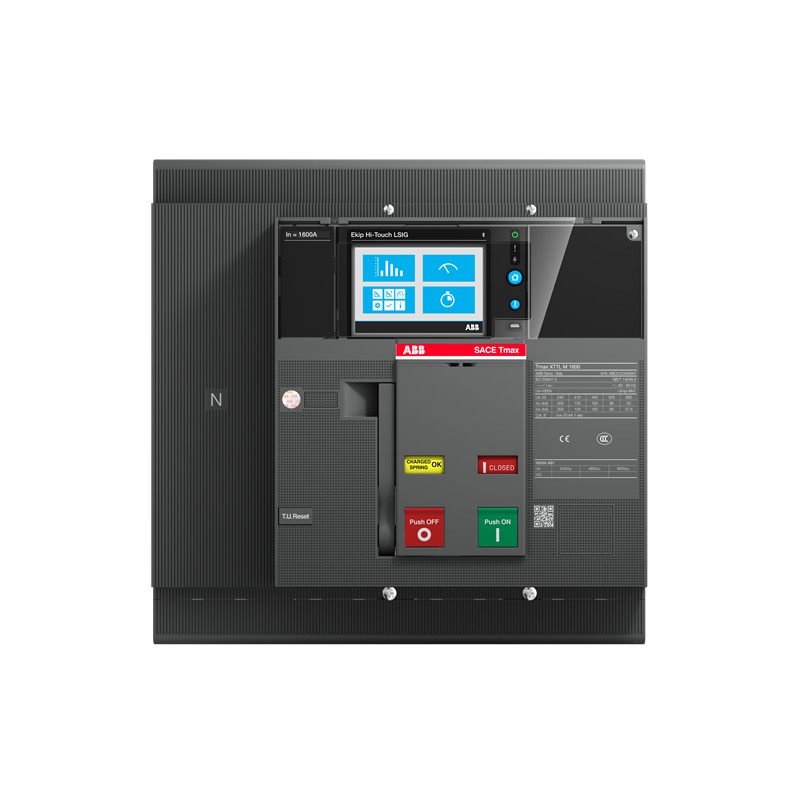

1SDA101688R1 ABB XT7S M 1250 Ekip Hi-Touch LSIG 1250 4pFF
1SDA101688R1
ABB
XT7S M 1250 Ekip Hi-Touch LSIG 1250 4pFF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | bbab21a1-b399-4641-9761-b8943b866726 Italy |
| Simplified SCIP | 4b2efd0d-045e-4d5d-8617-2241518eca1c Finland |
| fbf7fe13-4a34-404b-a67f-48c9d6e92b6f Poland | |
| 97c7634f-01bf-4662-928b-a82ccd1f2400 Greece | |
| fd289b16-fedb-4ce1-a318-1d74b8955adc Portugal | |
| 0b053f81-cf51-4f20-86e7-f188cf68e4d3 France | |
| 9f5d5ce4-7397-4bca-b6a4-df1a4e8aa739 Hungary | |
| 3ab8eede-e065-445f-8e9f-1761683a2fd3 Spain | |
| b8d87db8-af08-48b6-b446-418c9e764551 Estonia | |
| 444f556a-6b02-4778-8076-60366242a728 Poland | |
| aa0347cc-5bad-41d3-94b9-f5ae26cb86a5 Norway | |
| ec2e8cc0-be55-42e7-b568-c33f1fa56bf2 Poland | |
| 7feae5b4-2610-4bcf-8330-ad68eddffcf5 Denmark | |
| ef5b3329-3d7d-4b49-9685-099abba52373 Croatia | |
| 97c7634f-01bf-4662-928b-a82ccd1f2400 Greece | |
| 93165afa-37e1-4a46-a8a7-f6bf66a88b75 France | |
| 1bdffc40-6a47-448c-a340-58fbf1960d69 Germany | |
| fd289b16-fedb-4ce1-a318-1d74b8955adc Portugal | |
| 413b3210-5aac-4a3e-84bd-178555e2f0a1 Germany | |
| c3a7f4c2-93ac-4a98-abd2-6156c350eeef Netherlands | |
| ab01c56f-6b68-4d53-adcd-991b9c4a815a Sweden | |
| ef5b3329-3d7d-4b49-9685-099abba52373 Croatia | |
| 22d90e9c-9619-4d51-9f79-aa39a5702e06 Germany | |
| c599bc9d-c688-498f-808f-fcc8ce15a157 Germany | |
| ec2e8cc0-be55-42e7-b568-c33f1fa56bf2 Poland | |
| 3ab8eede-e065-445f-8e9f-1761683a2fd3 Spain | |
| b855c9c7-fe11-4656-a246-16fd198e9965 Bulgaria | |
| 9f5d5ce4-7397-4bca-b6a4-df1a4e8aa739 Hungary | |
| fbf7fe13-4a34-404b-a67f-48c9d6e92b6f Poland | |
| 0ecbf4eb-339c-425f-8684-d9efe7ba0950 Hungary | |
| 0b053f81-cf51-4f20-86e7-f188cf68e4d3 France | |
| 5cd267b8-5ec5-411d-b97e-5b8a7878706f Czech Republic | |
| b855c9c7-fe11-4656-a246-16fd198e9965 Bulgaria | |
| c3a7f4c2-93ac-4a98-abd2-6156c350eeef Netherlands | |
| 0ecbf4eb-339c-425f-8684-d9efe7ba0950 Hungary | |
| 5cd267b8-5ec5-411d-b97e-5b8a7878706f Czech Republic | |
| b8d87db8-af08-48b6-b446-418c9e764551 Estonia | |
| 93165afa-37e1-4a46-a8a7-f6bf66a88b75 France | |
| 22d90e9c-9619-4d51-9f79-aa39a5702e06 Germany | |
| ab01c56f-6b68-4d53-adcd-991b9c4a815a Sweden | |
| 413b3210-5aac-4a3e-84bd-178555e2f0a1 Germany | |
| 2bd57a2e-53dd-413c-87c8-2b66b4dc8891 Belgium | |
| 444f556a-6b02-4778-8076-60366242a728 Poland | |
| 1f14df78-4035-471e-a863-3ddc22a6b456 Sweden | |
| 1f14df78-4035-471e-a863-3ddc22a6b456 Sweden | |
| c599bc9d-c688-498f-808f-fcc8ce15a157 Germany | |
| 850cd3c4-8d1d-47bd-8b40-2fcf27c6b160 Germany | |
| e2fdec9a-3ee9-40af-9a7f-9221a116630e Belgium | |
| 4b2efd0d-045e-4d5d-8617-2241518eca1c Finland | |
| 2bd57a2e-53dd-413c-87c8-2b66b4dc8891 Belgium | |
| e2fdec9a-3ee9-40af-9a7f-9221a116630e Belgium | |
| aa0347cc-5bad-41d3-94b9-f5ae26cb86a5 Norway | |
| 1bdffc40-6a47-448c-a340-58fbf1960d69 Germany | |
| 850cd3c4-8d1d-47bd-8b40-2fcf27c6b160 Germany | |
| 7feae5b4-2610-4bcf-8330-ad68eddffcf5 Denmark | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEKLFAZZAAAA00000 |
| EAN | 8056221017329 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017329 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1875.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101688R1 1SDA101688R1 EN_1SDA101688R1.pdf | 605 Kbytes |
|
