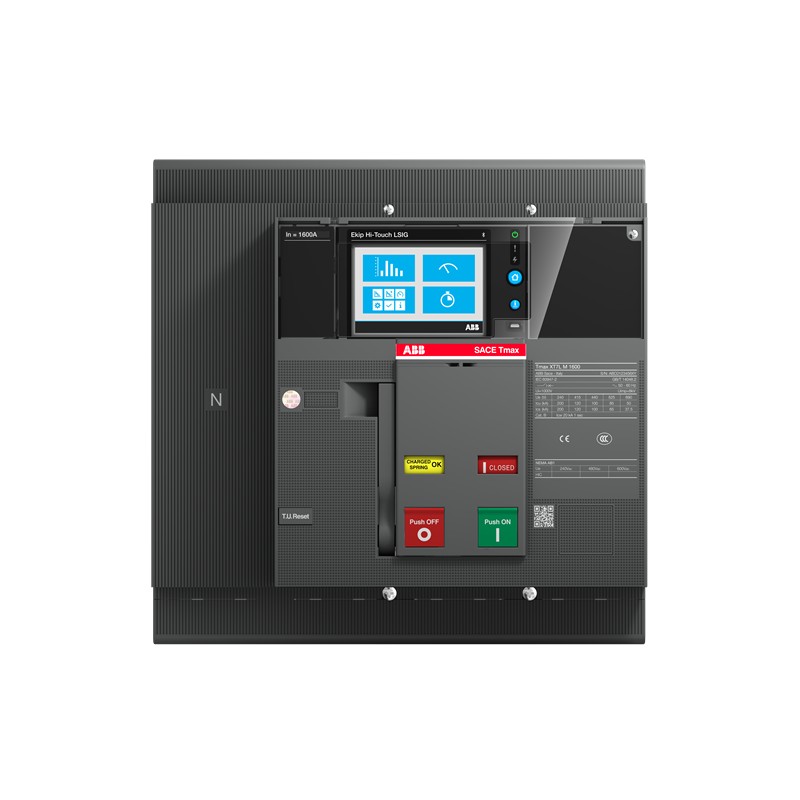

1SDA101686R1 ABB XT7S M 800 Ekip Hi-Touch LSIG In800 4pFF
1SDA101686R1
ABB
XT7S M 800 Ekip Hi-Touch LSIG In800 4pFF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 13243c20-276e-46fc-9626-c8e3ac516a34 Italy |
| Simplified SCIP | ed460b78-5e19-4074-8bbf-b564892f1102 Germany |
| 69432a6f-8bed-4949-9092-129de2b517b1 Netherlands | |
| 5f3e23af-2927-4609-9735-bc40d74dade8 Sweden | |
| d8021a33-4053-4806-b546-79bc93153766 Greece | |
| bc0db621-bc3f-44fe-8a7c-32c448595f9d Norway | |
| 80bebae0-b43b-4427-b65e-273cd8c678a9 France | |
| b1718900-3e4c-4770-ab5f-867886554714 Germany | |
| f3e8471e-5ed4-4730-9130-28162c7dfa4f Croatia | |
| ab0e512f-1e73-49f1-ba07-7d4f39da019c Poland | |
| 67879de6-605d-4ebd-9089-5ce2eb0d12ea Poland | |
| 9b6944fe-4406-449b-8af3-12f7077f34e7 Denmark | |
| 5a5e0e54-48d6-40e2-a3c4-d5920c924353 Poland | |
| 9e5581b5-7b20-40fa-9fb8-42d8c2d8676b Portugal | |
| d8021a33-4053-4806-b546-79bc93153766 Greece | |
| 10c58572-6fb1-43fc-848d-791b049a58e3 Germany | |
| 3144ff84-b8f6-496b-8bda-a18b39abf1af France | |
| f0b41527-6727-402d-a60f-b684f9ac090e Spain | |
| 5c0b32a5-c29b-451e-8b33-b26e92f72b58 Hungary | |
| ed460b78-5e19-4074-8bbf-b564892f1102 Germany | |
| 63a2052b-40d5-4132-8bc4-27bf2d530dc9 Germany | |
| 274e0098-bdba-4cb5-9fe9-44d1a6f1497c Belgium | |
| f3c324db-4ada-4370-b5b5-e506965c931d Estonia | |
| 5c0b32a5-c29b-451e-8b33-b26e92f72b58 Hungary | |
| 040252ea-8bff-4796-a04a-877208222e23 Hungary | |
| 80bebae0-b43b-4427-b65e-273cd8c678a9 France | |
| 5f3e23af-2927-4609-9735-bc40d74dade8 Sweden | |
| ab0e512f-1e73-49f1-ba07-7d4f39da019c Poland | |
| 231b7b7e-5173-4bcc-b85c-88e79efb29d1 Sweden | |
| f3e8471e-5ed4-4730-9130-28162c7dfa4f Croatia | |
| c4493ecc-6c8e-4922-9431-069b17164b94 Czech Republic | |
| 69432a6f-8bed-4949-9092-129de2b517b1 Netherlands | |
| c4493ecc-6c8e-4922-9431-069b17164b94 Czech Republic | |
| c83ded1f-5554-4367-81d2-3859b3576dfa Bulgaria | |
| 9e5581b5-7b20-40fa-9fb8-42d8c2d8676b Portugal | |
| 63a2052b-40d5-4132-8bc4-27bf2d530dc9 Germany | |
| 5a5e0e54-48d6-40e2-a3c4-d5920c924353 Poland | |
| 3144ff84-b8f6-496b-8bda-a18b39abf1af France | |
| 040252ea-8bff-4796-a04a-877208222e23 Hungary | |
| f3c324db-4ada-4370-b5b5-e506965c931d Estonia | |
| 231b7b7e-5173-4bcc-b85c-88e79efb29d1 Sweden | |
| 10c58572-6fb1-43fc-848d-791b049a58e3 Germany | |
| c4cff6f0-b1fa-4ec1-923b-1e1397ac9dc1 Germany | |
| c6c2f0a9-e146-4ae9-8a94-3d7acaace80c Finland | |
| b1718900-3e4c-4770-ab5f-867886554714 Germany | |
| e95bc92c-183d-4779-88e5-46dbafb40dde Belgium | |
| 274e0098-bdba-4cb5-9fe9-44d1a6f1497c Belgium | |
| c6c2f0a9-e146-4ae9-8a94-3d7acaace80c Finland | |
| 67879de6-605d-4ebd-9089-5ce2eb0d12ea Poland | |
| f0b41527-6727-402d-a60f-b684f9ac090e Spain | |
| e95bc92c-183d-4779-88e5-46dbafb40dde Belgium | |
| bc0db621-bc3f-44fe-8a7c-32c448595f9d Norway | |
| c83ded1f-5554-4367-81d2-3859b3576dfa Bulgaria | |
| 9b6944fe-4406-449b-8af3-12f7077f34e7 Denmark | |
| c4cff6f0-b1fa-4ec1-923b-1e1397ac9dc1 Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEDLFAZZAAAA00000 |
| EAN | 8056221017305 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017305 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
