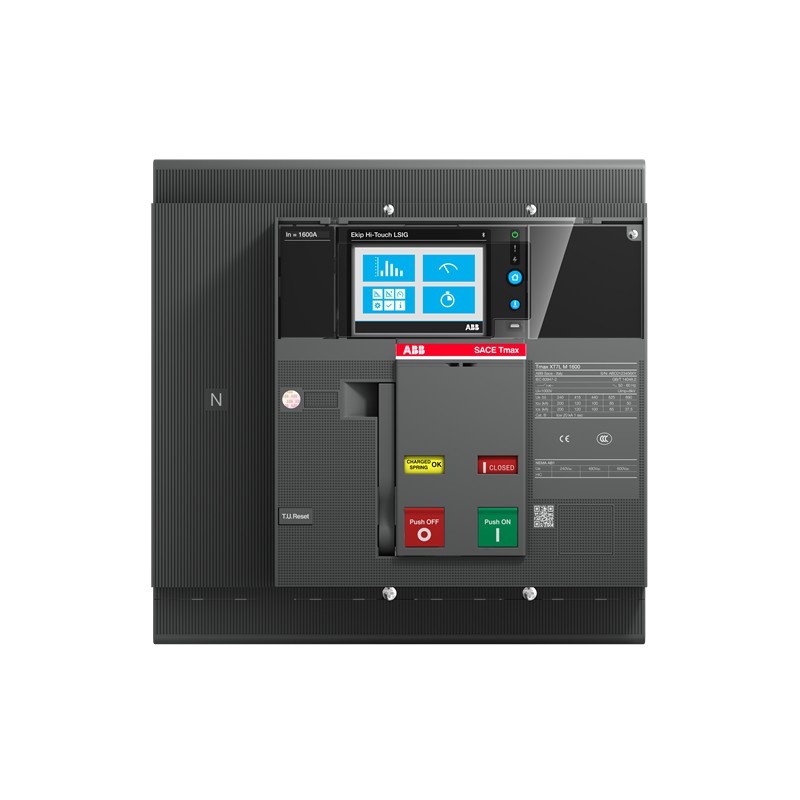

1SDA101684R1 ABB XT7S M 1250 Ekip Hi-Touch LSI 1250 4p FF
1SDA101684R1
ABB
XT7S M 1250 Ekip Hi-Touch LSI 1250 4p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9c383c8d-3b12-4d60-b8a0-062223e7dffd Italy |
| Simplified SCIP | be6120d1-7425-4f5e-8c71-576ccec9f184 Greece |
| cd0a9602-4767-4399-b17c-792f6264b9d7 Portugal | |
| 2e6ec169-a1a4-4b61-8788-e9fc9c071354 Poland | |
| 3f7c308d-3142-41f4-a506-72d9d133dd92 Poland | |
| fd33520e-383a-4b20-81d0-143cb12446e8 Poland | |
| 14bd72f7-6e25-4482-a95c-bedcbb7cf24a Norway | |
| 3f7c308d-3142-41f4-a506-72d9d133dd92 Poland | |
| 9b90c129-b3bd-432d-99b3-be66fed75ce4 Denmark | |
| 520efbff-e145-48dc-ba39-bdd4514dbfe9 Germany | |
| 7e154fff-e448-4914-ad59-90def8d8d3b3 Spain | |
| 21ffba33-8d48-456a-9d2f-01cfd12edac1 Finland | |
| 6387b55c-34a8-42b1-974f-a06c5b903582 Belgium | |
| 315fa5f3-a7ec-446e-8e78-16f8695c0871 Germany | |
| d78785fd-6ce5-4c7d-b96d-a86a119be616 France | |
| be6120d1-7425-4f5e-8c71-576ccec9f184 Greece | |
| e844abaa-eba2-4adf-977b-ec39ac8a4fd1 Croatia | |
| 29dc0814-02c8-45f3-9e32-ade6b4d9618f Netherlands | |
| f7ac24a9-092b-437f-8df7-e9aa2e9e6b15 Sweden | |
| 83c5c441-f259-430b-84ee-33af8c75fc4d Germany | |
| 29dc0814-02c8-45f3-9e32-ade6b4d9618f Netherlands | |
| 2e6ec169-a1a4-4b61-8788-e9fc9c071354 Poland | |
| 136ec98c-2b03-4729-a7c0-81a41779f1cc Estonia | |
| 3f1ce04e-0cd2-4b5d-8820-aaf1ca53d24e France | |
| 9760bbc9-3df5-46fe-93c4-93a3c4881808 Hungary | |
| 78cfe67c-31d4-4e62-8f45-65b12b307d2a Czech Republic | |
| 136ec98c-2b03-4729-a7c0-81a41779f1cc Estonia | |
| 9760bbc9-3df5-46fe-93c4-93a3c4881808 Hungary | |
| ae4542cd-5547-4601-afb1-c03d9f69e100 Hungary | |
| d78785fd-6ce5-4c7d-b96d-a86a119be616 France | |
| f7ac24a9-092b-437f-8df7-e9aa2e9e6b15 Sweden | |
| 83c5c441-f259-430b-84ee-33af8c75fc4d Germany | |
| 04b50737-9c01-42a0-8612-08e3b7b32d13 Germany | |
| fd33520e-383a-4b20-81d0-143cb12446e8 Poland | |
| 6387b55c-34a8-42b1-974f-a06c5b903582 Belgium | |
| a6d4716c-eeea-4c16-8f9c-fefa4b0680d4 Sweden | |
| ae4542cd-5547-4601-afb1-c03d9f69e100 Hungary | |
| 7e154fff-e448-4914-ad59-90def8d8d3b3 Spain | |
| 3f1ce04e-0cd2-4b5d-8820-aaf1ca53d24e France | |
| 142ddc2a-b573-4c2d-aa32-bf96857d9b61 Germany | |
| 9b90c129-b3bd-432d-99b3-be66fed75ce4 Denmark | |
| b8c94077-4acd-4922-b83b-8c602ec53753 Bulgaria | |
| 8d596340-79c7-4eff-a34a-e71cc74e2c07 Belgium | |
| 14bd72f7-6e25-4482-a95c-bedcbb7cf24a Norway | |
| 315fa5f3-a7ec-446e-8e78-16f8695c0871 Germany | |
| 21ffba33-8d48-456a-9d2f-01cfd12edac1 Finland | |
| 8d596340-79c7-4eff-a34a-e71cc74e2c07 Belgium | |
| 142ddc2a-b573-4c2d-aa32-bf96857d9b61 Germany | |
| 520efbff-e145-48dc-ba39-bdd4514dbfe9 Germany | |
| a6d4716c-eeea-4c16-8f9c-fefa4b0680d4 Sweden | |
| e844abaa-eba2-4adf-977b-ec39ac8a4fd1 Croatia | |
| 04b50737-9c01-42a0-8612-08e3b7b32d13 Germany | |
| cd0a9602-4767-4399-b17c-792f6264b9d7 Portugal | |
| 78cfe67c-31d4-4e62-8f45-65b12b307d2a Czech Republic | |
| b8c94077-4acd-4922-b83b-8c602ec53753 Bulgaria | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEKJFAZZAAAA00000 |
| E-Number (Norway) | 4380907 |
| EAN | 8056221017282 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017282 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1875.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
