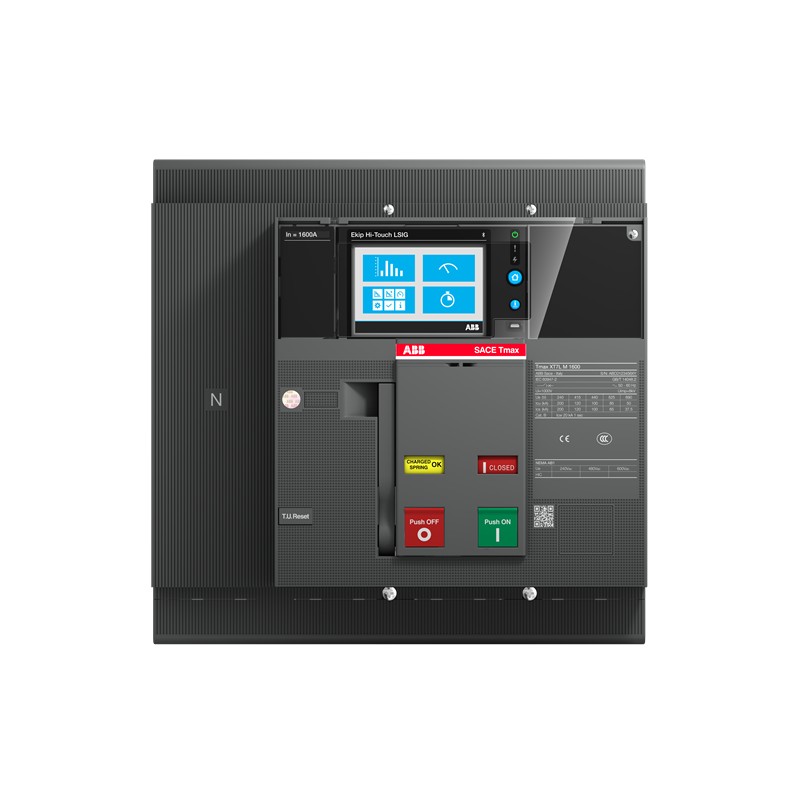

1SDA101682R1 ABB XT7S M 800 Ekip Hi-Touch LSI In800 4p FF
1SDA101682R1
ABB
XT7S M 800 Ekip Hi-Touch LSI In800 4p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 14dea115-0c7c-4186-84dc-31cdfd443262 Italy |
| Simplified SCIP | cfe2bf78-9ed2-4d4e-a6f1-b6556266484f France |
| 72fd0020-04e7-413c-9e75-c9f231f175bb Poland | |
| 1f5b75c8-7741-4b8f-86ec-756e3b1093ff Hungary | |
| 597acc11-2a5d-467b-9adb-483f01a4d9a0 Estonia | |
| 29b4c989-bf03-4779-a4ce-03e7999fef11 Czech Republic | |
| f7c82133-2fc6-49d5-8c99-9feca1a079ac Bulgaria | |
| 03dac599-34e8-424a-ab32-f16dddc082e7 Netherlands | |
| 29b4c989-bf03-4779-a4ce-03e7999fef11 Czech Republic | |
| 18c52d0a-4280-4e97-8ac4-726695b5dbea Poland | |
| 8d62e062-63d4-491e-84a6-00e44ee5ca18 France | |
| fd66e264-fc09-4dcf-bd58-f0506116207e Sweden | |
| 2b9398ee-84da-4c63-8ae5-429b188accfe Sweden | |
| bb5da55d-fc60-4e49-bbd4-ef315e3bf7d1 Belgium | |
| 597acc11-2a5d-467b-9adb-483f01a4d9a0 Estonia | |
| 176239b9-38dd-4632-907c-ed3a74de9956 Hungary | |
| 1f5b75c8-7741-4b8f-86ec-756e3b1093ff Hungary | |
| 176239b9-38dd-4632-907c-ed3a74de9956 Hungary | |
| cfe2bf78-9ed2-4d4e-a6f1-b6556266484f France | |
| 108725b0-96c4-494f-ab20-cc2ee5cc9f69 Germany | |
| 0d1a6fd4-5b71-4b66-aa2e-46820f19c705 Germany | |
| 0490470a-a692-45db-a21c-afeee9071f34 Spain | |
| 73c92fc0-0e7f-4562-947d-2d5fcc87b72a Belgium | |
| 59d98345-a46c-42d8-8ce9-f1d92f2e4f4f Norway | |
| bb5da55d-fc60-4e49-bbd4-ef315e3bf7d1 Belgium | |
| e3e4c2db-415f-4f85-99cf-96f054d65590 Poland | |
| 0490470a-a692-45db-a21c-afeee9071f34 Spain | |
| 901d5a0a-d0b0-4c39-8027-e0fd2be7f5d2 Finland | |
| f7c82133-2fc6-49d5-8c99-9feca1a079ac Bulgaria | |
| 63b5c6e1-d8a7-4b11-8a63-bc05766276c9 Germany | |
| 63b5c6e1-d8a7-4b11-8a63-bc05766276c9 Germany | |
| 973ba3ea-2fa0-4804-8b47-a2c9438a8d3d Germany | |
| 2b9398ee-84da-4c63-8ae5-429b188accfe Sweden | |
| 901d5a0a-d0b0-4c39-8027-e0fd2be7f5d2 Finland | |
| f962a8c7-7740-4812-86ab-94f589f68b72 Germany | |
| 58648373-3ae7-452d-b1a6-ec8393a44985 Denmark | |
| 73c92fc0-0e7f-4562-947d-2d5fcc87b72a Belgium | |
| 0d1a6fd4-5b71-4b66-aa2e-46820f19c705 Germany | |
| fd66e264-fc09-4dcf-bd58-f0506116207e Sweden | |
| 03dac599-34e8-424a-ab32-f16dddc082e7 Netherlands | |
| d9bcfd0c-1ce7-4625-8afc-a9488a4ce0f9 Portugal | |
| 0a06ba57-e909-484d-91c3-fe4ccd133387 Croatia | |
| 108725b0-96c4-494f-ab20-cc2ee5cc9f69 Germany | |
| f962a8c7-7740-4812-86ab-94f589f68b72 Germany | |
| 0a06ba57-e909-484d-91c3-fe4ccd133387 Croatia | |
| 8d62e062-63d4-491e-84a6-00e44ee5ca18 France | |
| 59d98345-a46c-42d8-8ce9-f1d92f2e4f4f Norway | |
| 0f3c8765-ab45-4868-9393-1db6143a05fb Greece | |
| 18c52d0a-4280-4e97-8ac4-726695b5dbea Poland | |
| 58648373-3ae7-452d-b1a6-ec8393a44985 Denmark | |
| e3e4c2db-415f-4f85-99cf-96f054d65590 Poland | |
| 0f3c8765-ab45-4868-9393-1db6143a05fb Greece | |
| d9bcfd0c-1ce7-4625-8afc-a9488a4ce0f9 Portugal | |
| 72fd0020-04e7-413c-9e75-c9f231f175bb Poland | |
| 973ba3ea-2fa0-4804-8b47-a2c9438a8d3d Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEDJFAZZAAAA00000 |
| E-Number (Norway) | 4380905 |
| EAN | 8056221017268 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017268 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101682R1 1SDA101682R1 EN_1SDA101682R1.pdf | 605 Kbytes |
|
