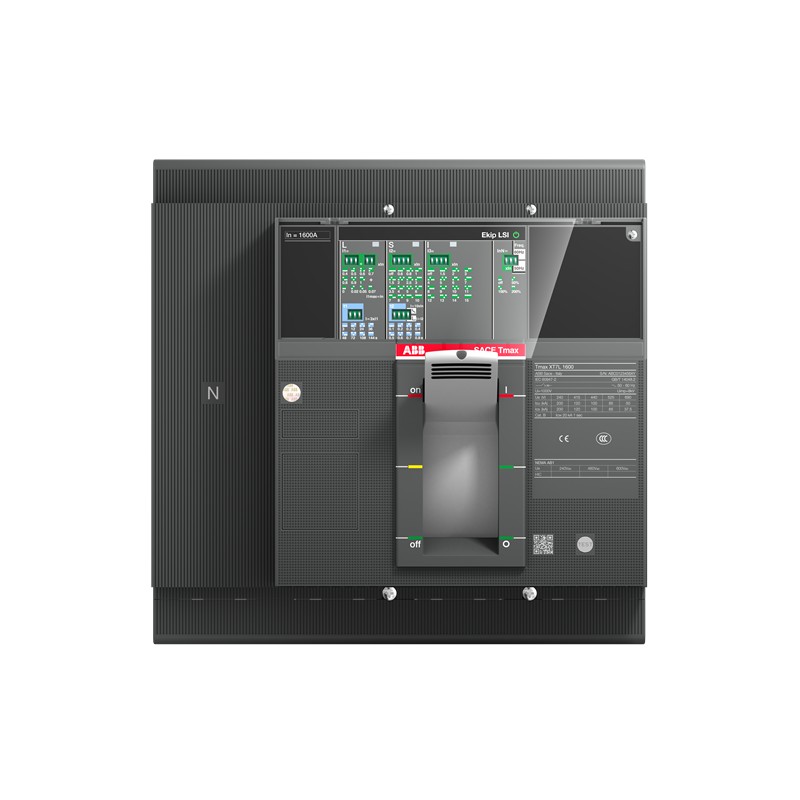

1SDA101230R1 ABB XT7L 800 Ekip Dip LSI In 800A 4p F F
1SDA101230R1
ABB
XT7L 800 Ekip Dip LSI In=800A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3d13c92b-b9a1-44f4-8f25-a38ccb4ea6cb Italy |
| Simplified SCIP | b717790d-e157-4456-8b4a-7f2d747cf80e France |
| 15c3c9c4-f55d-439d-a318-dc57de2e885f Germany | |
| 4cb0b9b4-ec93-4706-b147-1e00e5f03492 Sweden | |
| 943a72e2-93a8-49ed-a2d2-934b8443e1e3 Sweden | |
| 57249472-6ffe-4480-b085-53550726153f Denmark | |
| b90140e0-ac9d-4061-98ce-7467ae4e349b Germany | |
| 71fc08ef-0014-4a07-b9b4-dd1395d85746 Bulgaria | |
| b717790d-e157-4456-8b4a-7f2d747cf80e France | |
| b90140e0-ac9d-4061-98ce-7467ae4e349b Germany | |
| f9323eee-b023-4f1d-97b4-698aa2f8a9f0 Finland | |
| 71047d4a-470a-46e3-8eb5-607ad0fef4d2 Norway | |
| 88ca8a75-5847-4b19-85b4-f453bf523786 Croatia | |
| d82e7c8a-52aa-4318-8f44-993809d8aadb Greece | |
| 57249472-6ffe-4480-b085-53550726153f Denmark | |
| d82e7c8a-52aa-4318-8f44-993809d8aadb Greece | |
| db17b1d1-8fc4-4507-a99a-cc226d0ac4f1 Poland | |
| 9bd1963e-1297-4dbc-86b9-b3997d15056a Germany | |
| 9d7ccaa0-3826-4a45-ab68-177694facea5 Poland | |
| be1e6ef5-ffdf-4430-a4d3-edc7ebc1905a Spain | |
| 7c6d7d99-d4de-431b-900d-459a5c5cac96 Germany | |
| bff29e23-368c-41ca-bb30-74fb5abb0df8 France | |
| 79a69df5-f6a3-42b4-8e55-daf3a12f85e3 Hungary | |
| 88ca8a75-5847-4b19-85b4-f453bf523786 Croatia | |
| 7c6d7d99-d4de-431b-900d-459a5c5cac96 Germany | |
| ba2da25a-1d4b-4fd3-bde8-07b531f2052b Portugal | |
| 15c3c9c4-f55d-439d-a318-dc57de2e885f Germany | |
| 30747943-7609-47a1-843b-27d8ab9c76be Hungary | |
| ed8b0c55-629d-46af-aa22-bbadb8ebca9d Netherlands | |
| 4cb0b9b4-ec93-4706-b147-1e00e5f03492 Sweden | |
| ba2da25a-1d4b-4fd3-bde8-07b531f2052b Portugal | |
| 163446e6-2821-47df-80a8-8d475c4f8af2 Belgium | |
| 943a72e2-93a8-49ed-a2d2-934b8443e1e3 Sweden | |
| 9bd1963e-1297-4dbc-86b9-b3997d15056a Germany | |
| b5bc73e1-1b9e-489c-9b69-b2ee9bb48029 Germany | |
| e1fa97fb-9d07-47b1-b581-203f23680191 Poland | |
| ddbad59d-44b5-4f71-9c5a-19743021867f Czech Republic | |
| db17b1d1-8fc4-4507-a99a-cc226d0ac4f1 Poland | |
| ede9774d-e1b9-477c-95b5-32c6d863db32 Belgium | |
| 163446e6-2821-47df-80a8-8d475c4f8af2 Belgium | |
| be1e6ef5-ffdf-4430-a4d3-edc7ebc1905a Spain | |
| b5bc73e1-1b9e-489c-9b69-b2ee9bb48029 Germany | |
| 71047d4a-470a-46e3-8eb5-607ad0fef4d2 Norway | |
| e1fa97fb-9d07-47b1-b581-203f23680191 Poland | |
| 79a69df5-f6a3-42b4-8e55-daf3a12f85e3 Hungary | |
| ede9774d-e1b9-477c-95b5-32c6d863db32 Belgium | |
| c7182264-a146-4d4b-893f-d01beebb6dc1 Estonia | |
| c7182264-a146-4d4b-893f-d01beebb6dc1 Estonia | |
| 9d7ccaa0-3826-4a45-ab68-177694facea5 Poland | |
| bff29e23-368c-41ca-bb30-74fb5abb0df8 France | |
| ed8b0c55-629d-46af-aa22-bbadb8ebca9d Netherlands | |
| ddbad59d-44b5-4f71-9c5a-19743021867f Czech Republic | |
| 71fc08ef-0014-4a07-b9b4-dd1395d85746 Bulgaria | |
| 30747943-7609-47a1-843b-27d8ab9c76be Hungary | |
| f9323eee-b023-4f1d-97b4-698aa2f8a9f0 Finland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE480CFFF000XXX |
| E-Number (Norway) | 4380865 |
| EAN | 8056221015332 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221015332 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 800 A |
| Adjustment range undelayed short-circuit release (EF007131) | 800 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101230R1 1SDA101230R1 EN_1SDA101230R1.pdf | 658 Kbytes |
|
