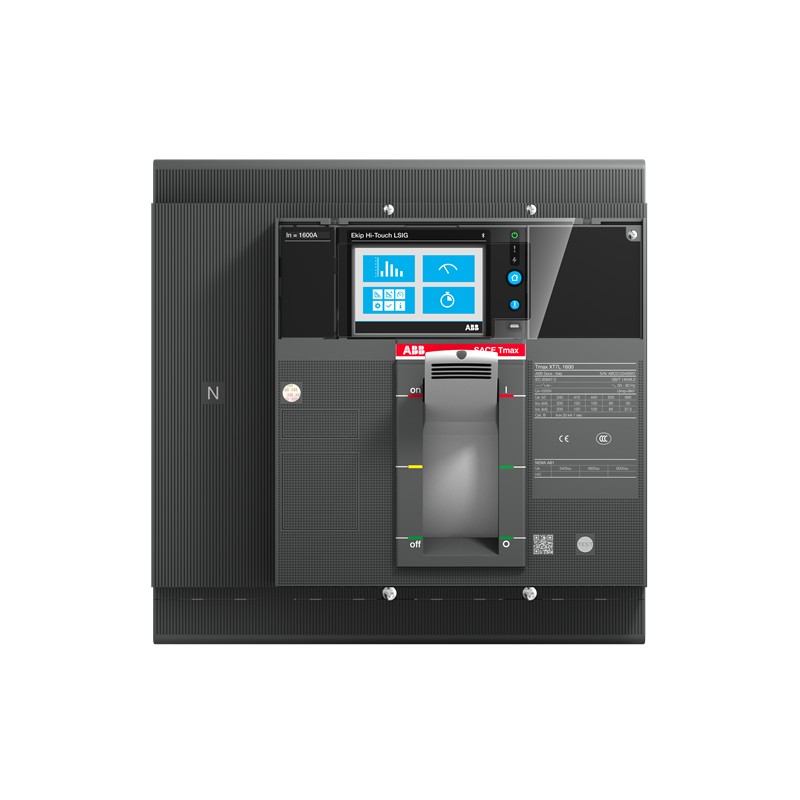

1SDA101183R1 ABB XT7H 1000 Ekip Touch LSI In 1000A 4p F F
1SDA101183R1
ABB
XT7H 1000 Ekip Touch LSI In=1000A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0e8018d4-df69-4254-876f-8b9cc6406c8b Italy |
| Simplified SCIP | 37ce3c92-cdf7-46e8-a2e6-ce03c11b1e18 Germany |
| cd6845c9-75bc-4a36-b325-8e42749bc200 Sweden | |
| b1629a07-6dc8-44e7-8f39-4bf4b18f4565 Netherlands | |
| c3a92d8e-f30e-4704-a9ee-39f838c89b44 Hungary | |
| 389d1c8b-5ff9-404d-afde-6199f66b7a9f Croatia | |
| 59cf2aab-4806-440e-a53f-915257a005cf Germany | |
| 2f9ecccf-0390-425d-b0ac-459216a701bc Portugal | |
| ea6dc71d-da66-4451-8392-8149a89fed04 Norway | |
| a7dafc8c-5d5e-4a01-802d-af34b4703c4f Greece | |
| 389d1c8b-5ff9-404d-afde-6199f66b7a9f Croatia | |
| 95399818-c75a-44f5-ac7f-a7a25a883f1a France | |
| 7018f1a9-af26-4c36-a32a-52f6922b9c7e Finland | |
| 786a6454-9533-4d5b-948f-379d9a6022a3 Germany | |
| 3ad9c896-4388-4f9c-9895-b950c877cbc2 Poland | |
| f8c93d3c-9c37-4643-b087-f0c18579b46f Germany | |
| a5d808de-42e8-4416-abcc-e6b19df77f84 Poland | |
| 2f9ecccf-0390-425d-b0ac-459216a701bc Portugal | |
| a7dafc8c-5d5e-4a01-802d-af34b4703c4f Greece | |
| 51bbb7d3-f117-409c-bda0-5759c16fe77f France | |
| 59cf2aab-4806-440e-a53f-915257a005cf Germany | |
| ea32b34e-5dfb-48cf-a3d1-e942a2a479e8 Hungary | |
| c35bb71c-4817-4c55-96e7-1b55c5d5fa9a Spain | |
| 44375682-8532-4b57-b77e-14c497207391 Estonia | |
| a5d808de-42e8-4416-abcc-e6b19df77f84 Poland | |
| 51bbb7d3-f117-409c-bda0-5759c16fe77f France | |
| c3a92d8e-f30e-4704-a9ee-39f838c89b44 Hungary | |
| 112bfc7f-d6cc-4158-8773-a7a299875c5a Bulgaria | |
| b16b4b71-e502-460d-afcc-4774b3565d1c Czech Republic | |
| b1629a07-6dc8-44e7-8f39-4bf4b18f4565 Netherlands | |
| 95399818-c75a-44f5-ac7f-a7a25a883f1a France | |
| 37ce3c92-cdf7-46e8-a2e6-ce03c11b1e18 Germany | |
| cd6845c9-75bc-4a36-b325-8e42749bc200 Sweden | |
| 380538db-a237-43ae-81b4-1aad522fbcfd Sweden | |
| 5571a102-0c46-43c5-8be3-1ab6c27a4aef Poland | |
| 44375682-8532-4b57-b77e-14c497207391 Estonia | |
| 89a884c6-d69f-4edb-a16c-f9638915f282 Belgium | |
| ea32b34e-5dfb-48cf-a3d1-e942a2a479e8 Hungary | |
| c35bb71c-4817-4c55-96e7-1b55c5d5fa9a Spain | |
| 2428dd9e-539b-42be-9df1-2164918e865b Germany | |
| 4d4e3107-b451-4237-895d-7cd134587d0e Belgium | |
| 7018f1a9-af26-4c36-a32a-52f6922b9c7e Finland | |
| 3ad9c896-4388-4f9c-9895-b950c877cbc2 Poland | |
| 1cf2e155-dd79-405e-a628-987e9e5b09c7 Denmark | |
| 5571a102-0c46-43c5-8be3-1ab6c27a4aef Poland | |
| b16b4b71-e502-460d-afcc-4774b3565d1c Czech Republic | |
| f8c93d3c-9c37-4643-b087-f0c18579b46f Germany | |
| 380538db-a237-43ae-81b4-1aad522fbcfd Sweden | |
| 786a6454-9533-4d5b-948f-379d9a6022a3 Germany | |
| 1cf2e155-dd79-405e-a628-987e9e5b09c7 Denmark | |
| 112bfc7f-d6cc-4158-8773-a7a299875c5a Bulgaria | |
| 4d4e3107-b451-4237-895d-7cd134587d0e Belgium | |
| 89a884c6-d69f-4edb-a16c-f9638915f282 Belgium | |
| 2428dd9e-539b-42be-9df1-2164918e865b Germany | |
| ea6dc71d-da66-4451-8392-8149a89fed04 Norway | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7HE410DPFF000XXX |
| E-Number (Norway) | 4380850 |
| EAN | 8056221014861 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014861 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 10000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1500.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
