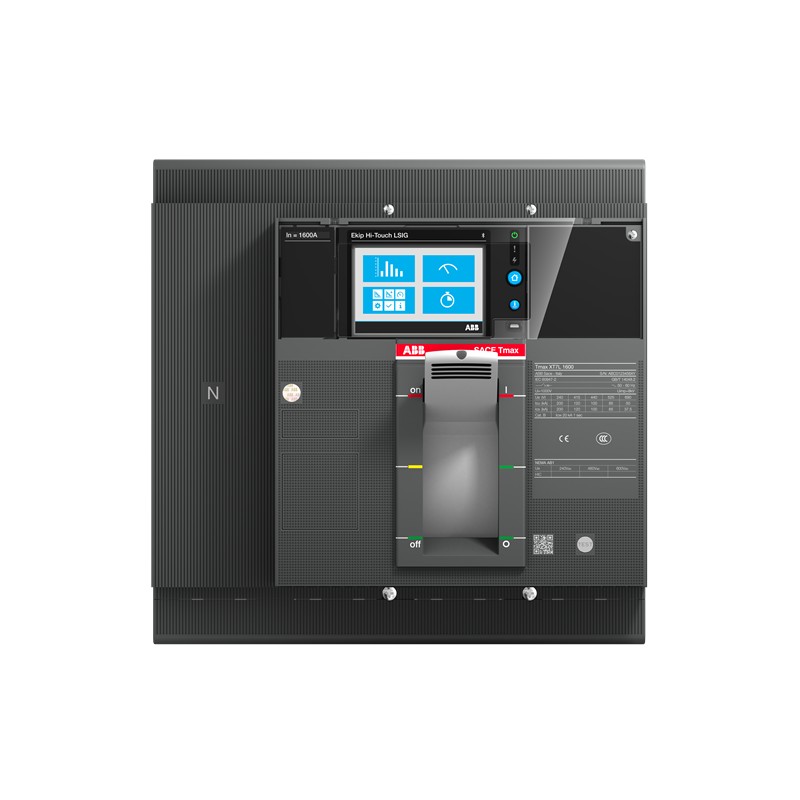

1SDA101182R1 ABB XT7H 800 Ekip Touch LSI In 800A 4p F F
1SDA101182R1
ABB
XT7H 800 Ekip Touch LSI In=800A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8b7abede-0e0c-4711-9906-f14ed6f8af51 Italy |
| Simplified SCIP | 7612b4b7-ac92-489e-a918-0023bb53c337 Poland |
| c24a82da-7a88-4161-b88c-3506d36b1e12 Sweden | |
| 7c863e2d-75a9-49ba-9111-207c58c7a409 Spain | |
| 0f34ef3b-a3d3-4e2a-964c-104b9f4ee71a Belgium | |
| f27c2f2b-3562-472b-80bd-761c0c852510 Germany | |
| 6a0e5440-160d-4e3d-827f-8a200c765787 Sweden | |
| e08f76d7-989b-48e1-aeb1-3fe817ea7ea4 Germany | |
| 5f0fbd02-ad84-4e2e-8a28-d8b5d9a1e98c France | |
| 33b0cae5-492c-4838-85f4-81b2c475fee3 Hungary | |
| f496bab9-0578-4afe-ac34-ce0ed81b34ca France | |
| 5573791e-46fa-4927-9e9c-9223dd56a800 Poland | |
| eeb7f5ef-c12d-4d23-9ed7-ba7cfe2e8066 Estonia | |
| 8de13827-d264-4c4e-94ea-fdb144ba46e6 Hungary | |
| eeb7f5ef-c12d-4d23-9ed7-ba7cfe2e8066 Estonia | |
| 8de13827-d264-4c4e-94ea-fdb144ba46e6 Hungary | |
| f496bab9-0578-4afe-ac34-ce0ed81b34ca France | |
| 7c863e2d-75a9-49ba-9111-207c58c7a409 Spain | |
| cafa5712-226e-4fdf-9462-8621c9abcba8 Norway | |
| 5c34278f-e04f-42b1-b782-58ac835afc8a Belgium | |
| 23ba8084-59dc-4788-81b0-d363c03a7cd8 Bulgaria | |
| 4990ee9b-c1d0-45b6-a730-8e848cde472f Denmark | |
| 8f0af916-93d0-4dc9-9a8a-e08e5d3702ad Germany | |
| a81cd71a-4ee4-4480-b07f-cd162cc5e71f Germany | |
| c02b7cef-2cf8-4b31-a284-ca5031dc891d Czech Republic | |
| 7612b4b7-ac92-489e-a918-0023bb53c337 Poland | |
| c24a82da-7a88-4161-b88c-3506d36b1e12 Sweden | |
| 58a33a89-81e4-4cad-91e1-b51fda242c37 Germany | |
| 41917d9a-de7f-43b2-8463-2fe71e31bc3e Finland | |
| 5c34278f-e04f-42b1-b782-58ac835afc8a Belgium | |
| 8f0af916-93d0-4dc9-9a8a-e08e5d3702ad Germany | |
| 41917d9a-de7f-43b2-8463-2fe71e31bc3e Finland | |
| 58a33a89-81e4-4cad-91e1-b51fda242c37 Germany | |
| 5f0fbd02-ad84-4e2e-8a28-d8b5d9a1e98c France | |
| 0bd51ad3-d469-4018-b839-d6c1f1730fb9 Croatia | |
| 4990ee9b-c1d0-45b6-a730-8e848cde472f Denmark | |
| ea58b97b-4fef-4cbb-89b0-ed52ff8b66a9 Poland | |
| cafa5712-226e-4fdf-9462-8621c9abcba8 Norway | |
| 50a4440e-7b7c-40df-a332-5be074b29b1d Greece | |
| f27c2f2b-3562-472b-80bd-761c0c852510 Germany | |
| 6cdef4d8-7f97-488f-ad70-0382d1b4eba9 Portugal | |
| 0bd51ad3-d469-4018-b839-d6c1f1730fb9 Croatia | |
| c02b7cef-2cf8-4b31-a284-ca5031dc891d Czech Republic | |
| 23ba8084-59dc-4788-81b0-d363c03a7cd8 Bulgaria | |
| 90c1522d-b9a5-461d-93ec-2b9d61679000 Netherlands | |
| 90c1522d-b9a5-461d-93ec-2b9d61679000 Netherlands | |
| 6a0e5440-160d-4e3d-827f-8a200c765787 Sweden | |
| e08f76d7-989b-48e1-aeb1-3fe817ea7ea4 Germany | |
| 33b0cae5-492c-4838-85f4-81b2c475fee3 Hungary | |
| 50a4440e-7b7c-40df-a332-5be074b29b1d Greece | |
| 5573791e-46fa-4927-9e9c-9223dd56a800 Poland | |
| 6cdef4d8-7f97-488f-ad70-0382d1b4eba9 Portugal | |
| a81cd71a-4ee4-4480-b07f-cd162cc5e71f Germany | |
| ea58b97b-4fef-4cbb-89b0-ed52ff8b66a9 Poland | |
| 0f34ef3b-a3d3-4e2a-964c-104b9f4ee71a Belgium | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7HE480CPFF000XXX |
| E-Number (Norway) | 4380849 |
| EAN | 8056221014854 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014854 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
