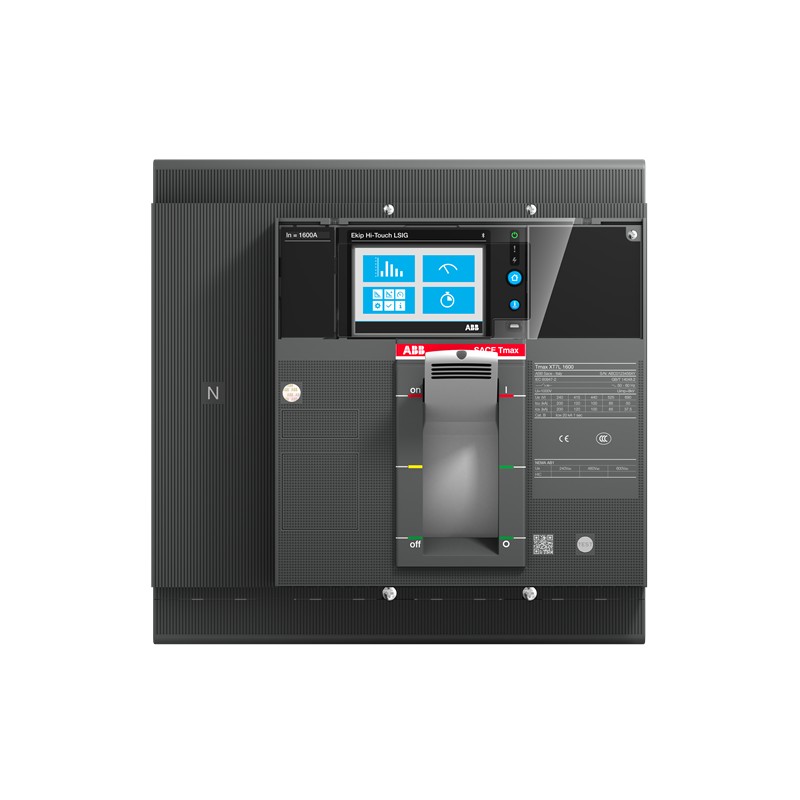

1SDA101142R1 ABB XT7S 800 Ekip Hi-Touch LSI In800A 4p FF
1SDA101142R1
ABB
XT7S 800 Ekip Hi-Touch LSI In800A 4p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e5aca83b-f715-4ce9-bb84-dd3f72e5f95f Italy |
| Simplified SCIP | f10ba930-e9ed-47bb-ba80-dadc79518dd2 Hungary |
| e8d081de-408c-419e-964c-8411b3c30399 Hungary | |
| 4f9c9169-c57b-40ff-b3c4-b1b6baf65f14 Estonia | |
| e8d081de-408c-419e-964c-8411b3c30399 Hungary | |
| 4f9c9169-c57b-40ff-b3c4-b1b6baf65f14 Estonia | |
| 5c074951-9511-48e3-80a9-780b2fd23eba Poland | |
| a50e133b-43ef-4bcc-857f-b063acd6ba2d France | |
| e48e6829-2cc1-48e1-8067-85080ca01ce2 Germany | |
| d6a2ef5c-80de-4934-99da-e7e9f2d4d8ad Sweden | |
| a3e953cc-4e25-4abb-a130-d09fe55288ec France | |
| 8be034d7-38f7-4705-acc5-561752d91886 Germany | |
| da2fab04-f522-4e2a-9a81-73ba335f48a2 Sweden | |
| ec1c27a1-36a0-4041-88e5-8cf80378c335 Belgium | |
| 2e7bbc70-3ce6-4b67-922c-4cb45ebddfb7 Poland | |
| 86482fc2-d3b9-4148-97a2-ca26dabaacf9 Spain | |
| f10ba930-e9ed-47bb-ba80-dadc79518dd2 Hungary | |
| a50e133b-43ef-4bcc-857f-b063acd6ba2d France | |
| d264b23f-30cb-4776-8b60-2f6254e2fca9 Germany | |
| e67fe299-bc5d-4591-ad7b-9c11d35c2e83 Denmark | |
| a477f4cb-897d-4e8e-9c3c-0bf1975adde7 Bulgaria | |
| dd2ab7c5-17ff-498f-8ca8-a890ef8950fe Belgium | |
| c81bfeb9-31d9-4c57-bd9d-7a27b587bb87 Norway | |
| dd2ab7c5-17ff-498f-8ca8-a890ef8950fe Belgium | |
| aca910e4-7ece-4637-8923-72b9e41ecb74 Germany | |
| d9c401af-be53-40a7-a368-e34e1211837b Finland | |
| da2fab04-f522-4e2a-9a81-73ba335f48a2 Sweden | |
| da5ae1ce-bcf7-4995-9ac3-817fee553c6b Czech Republic | |
| d264b23f-30cb-4776-8b60-2f6254e2fca9 Germany | |
| 8937b4ff-c98f-4716-bbb3-151eaadf3bd2 Germany | |
| d6a2ef5c-80de-4934-99da-e7e9f2d4d8ad Sweden | |
| 82dcabbf-979a-4fab-88b8-4b9b03bed31f Netherlands | |
| e48e6829-2cc1-48e1-8067-85080ca01ce2 Germany | |
| da5ae1ce-bcf7-4995-9ac3-817fee553c6b Czech Republic | |
| 82dcabbf-979a-4fab-88b8-4b9b03bed31f Netherlands | |
| a477f4cb-897d-4e8e-9c3c-0bf1975adde7 Bulgaria | |
| a8cbe1a7-aa72-4ee4-955e-012d19728178 Croatia | |
| 8be034d7-38f7-4705-acc5-561752d91886 Germany | |
| c325b621-9793-4855-bf46-41980263057b Portugal | |
| a37d6be8-8047-45c6-a950-5a513c444468 Poland | |
| e67fe299-bc5d-4591-ad7b-9c11d35c2e83 Denmark | |
| 2e7bbc70-3ce6-4b67-922c-4cb45ebddfb7 Poland | |
| c81bfeb9-31d9-4c57-bd9d-7a27b587bb87 Norway | |
| a3e953cc-4e25-4abb-a130-d09fe55288ec France | |
| a8cbe1a7-aa72-4ee4-955e-012d19728178 Croatia | |
| dedcac7b-9ee8-4a75-b623-10353e32d5a1 Greece | |
| aca910e4-7ece-4637-8923-72b9e41ecb74 Germany | |
| dedcac7b-9ee8-4a75-b623-10353e32d5a1 Greece | |
| 8937b4ff-c98f-4716-bbb3-151eaadf3bd2 Germany | |
| a37d6be8-8047-45c6-a950-5a513c444468 Poland | |
| 86482fc2-d3b9-4148-97a2-ca26dabaacf9 Spain | |
| c325b621-9793-4855-bf46-41980263057b Portugal | |
| 5c074951-9511-48e3-80a9-780b2fd23eba Poland | |
| ec1c27a1-36a0-4041-88e5-8cf80378c335 Belgium | |
| d9c401af-be53-40a7-a368-e34e1211837b Finland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE480CTFF000XXX |
| E-Number (Norway) | 4380833 |
| EAN | 8056221014458 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014458 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101142R1 1SDA101142R1 EN_1SDA101142R1.pdf | 614 Kbytes |
|
