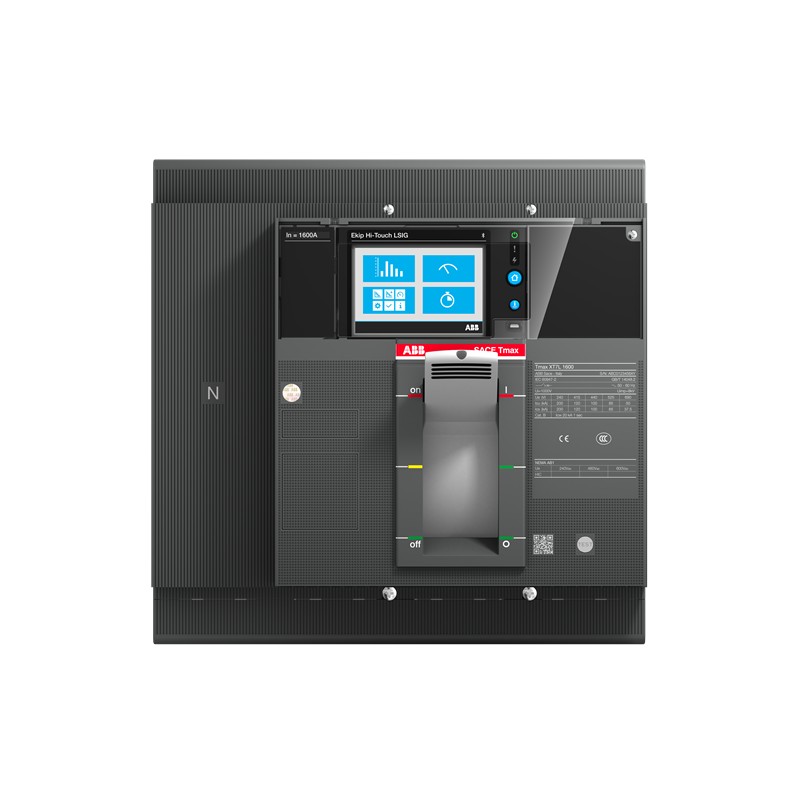

1SDA101140R1 ABB XT7S 1250 Ekip Touch Meas.LSIG 1250 4pFF
1SDA101140R1
ABB
XT7S 1250 Ekip Touch Meas.LSIG 1250 4pFF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | a178afee-7b2d-4675-bb83-a9afef928433 Italy |
| Simplified SCIP | cce3a964-90d2-4d88-82f0-c812e1c760c6 Poland |
| 9de47c17-3a4d-4ac2-9f19-6d394c76eca0 Denmark | |
| ae8b773e-6d5b-4ab7-be13-675dcca59a0a Norway | |
| 3a944511-ceb0-49b0-a0ca-b5838058fdd3 Greece | |
| 8cb32e32-168f-418d-ab99-49020e9e319e Poland | |
| 7f50ba96-9edc-428b-bbc4-6264fc84f217 France | |
| aa8b007b-1dd6-40bc-9aed-ab24f49417a9 Croatia | |
| 2fe01b2a-2162-40ab-aaba-0937a48c93d7 Germany | |
| ff8e6542-54c8-4494-9192-3638ebfa0de1 Germany | |
| aa8b007b-1dd6-40bc-9aed-ab24f49417a9 Croatia | |
| 76719c26-62f7-40b3-a930-db855c23f7d9 Germany | |
| 58c4c799-2d4d-4a9f-a134-c89faed76250 Portugal | |
| 2c580a22-a2e9-4641-b8ef-6f6280ac3638 Sweden | |
| 245d60bc-0093-4abb-b5bb-3344b5eb4968 Netherlands | |
| b4c0dc18-b125-48c6-ab0e-0bc60a610d34 Germany | |
| cce3a964-90d2-4d88-82f0-c812e1c760c6 Poland | |
| a91e0dc9-3257-4761-ab6a-7970f8cc437f Finland | |
| 59ef5fbd-7efb-48a6-a88e-e346f1526861 Spain | |
| a85a99b1-0e06-437e-b2d4-a478482d759c Poland | |
| 58c4c799-2d4d-4a9f-a134-c89faed76250 Portugal | |
| 3a944511-ceb0-49b0-a0ca-b5838058fdd3 Greece | |
| c2f17c2d-7fcf-4220-bddc-d9f54cd741be France | |
| dc4bbf45-8d15-4703-9a6b-d21770aa918f Hungary | |
| 59ef5fbd-7efb-48a6-a88e-e346f1526861 Spain | |
| 76719c26-62f7-40b3-a930-db855c23f7d9 Germany | |
| 2c580a22-a2e9-4641-b8ef-6f6280ac3638 Sweden | |
| ff8e6542-54c8-4494-9192-3638ebfa0de1 Germany | |
| 7f50ba96-9edc-428b-bbc4-6264fc84f217 France | |
| 8cb32e32-168f-418d-ab99-49020e9e319e Poland | |
| a26f5306-f03c-4a9f-9d27-823f712c9a80 Sweden | |
| 8bc4d04c-c84a-495d-9699-c935f58ed706 Belgium | |
| a85a99b1-0e06-437e-b2d4-a478482d759c Poland | |
| ebbaff86-28b3-4c56-ae85-3b3ef8862d0c Germany | |
| a26f5306-f03c-4a9f-9d27-823f712c9a80 Sweden | |
| b4c0dc18-b125-48c6-ab0e-0bc60a610d34 Germany | |
| 8bc4d04c-c84a-495d-9699-c935f58ed706 Belgium | |
| 1e5c5a7b-2f58-4b60-9781-c91fd148697e Belgium | |
| ae8b773e-6d5b-4ab7-be13-675dcca59a0a Norway | |
| ebbaff86-28b3-4c56-ae85-3b3ef8862d0c Germany | |
| 9de47c17-3a4d-4ac2-9f19-6d394c76eca0 Denmark | |
| 5393cfbe-0af2-487b-bf1d-393361bc83dd Estonia | |
| dc4bbf45-8d15-4703-9a6b-d21770aa918f Hungary | |
| 19a0e6b0-4f71-41ef-8e70-93bc6176eefb Hungary | |
| 245d60bc-0093-4abb-b5bb-3344b5eb4968 Netherlands | |
| a8936e4d-e0e5-4f8c-a1f2-3eda0ad3781a Czech Republic | |
| 6e5a0e02-5f43-44d1-b0f5-e3e39b56b329 Bulgaria | |
| 19a0e6b0-4f71-41ef-8e70-93bc6176eefb Hungary | |
| 5393cfbe-0af2-487b-bf1d-393361bc83dd Estonia | |
| c2f17c2d-7fcf-4220-bddc-d9f54cd741be France | |
| 1e5c5a7b-2f58-4b60-9781-c91fd148697e Belgium | |
| a91e0dc9-3257-4761-ab6a-7970f8cc437f Finland | |
| a8936e4d-e0e5-4f8c-a1f2-3eda0ad3781a Czech Republic | |
| 6e5a0e02-5f43-44d1-b0f5-e3e39b56b329 Bulgaria | |
| 2fe01b2a-2162-40ab-aaba-0937a48c93d7 Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE412ESFF000XXX |
| EAN | 8056221014434 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014434 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Touch Measuring LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1875.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
