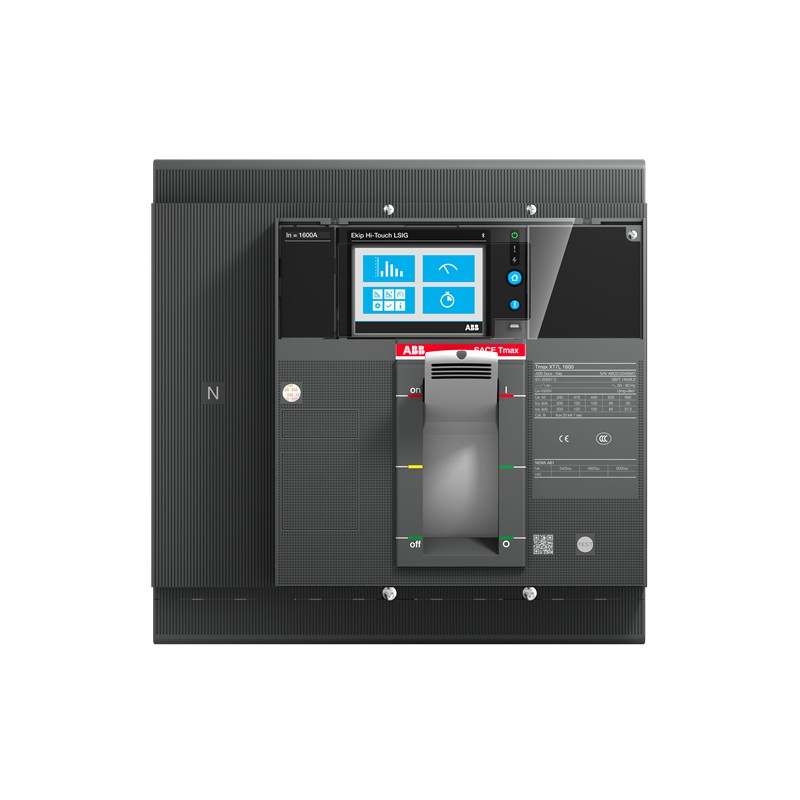

1SDA101135R1 ABB XT7S 1000 Ekip Touch Meas.LSI 1000 4p FF
1SDA101135R1
ABB
XT7S 1000 Ekip Touch Meas.LSI 1000 4p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d87c7c22-b36d-4214-ae2f-03a23aab9f7d Italy |
| Simplified SCIP | f042971e-9f18-4aeb-a519-6cb84f892698 Germany |
| 5ebcceef-e9a8-4ff8-b56b-3c64c756c926 Denmark | |
| 0dcd5c7e-f83d-4111-987d-c5537aa373ab Poland | |
| 3a511941-896a-402d-91e8-98f266350b31 Poland | |
| 795cb35e-c403-4a8f-a45e-b48d0b771220 Croatia | |
| 7b2c159d-7394-41e1-bbf6-6344accbf7a2 Greece | |
| 150c94db-4c9d-4102-a33b-8868feac2054 Norway | |
| df7e76b4-b582-4879-a15d-8317c077c80f France | |
| 8525c322-10a1-4ac9-af87-8ec76126be49 Germany | |
| b8df460c-8885-44a2-b042-027d146439e0 Netherlands | |
| 18343d3b-4c67-4e89-87a5-e4ac4aa576be Sweden | |
| 7344e914-d629-4d59-9b80-71aacaa8ff58 Germany | |
| 7b2c159d-7394-41e1-bbf6-6344accbf7a2 Greece | |
| 12a6339c-4041-4815-aaa5-2407242b1492 Portugal | |
| e9e1cc97-f167-4407-8ee8-b33399511840 Poland | |
| 0dcd5c7e-f83d-4111-987d-c5537aa373ab Poland | |
| 853ecdc1-f881-494f-a8df-d6cf0603d542 Germany | |
| 7344e914-d629-4d59-9b80-71aacaa8ff58 Germany | |
| 90a14609-b7eb-4512-a4df-7b25e81f7dbf Germany | |
| 3bfea360-be89-4e3f-af2d-f9c96f633e75 France | |
| 3a968a0b-8828-4bcc-8664-4a872086c9ef Hungary | |
| 6a8faab2-5c4d-44a9-bf8a-4a88f56f0a28 Spain | |
| 1bd6c25a-f154-4f2d-9309-f60c820403c4 Sweden | |
| 3a511941-896a-402d-91e8-98f266350b31 Poland | |
| df7e76b4-b582-4879-a15d-8317c077c80f France | |
| 18343d3b-4c67-4e89-87a5-e4ac4aa576be Sweden | |
| 90a14609-b7eb-4512-a4df-7b25e81f7dbf Germany | |
| 795cb35e-c403-4a8f-a45e-b48d0b771220 Croatia | |
| 31f8906e-2481-45be-adb4-5d68fa857187 Czech Republic | |
| b8df460c-8885-44a2-b042-027d146439e0 Netherlands | |
| cab7bd15-10f3-4844-bacc-2046615291a3 Estonia | |
| 3a968a0b-8828-4bcc-8664-4a872086c9ef Hungary | |
| 7250957f-c59d-4dda-9848-3a9c92fa70d5 Belgium | |
| 12a6339c-4041-4815-aaa5-2407242b1492 Portugal | |
| a7257939-346c-45bb-9de6-33853b28efa1 Bulgaria | |
| 5645fd65-57ed-4145-bf08-21220a3a9e22 Hungary | |
| cab7bd15-10f3-4844-bacc-2046615291a3 Estonia | |
| 3bfea360-be89-4e3f-af2d-f9c96f633e75 France | |
| 853ecdc1-f881-494f-a8df-d6cf0603d542 Germany | |
| 31f8906e-2481-45be-adb4-5d68fa857187 Czech Republic | |
| ec7a910f-ae62-4c43-a885-d6c5d3749759 Belgium | |
| 368f448d-ae4a-475c-b47b-31c805442f91 Finland | |
| e9e1cc97-f167-4407-8ee8-b33399511840 Poland | |
| 5645fd65-57ed-4145-bf08-21220a3a9e22 Hungary | |
| f042971e-9f18-4aeb-a519-6cb84f892698 Germany | |
| 1bd6c25a-f154-4f2d-9309-f60c820403c4 Sweden | |
| 150c94db-4c9d-4102-a33b-8868feac2054 Norway | |
| ec7a910f-ae62-4c43-a885-d6c5d3749759 Belgium | |
| 5ebcceef-e9a8-4ff8-b56b-3c64c756c926 Denmark | |
| a7257939-346c-45bb-9de6-33853b28efa1 Bulgaria | |
| 8525c322-10a1-4ac9-af87-8ec76126be49 Germany | |
| 6a8faab2-5c4d-44a9-bf8a-4a88f56f0a28 Spain | |
| 368f448d-ae4a-475c-b47b-31c805442f91 Finland | |
| 7250957f-c59d-4dda-9848-3a9c92fa70d5 Belgium | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE410DRFF000XXX |
| E-Number (Norway) | 4380830 |
| EAN | 8056221014380 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014380 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 10000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1500.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
